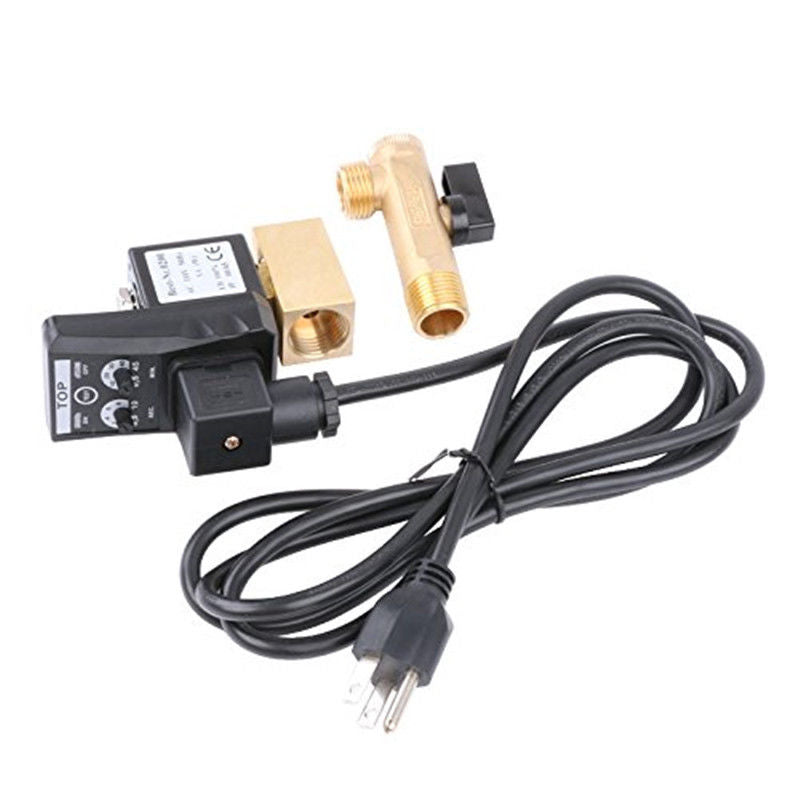

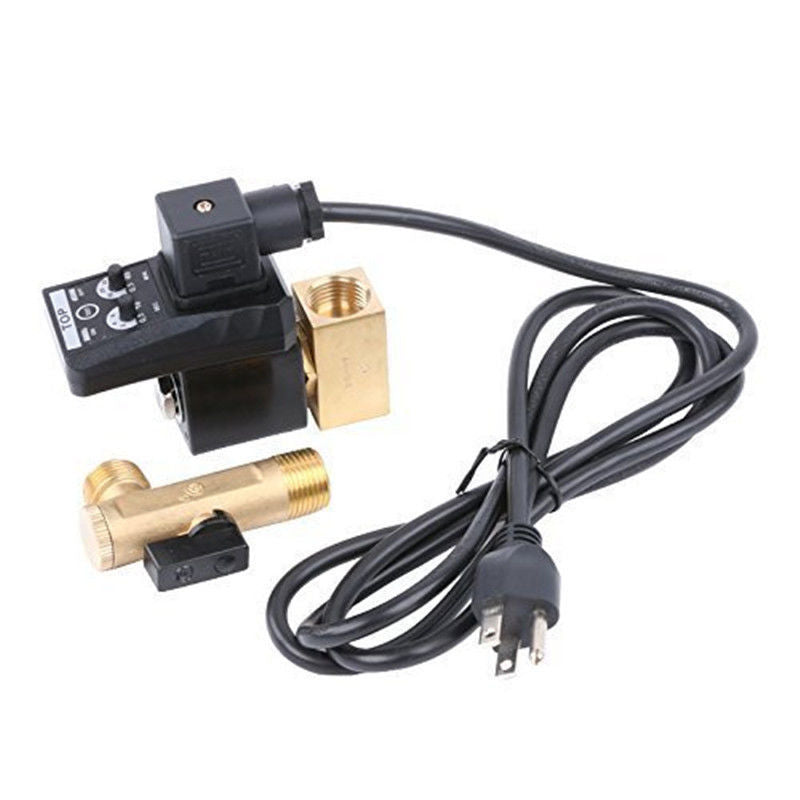

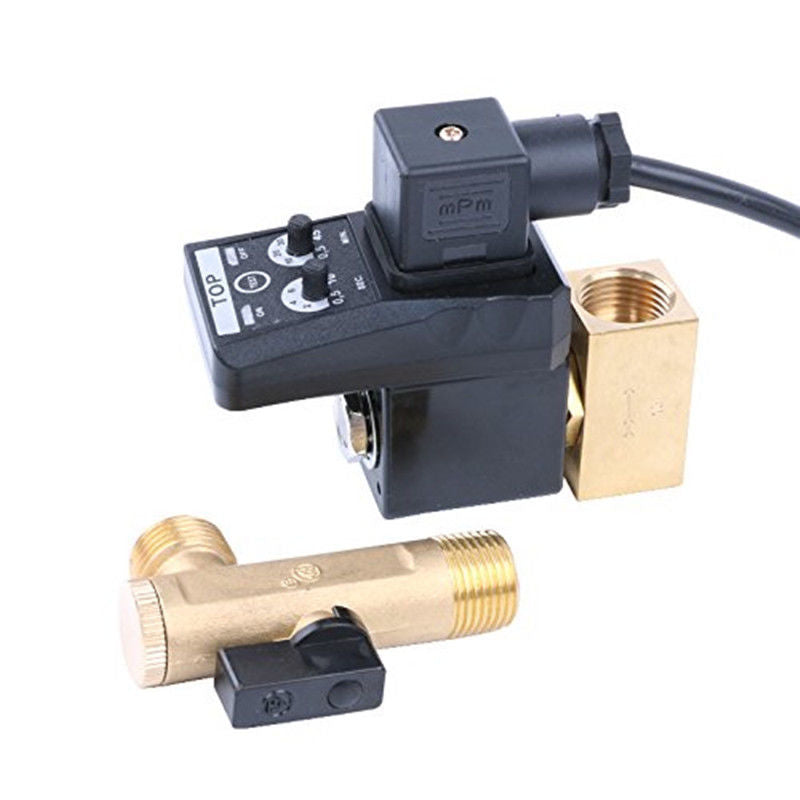

Automatic Digital Power Timer Air Tank Water Moisture Drain Valve for Compressor

Feature:
Easy to install, fully automatic operation
Equipped with a ball valve filter, split with drain valve, an L-shaped structure
Voltage: AC110V 50Hz
Voltage range: 10%
Time interval (OFF): 0.5--45 minutes (adjustable)
Discharge time (ON): 0.5--10 seconds (adjustable)
Manual test button: Yes(micro switch)
The current consumption: Max 4mA
Ambient temperature: -40 DegC to 60 DegC.
Protection grade: IP65
Shell material: Flame retardant ABS plastic
Electrical connection: DIN43650A
Indicator lamp: LED indicating power on / off
Type: two-way direct-acting valve
Flow aperture: 5 mm
Insulation class: H
In / out port size: 1/2"
Maximum working pressure: 1.6Mpa
Maximum temperature: 90 DegC
Valve material: Forging brass
Power Cable With 3PIN US Plug. about 1.8m Length
Package includes:
1 x DRAIN VALVE With Power Cable
