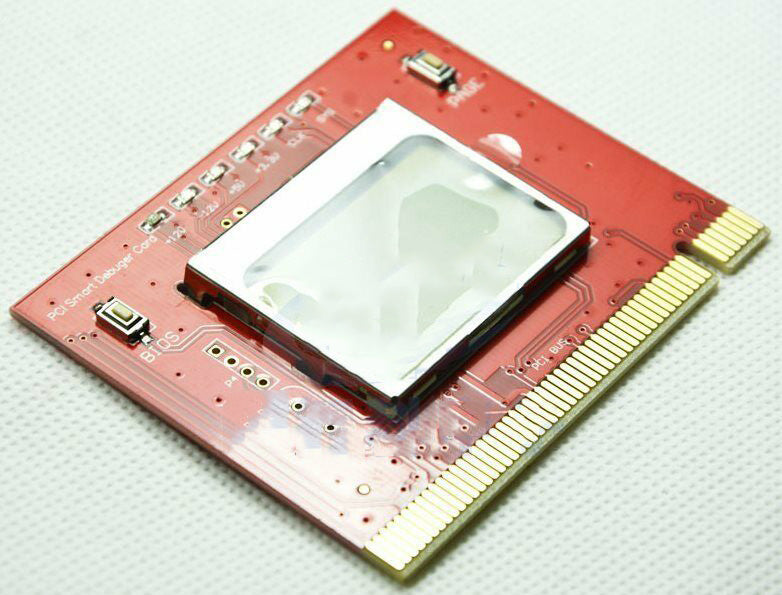

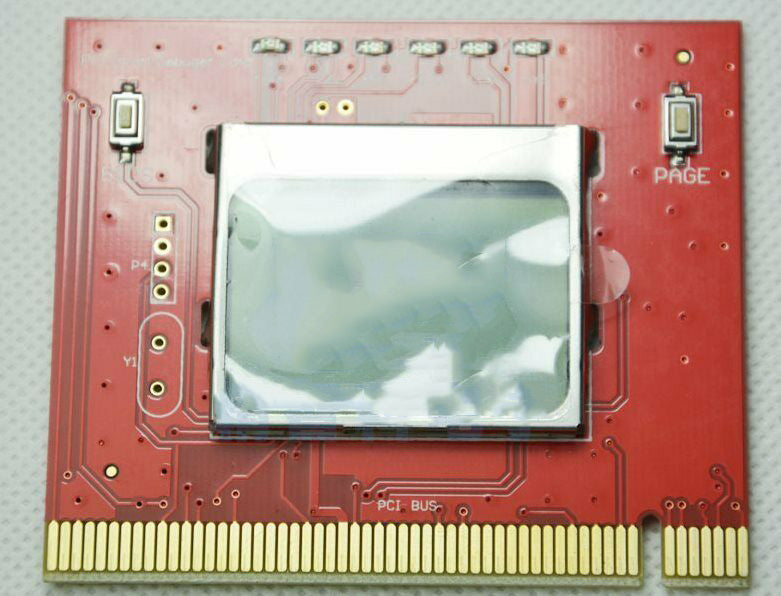

PC LCD Display Screen PCI Mainboard Motherboard Diagnostic Post Code Card Tester

Description:
It can diagnosis the motherboard signal which show the problem of CPU, Memory, display card and so on.
Intelligent analysis of the code corresponding to the cause of the malfunction, and gives diagnostic program!
It can display the halting execution automatic with a couple of times.
LCD displays shows diagnosis result of motherboard. Especially helpful to pinpoint where is the problem when power on the computer and find no display or machine hang. PCI bus reset and CLK signal working indicator.(When indicator LED is on to indicate its respective signal is fine.)
Compatible with Phoenix, Award and AMI Bios motherboards which has the PCI bus slot.
Back light POST code display - User can readout the POST on LCD easily to view POST code even under dark place.
Specifications:
Working in PCI bus
Backward Button: Check the current POST Code and the previous POST Code
Power source working indicator: +5V,+12V,+3.3V ,-12V, RST, Frame and Irdy
Back light POST code display
Refer to what kind of BIOS of your PC , set the appropriate jumper, insert the PCI diagnostic card slot and then turn on the power
Color: Red
How to use it?
1. Insert the card to the motherboard
2. Power on the computer. then Press the switch for about 5 seconds, you will see the bios information display on the LCD screen, if it is not the right one, press the switch for seconds again, it will display the next bios information, still not the right one, press the switch again to check it next one, till you get the right one

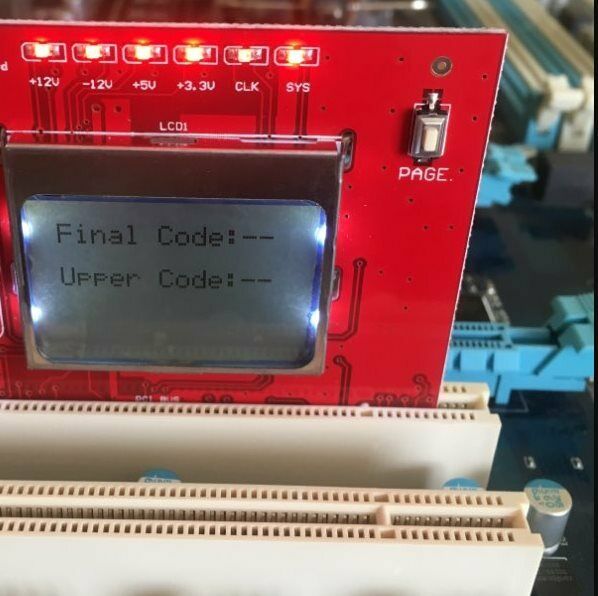

3. When the bios model is correct, it will test your motherboard automatically and show the error code and detail information on the LCD screen
Package:
1 x PCI LCD Display Diagnostic Card Tester
