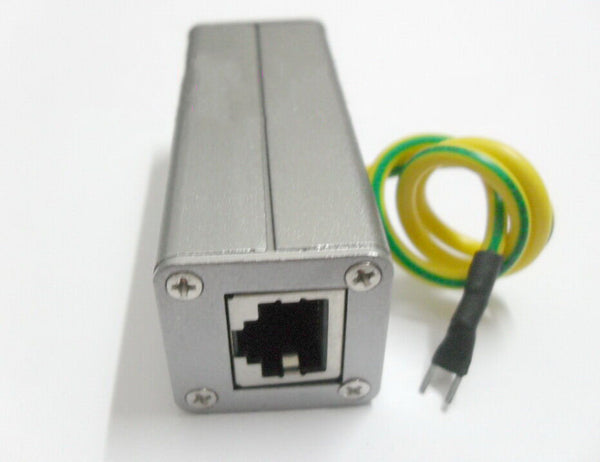

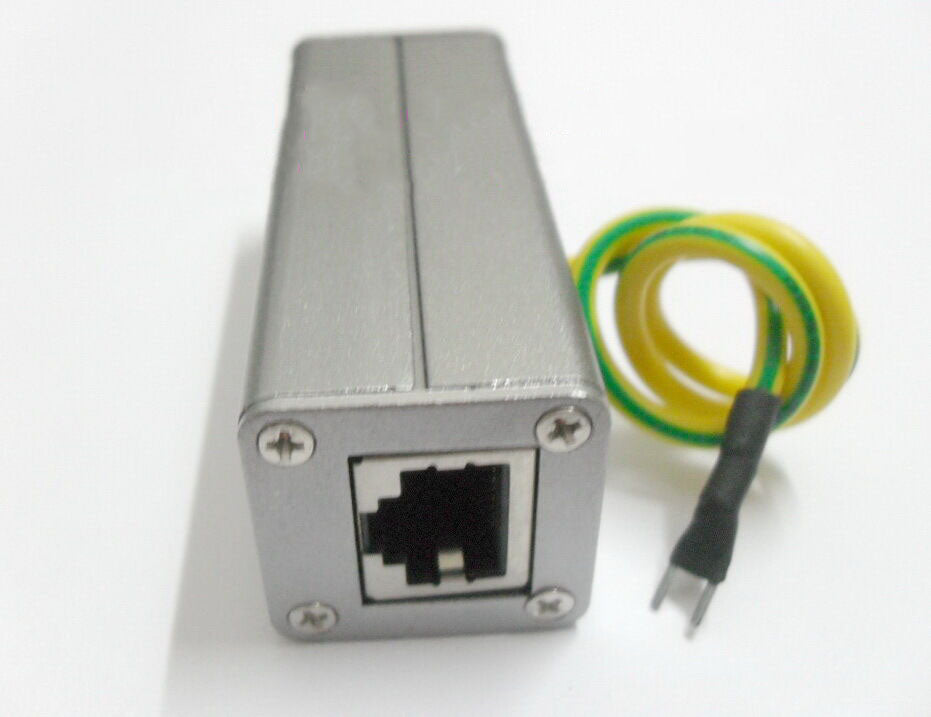

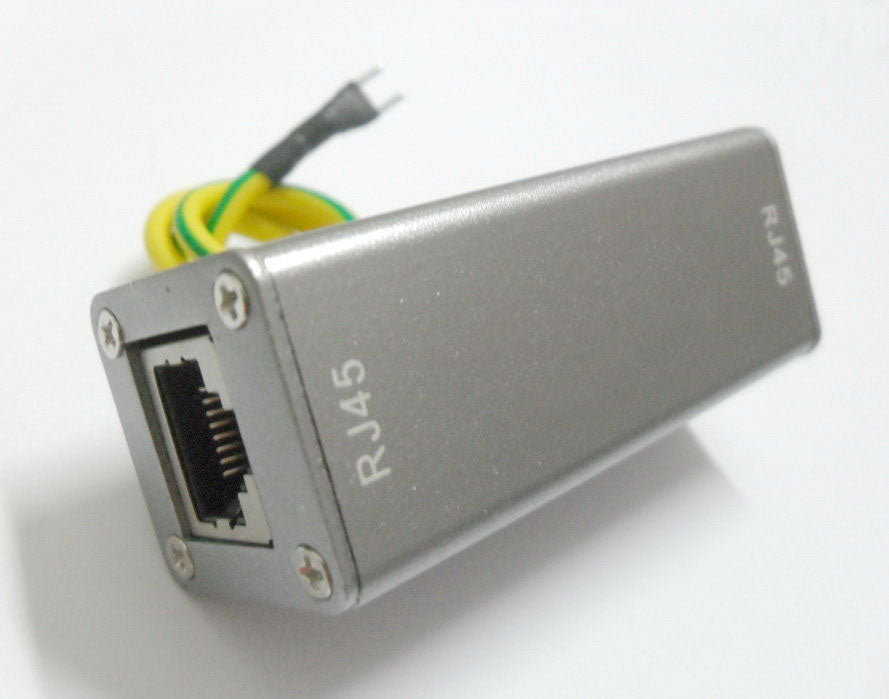

RJ45 Network Ethernet LAN Lightning Thunder Surge Protection Arrester Adapter

Description:
The RJ45 series communication electricity wells up the protector is wells up protector's modular design based on the IEC communication electricity to use in the computer network signal, communication lines' electricity welling up the protection product, the product connection form for the standard RJ45 quartz attachment, may protect 1 pair of /2 pair of /4 pair of communication lines. Installs the maintenance great convenience. The reaction time is the picosecond level, and protects fully uses the newest semiconductor device's equipment, is most suitable in view of the different line choice.
Specification
Nominal voltage VN: 5V
Most greatly continually control voltage UC : 8V
Nominal discharging current(8/20) IN : 5KA
Protection rank UP : <45V
Earth way: Earths directly through the segment
Insertion loss AE: <0.5db
Data transmission speed: 100Mbps
Port connection mode: RJ45 Port
External dimensions: 75x25x25mm
Operating temperature scope: -40 Celsius~+70 Celsius
Carries out the standard: GB18802.12/IEC61643-21
Notice:
The grounding must good and straight
Positive and negative line do not certainly meet counter-or meets wrong
Anti-radar in 1 meter is been nearer by the protection device front end is better
Please clear the normal voltage, it will reduce the product protective value with the wrong product
Installed in water-proof box in outdoor.
Package:
1 X Lightning Surge Protection Device ST-RJ45 Ethernet LAN Surge Arrester
