Wearable Android USB Bluetooth Wireless Handheld 2D QR Bar Code Barcode Scanner
2D Bluetooth Wearable Ring-style Barcode Scanner is a powerful new generation barcode scanner with small size and charming appearance. it can read 1D and 2D barcode. It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy package to the desktop for scan, it will save more time and physical strength. Compare with common wired handheld scanner, UL-FS02 can increase 15%-30% productivity!
The wearable ring scanner enable operator to move package , products and materials, helping to increase more efficiency, It is very comfortable to wear it in whole working day, with high performance laser scan engine, even poor printed barcode can be read. The rugged rubber shell makes daily use reliable even in the roughest environments.
The wireless function allowing unparalleled freedom for movement in scanning, it can be avoid drop down and damage scanner when you wearing on the finger. Super Class2 Bluetooth technology and long range 2.4G antenna make you transfer data with 20M distance. You never need add more headcount to finish more work equip with wearable ring-style scanner. At the same time, we provide RS232 and USB version to connect PC and Electronic label shelf

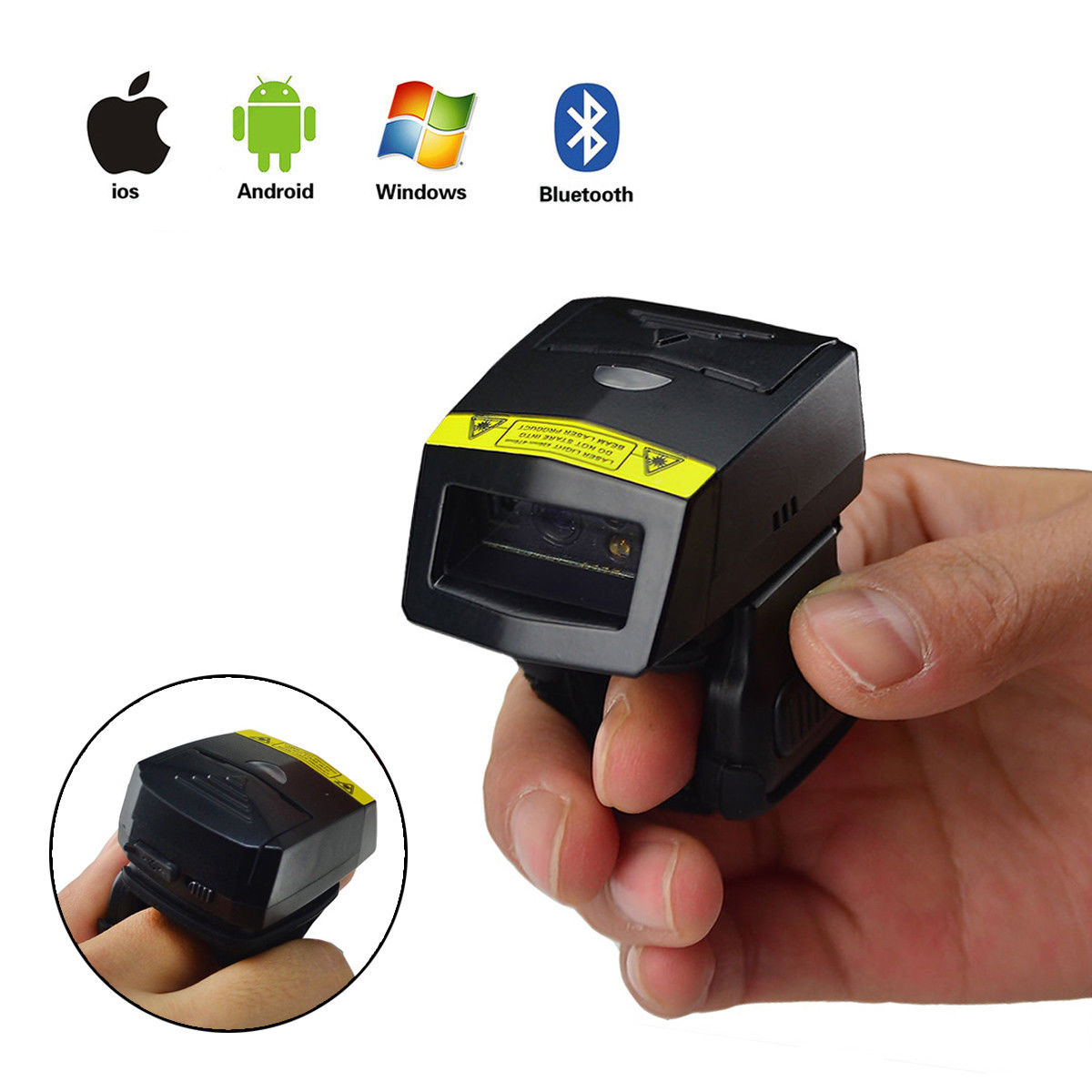

It can connect with iOS and android smart phone easily. Special design Bluetooth protocol, you can scan barcode into support Bluetooth HID Drive directly without install any software, double push trigger button, you can display and hide soft keyboard in iOS.
Main parameters
Wearable Ring 2D Laser Scanner

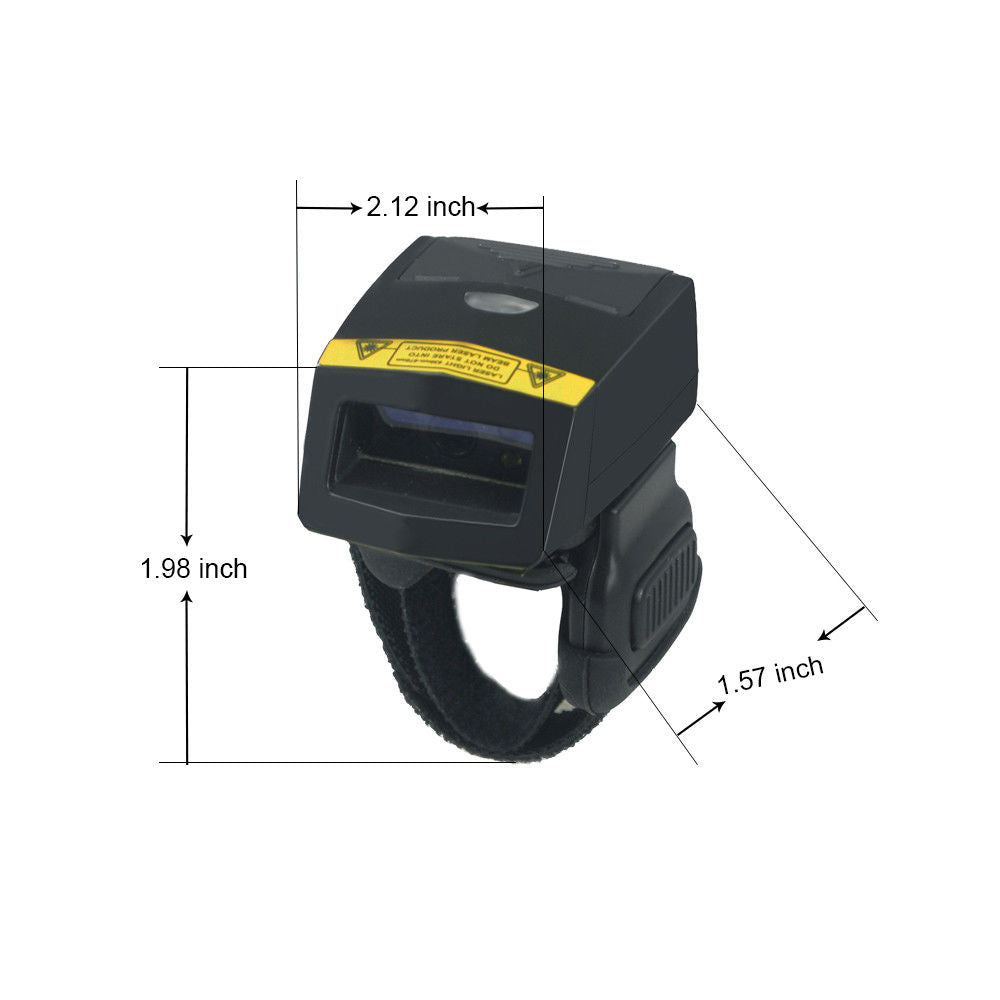

Mechanical: Length:53.9mm, Width: 40.0mm, Height:50.3mm
Weight: 60g
Electrical: Power: DC5V Typical: 75mA DC5V
CPU: 32bit ARM CPU
Data storage: 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode: Bluetooth mode, USB mode, offline mode and RS232 mode(optional)
Scan mode: Manual mode, Continuous, Host, Sense mode
Ambient illumination: 0~100,000 lux
Scanner performance
Sensor Type: 752x480 CMOS
Light: RED LED 625+/- 10nm
Scanner Rate: 30 times
Scanner Angle: +/- 50 Deg,+/- 50Deg,+/- 360 Deg(skew, pitch, Roll)
View angle: horizontal: 36¢X, Vertical: 23¢X.
Contrast: > 30%
Reading accuracy: > 5mil

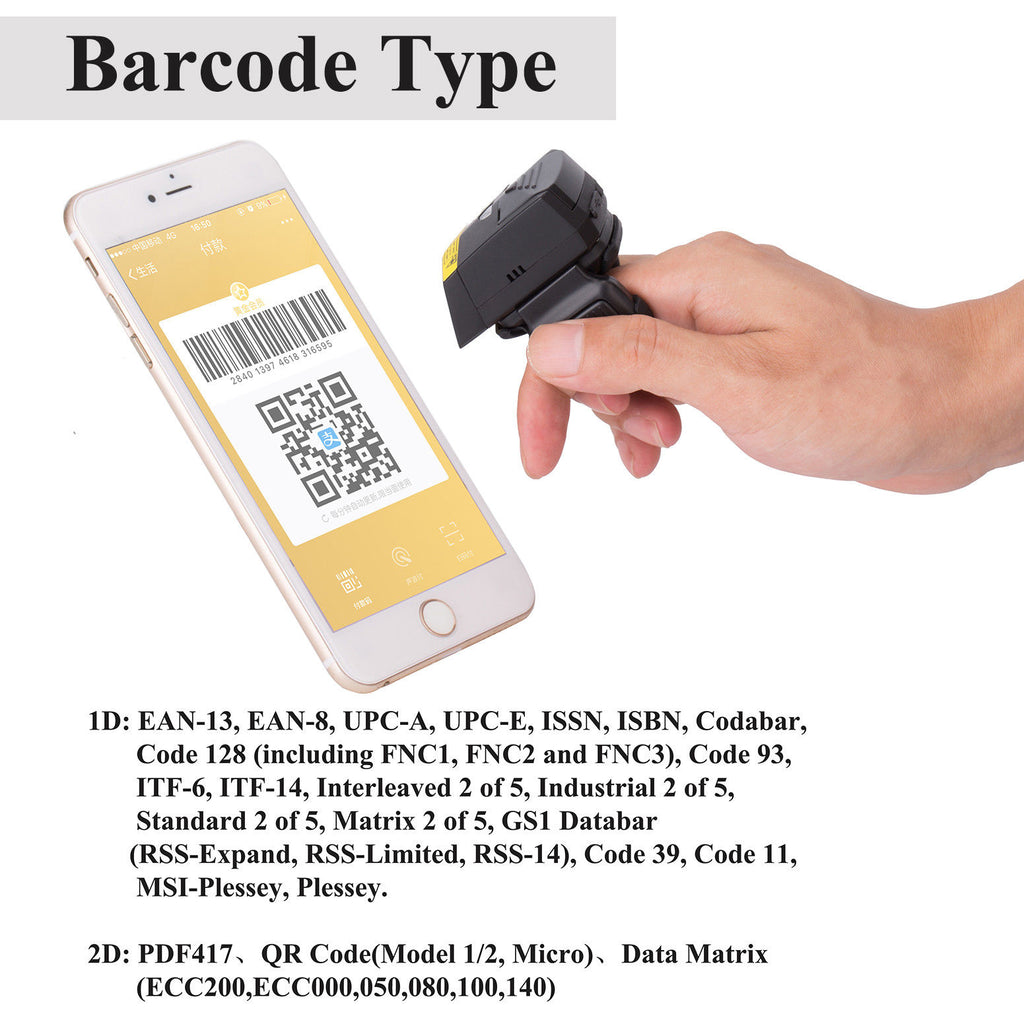

Barcode Type
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. 2D: PDF417,QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)
Decoding depth & Max. resolution:
(1 mil = 0.0254 mm)
UPC-A (13mil): 55mm - 270mm
Code 39 (20mil): 50mm - 340mm
PDF 417 (6.67mil): 70mm - 165mm
Data Matrix (10mil): 55mm - 180mm
QR Code (20mil): 35mm - 275mm
Communication: Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)

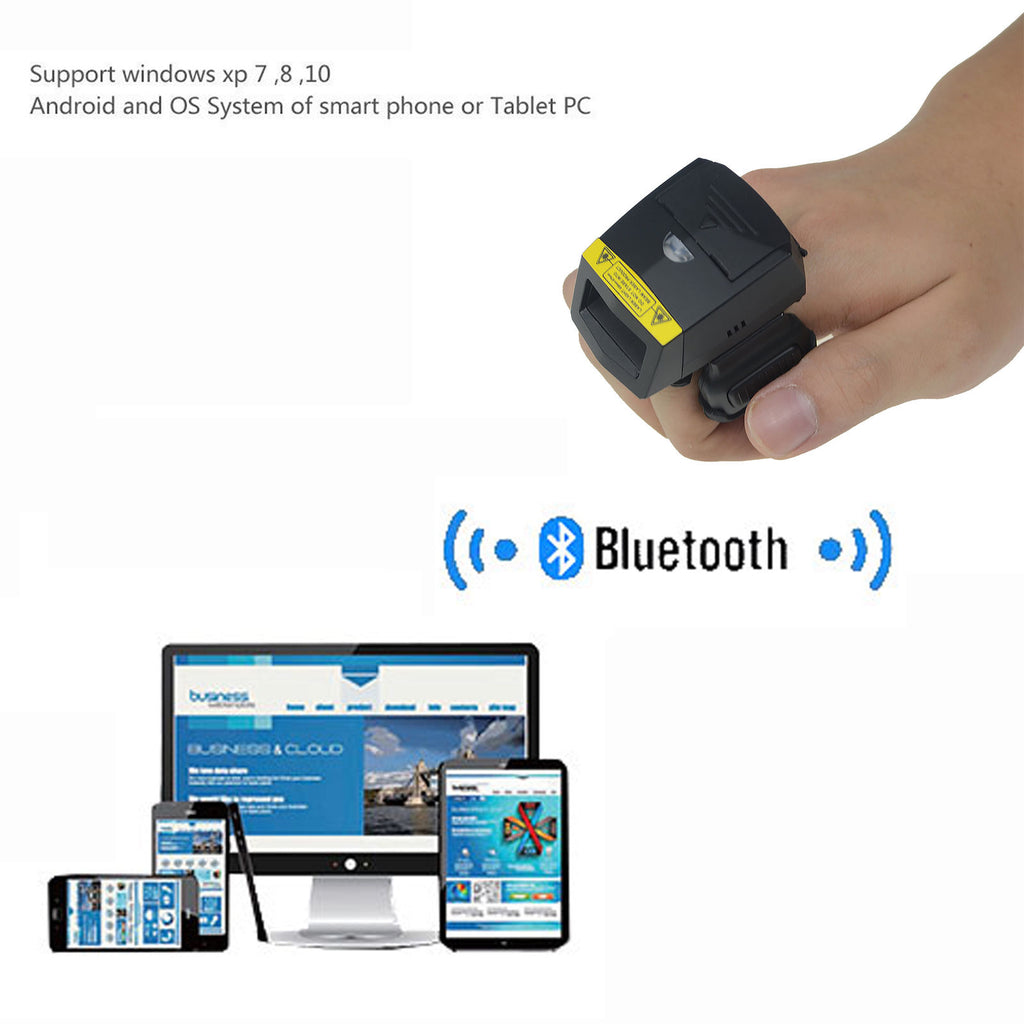

OS : IOS, Android, Windows, Mac
Laser safety : IEC60825-1-2007, Class 1
Package:
1X Ring-style Barcode Scanner

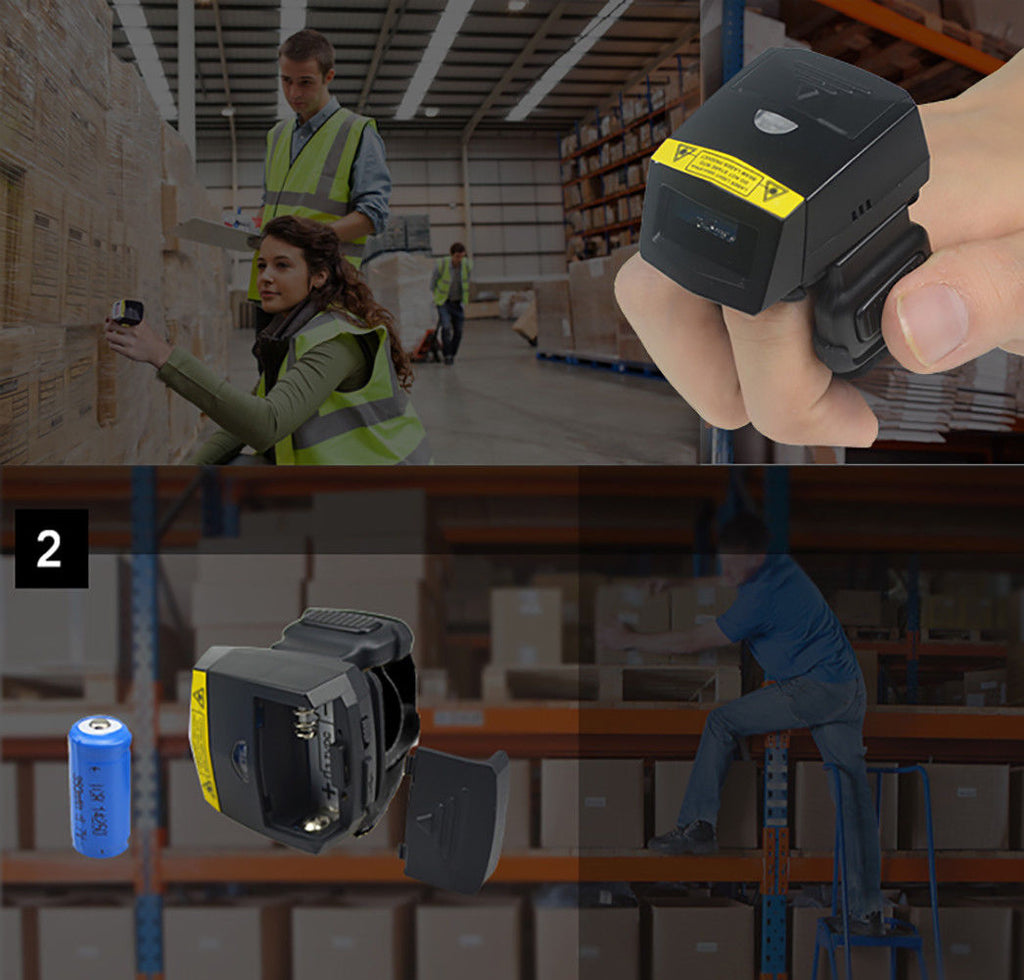

1X 3.7V 14250 Li-ion battery:
1X Velcro:
1X Silicone Case:
1X USB cable
