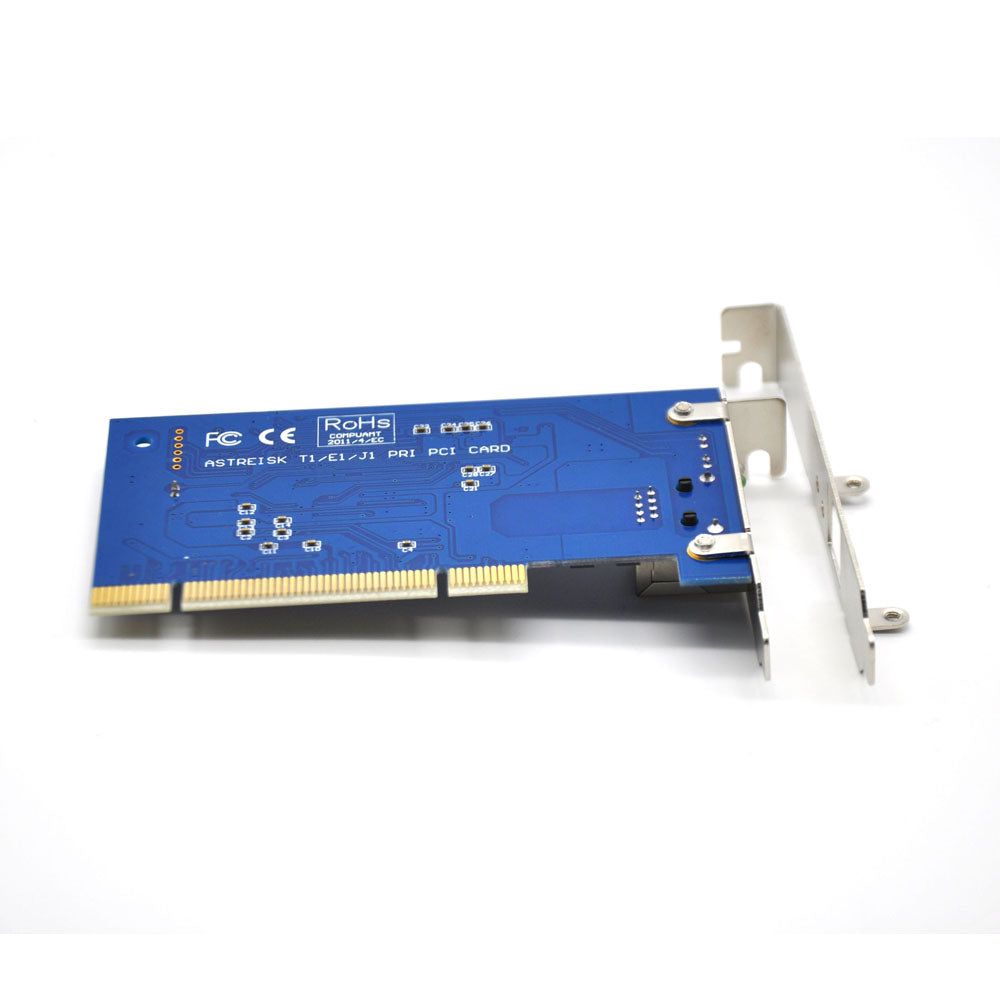

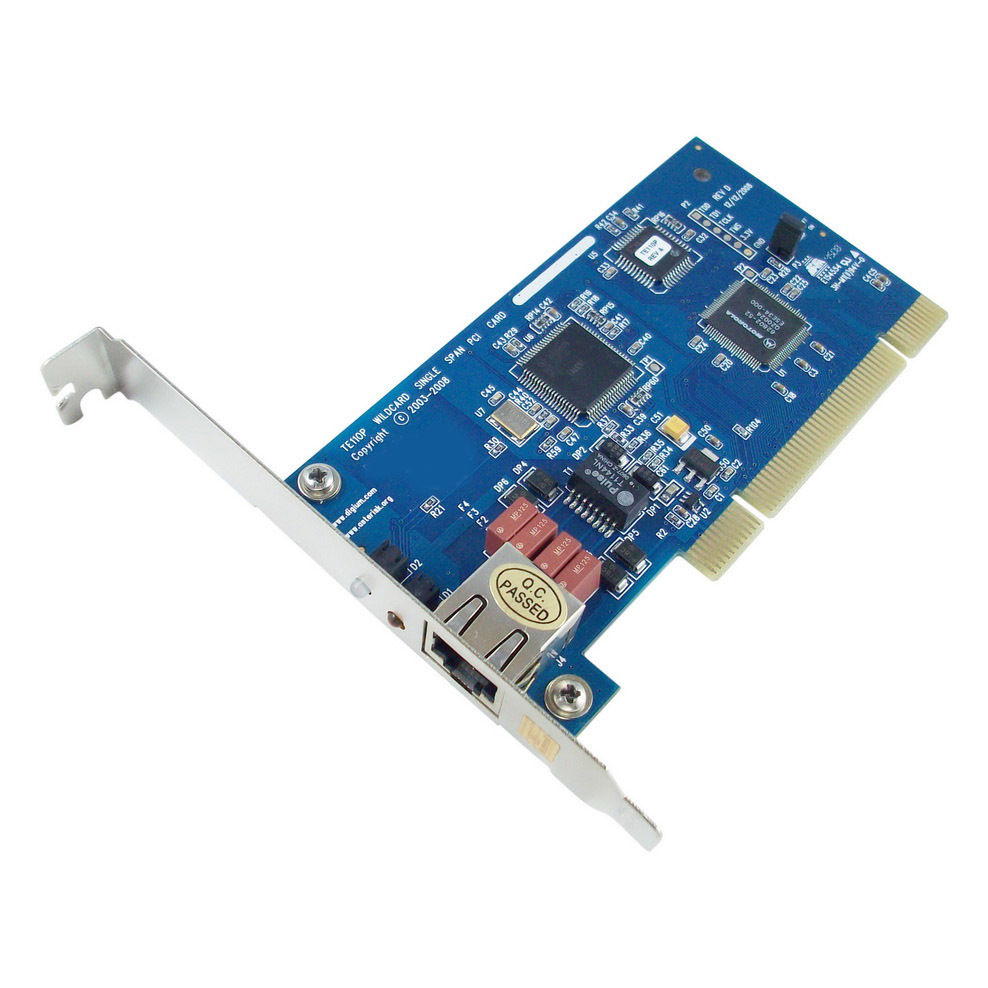

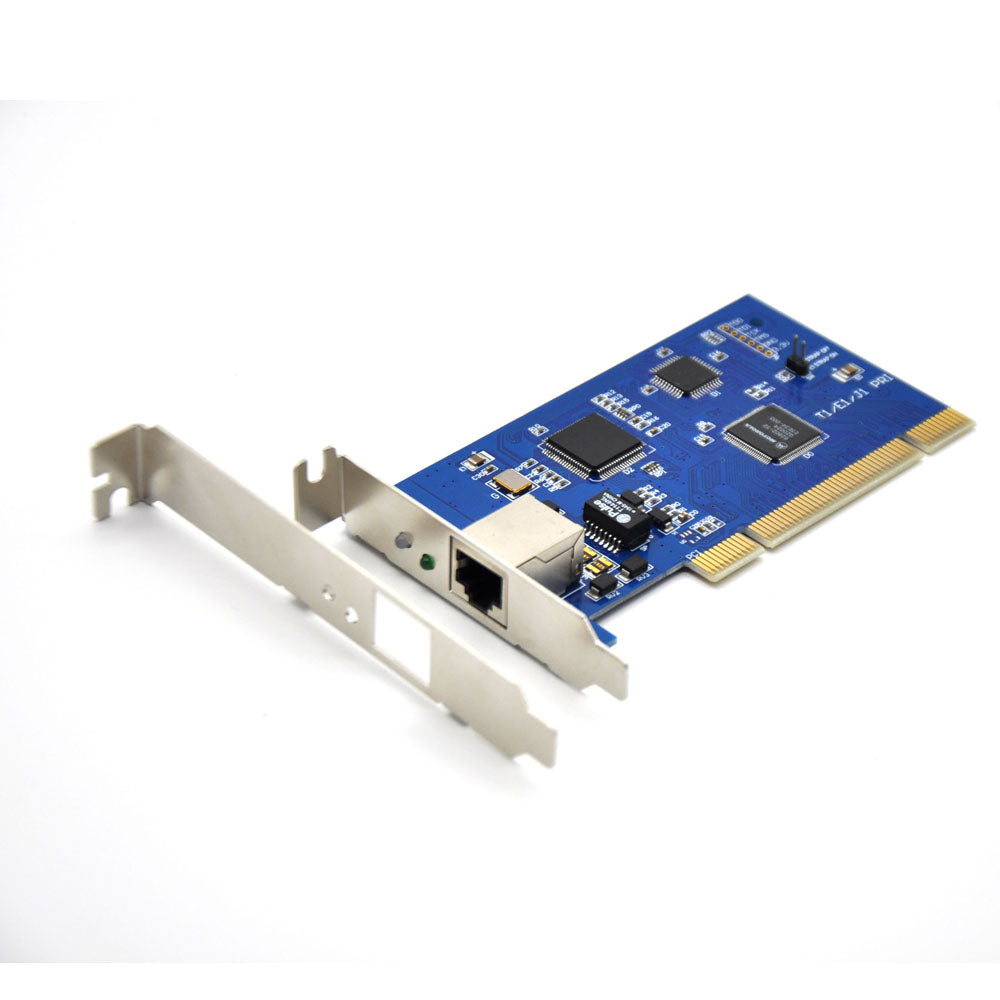

1 Port Channel E1 T1 J1 ISDN PRI PCI PC Card for Asterisk PBX VOIP IVR network
This is a single span, selectable E1 (32-channel) or T1 (24-channel) card . The card can be used to deliver a wide range of PBX and IVR services to the network or handset including Three-Way Calling, Call Conferencing, Voicemail ,and VoIP Gateways.
Key benefits
--Create a wide range of ISDN PRI PBX
--ISDN least cost router
--VoIP integration of ISDN equipment
--Call center
Key features
--Work on Asterisk/Trixbox/Elastix
--Support zaptel / Dahdi driver
--Single span E1/T1/J1 card
-- ISDN PRI protocol
--Support SS7
--PBX to PBX trunking
--VoIP Gateways
--IVR services
--Three-Way Calling
--Call Conferencing
--Voicemail
specification
1)configuration & interface
--1 * E1/T1 interfaces ( E1/T1 selectable)
--One PRI port 30 channels
--Hardware DTMF detection
--Conference Bridge
--PCM bus connectors (PCM30, PCM64, PCM128)
--Active channel switching (across multiple cards over the external PCM bus)
--PRI ISDN protocol stack
--Suitable for 3.3 volts and 5.0 volts 32 bit PCI 2.2 slots
2)Data Modes
--Cisco HDLC
--HDLC
--PPP
--Multilink PPP
--Frame Relay
3)Voice Modes:
--PRI CPE & PRI NET
--NI1
--NI2
--EuroISDN
--4ESS (AT&T)
--5ESS (Lucent)
--DMS100
4¡^E&M
--Wink
--Feature Group B
--Feature Group D
5¡^FXO & FXS
--Ground Start
--Loop Start
--Loop Start with Disconnect Detect
6)dimension
--Size(mm): 122*63.5*18mm
Elastix hardware detector
# dahdi_test
Opened pseudo dahdi interface, measuring accuracy...
99.986% 99.971% 99.982% 99.982% 99.983% 99.979% 99.984% 99.982%
99.984% 99.976% 99.988% 99.982% 99.983% 99.982% 99.982% 99.982%
99.986% 99.981% 99.984% 99.981% 99.982% 99.981% 99.982% 99.983%
99.982% 99.982% 99.981% 99.982% 99.983% 99.982% 99.981% 99.982%
# dahdi_genconf
# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): oslec
Configuration
Channel map:
SPAN 1: CCS/HDB3 Build-out: 0 db (CSU)/0-133 feet (DSX-1)
Channel map:
Channel 01: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 01)
Channel 02: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 02)
Channel 03: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 03)
Channel 04: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 04)
Channel 05: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 05)
Channel 06: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 06)
Channel 07: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 07)
Channel 08: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 08)
Channel 09: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 09)
Channel 10: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 10)
Channel 11: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 11)
Channel 12: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 12)
Channel 13: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 13)
Channel 14: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 14)
Channel 15: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 15)
Channel 16: D-channel (Default) (Echo Canceler: none) (Slaves: 16)
Channel 17: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 17)
Channel 18: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 18)
Channel 19: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 19)
Channel 20: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 20)
Channel 21: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 21)
Channel 22: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 22)
Channel 23: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 23)
Channel 24: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 24)
Channel 25: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 25)
Channel 26: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 26)
Channel 27: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 27)
Channel 28: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 28)
Channel 29: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 29)
Channel 30: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 30)
Channel 31: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 31)
31 channels to configure.
Package:
1 port PRI PCI card for Asterisk x 1 pc
