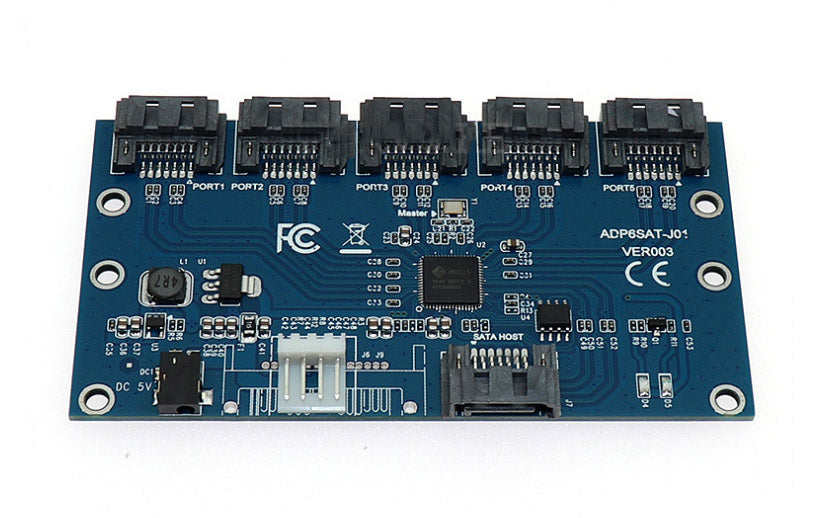

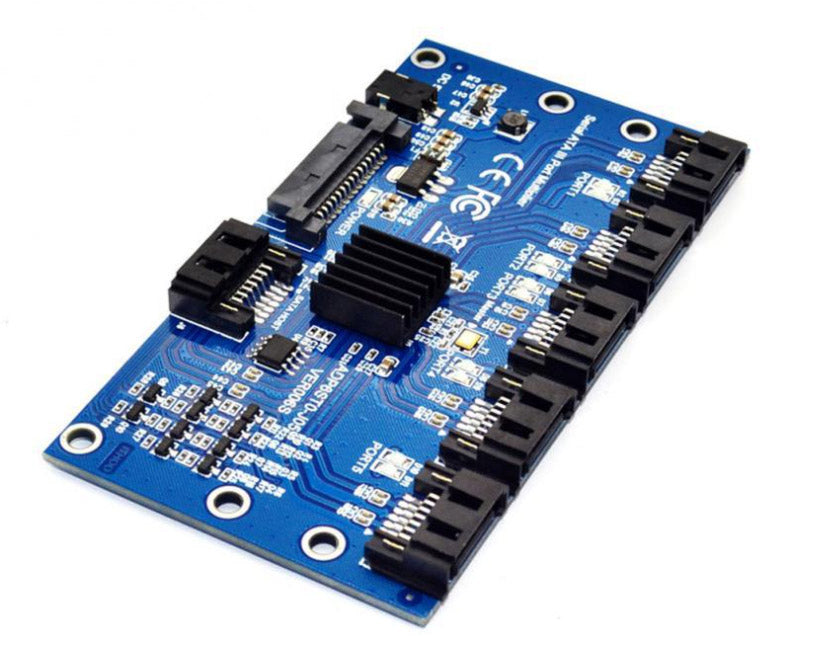

5 Ports SATA 3.0 III 6G Port Multiplier Board JMB585 CHIPSET with cable

This tool consists five SATA drives to a single SATA ports on a motherboard. Requires a motherboard supporting "Port Multiplier" devices.
Supports 6-port 6.0Gbps SATA III interface
Output swing control and automatic impedance calibration for SATA III PHY
Supports asynchronous signal recovery
Supports spread spectrum clocking
Supports partial / slumber power saving mode
Automatically speed negotiation
Supports BIST and loopback mode
Supports staggered spin-up (Optional)
Supports Hot-Plug
Supports asynchronous notification
Supports ATAPI drives
Supports command-based and FIS-based swit
Compliance
Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
Compliant with Serial ATA Port Selector Spec. Revision 1.0
Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 3.1
Compatibility:
Port Multiplier compatible motherboard,
Supported by any operating system (Windows, Mac, Dos etc ...), 100% hardware adapter,
Compatible with any SATA 1, 2 or 3 drive.
Characteristics :
JMICRON JMB585 CONTROLLER.
5 port SATA host adapter,
Serial ATA specifications 3.0 compliant,
Expands any "port multiplier" compatible SATA port to 5 SATA ports, works as a simple power strip!.
Compatible with FIS-based and command-based switching port multiplier devices,
Compatible with any type of SATA 1/2/3 disk or drive,
Auto-negotiation 1.5Gbps, 3Gbps and 6Gbps depending on the type of SATA device used,
NCQ compliant, Hot Plug.
Powered by 15-pin SATA connector or cord (supplied) connecting to a USB port.
WARNING: YOUR MOTHERBOARD MUST SUPPORT "PM" (PORT MULTIPLIER).

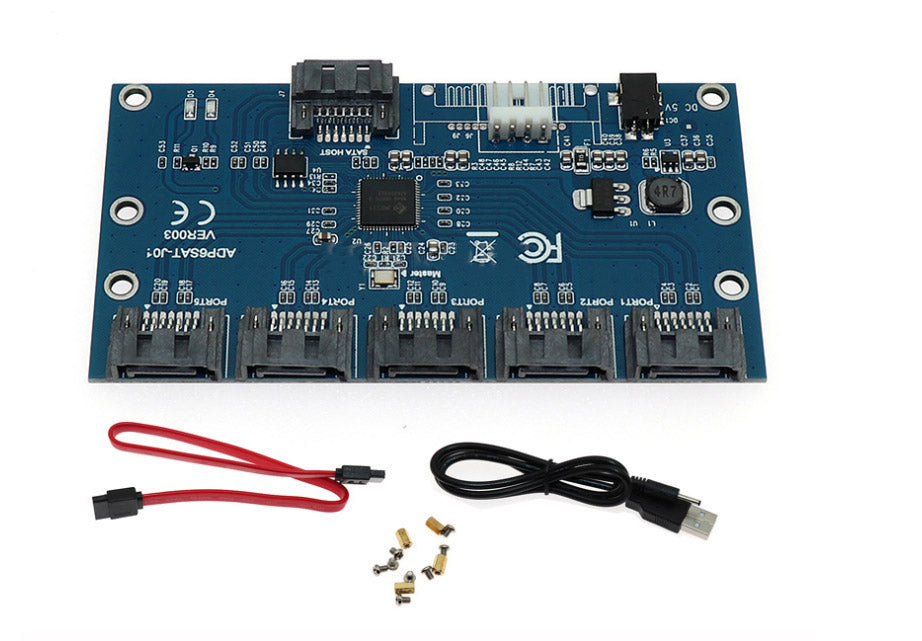

Package:
5 Ports SATA 3.0 III 6G Port Multiplier x 1 pc
