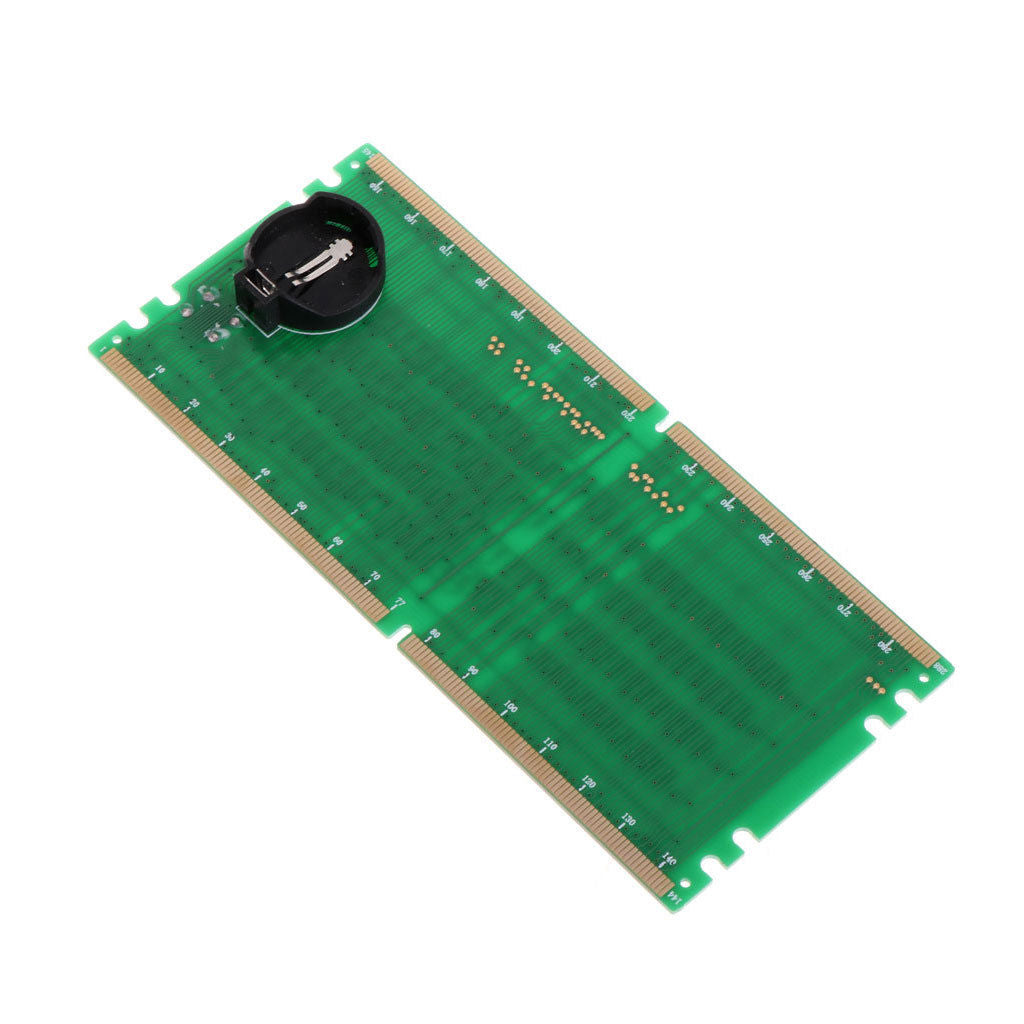

DDR4 DDR 4 Test Card RAM Memory Slot Desktop Motherboard Mainboard Repair Analyzer Tester

Description:

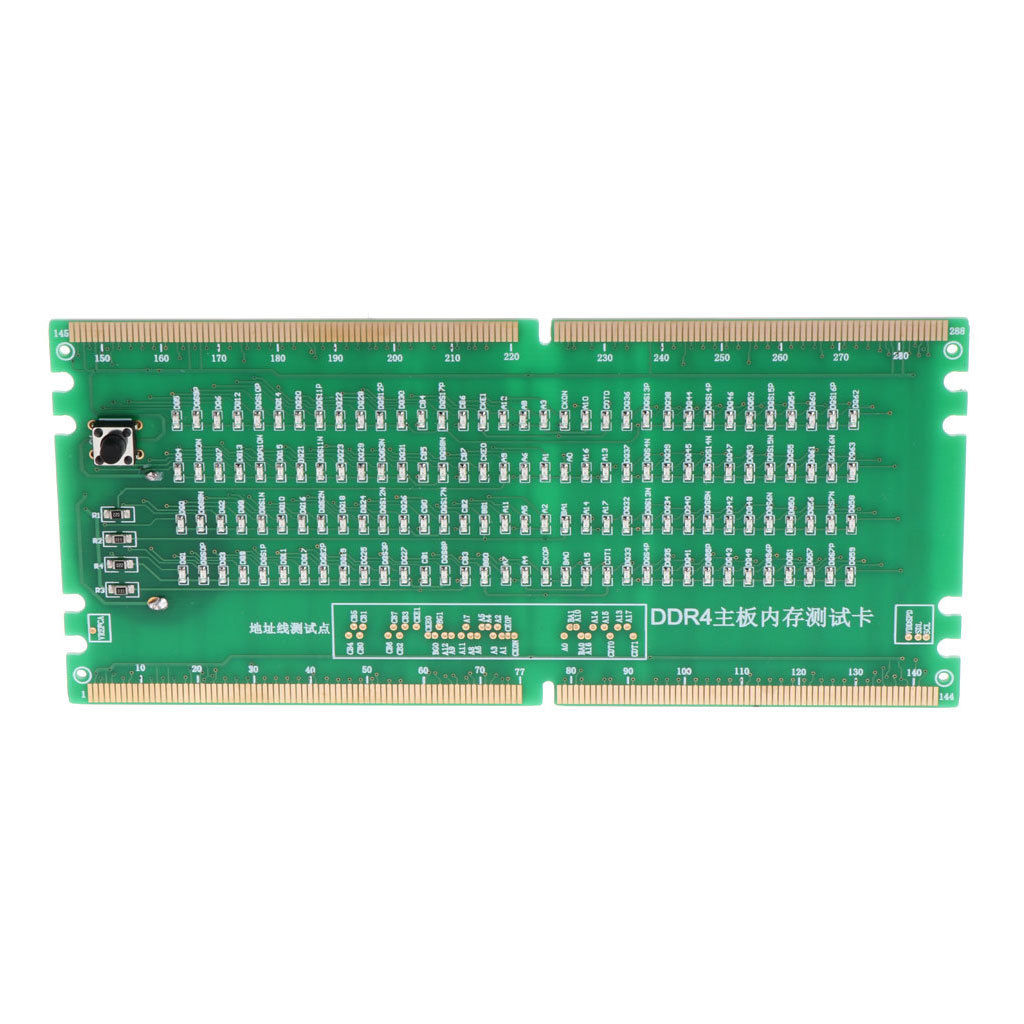

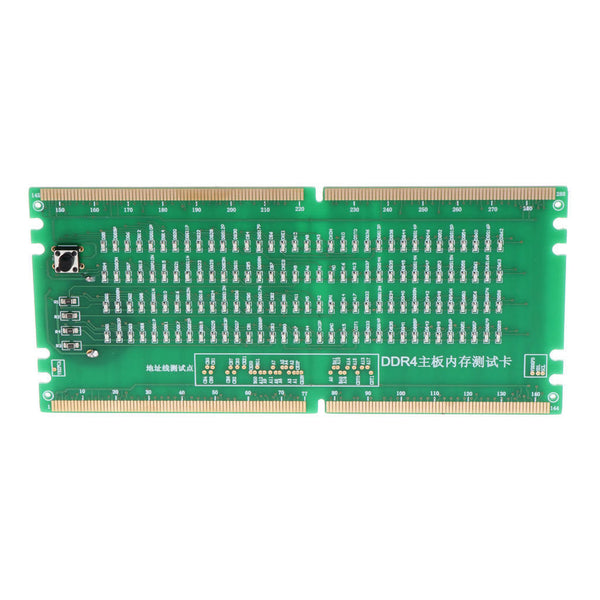

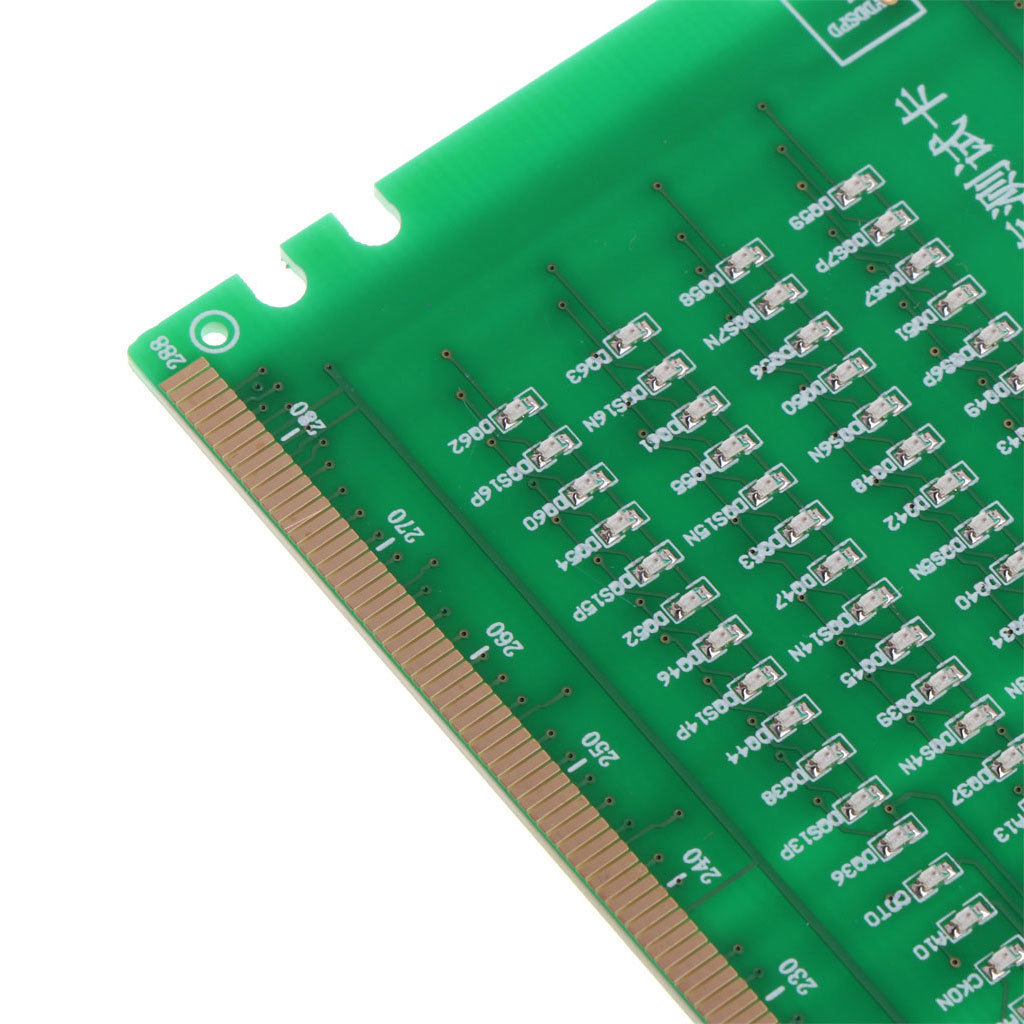

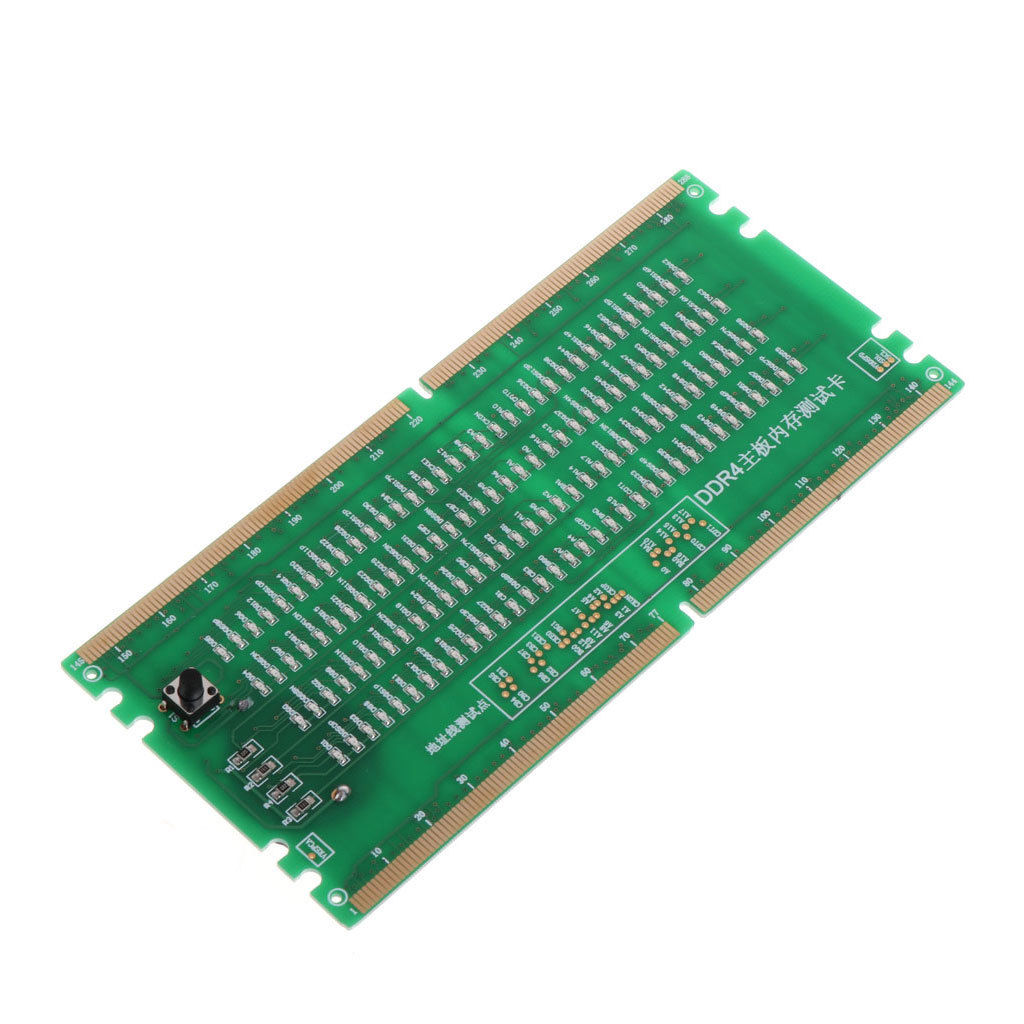

DDR 4 testing Card can support with INTEL, AMD all DDR4 interface board, using LEDs to indicate that the data line address line open circuit and short circuit, used to repair without power on, don't external display, don't read failure such as motherboard, memory is an essential tool for repair computer motherboard
Instructions:

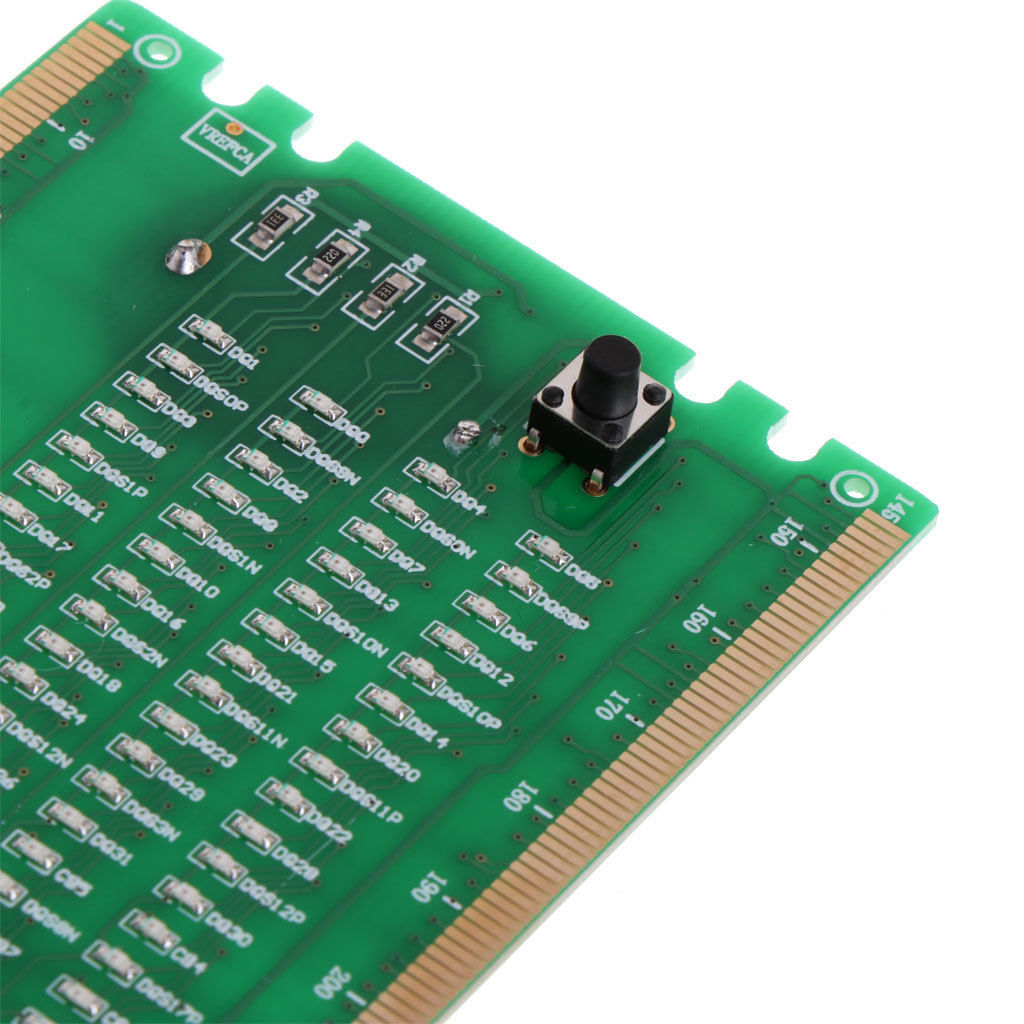

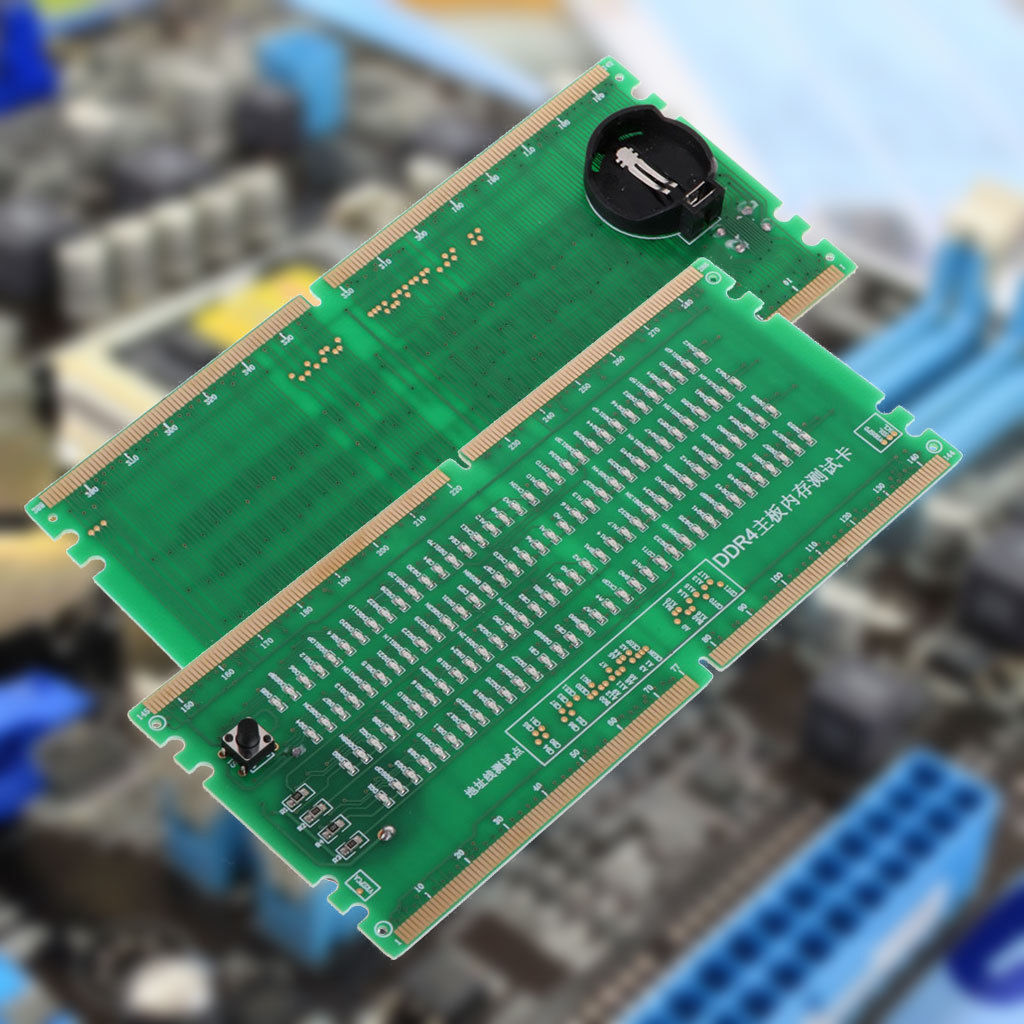

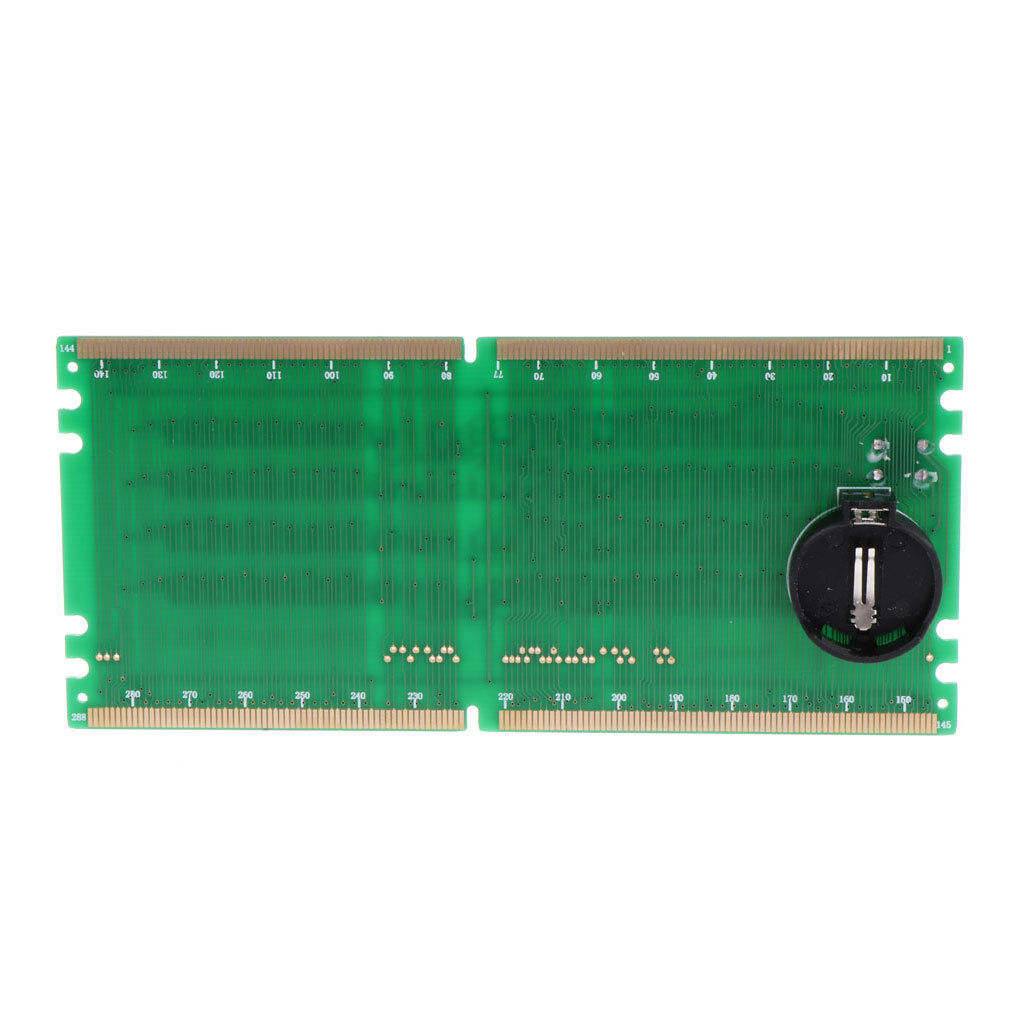

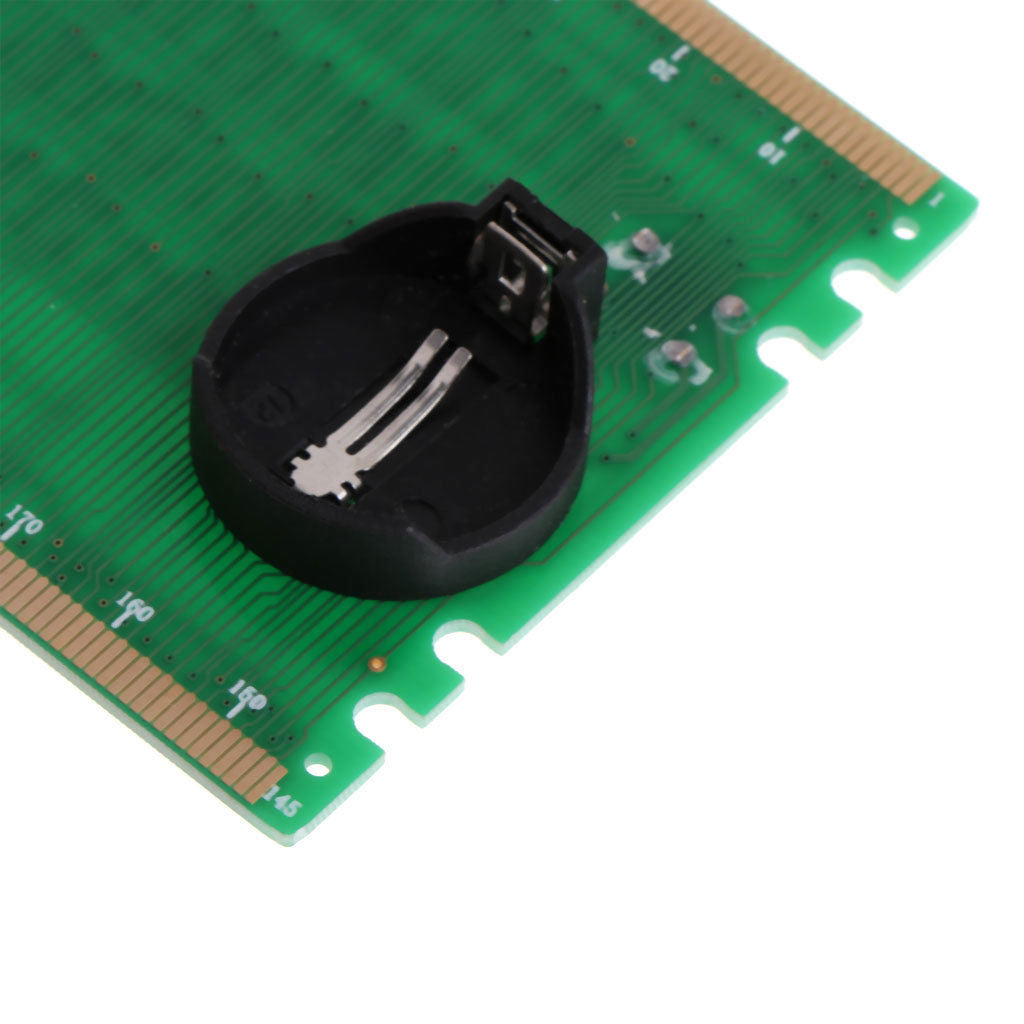

Insert battery (CR2032, 3V) into socket to the card and insert in the corresponding type motherboard, and then insert the CPU motherboard, presses the button switch, test card can judge motherboard memory part of open circuit, short circuit fault If a lamp is not bright, would check of memory and CPU holder or with short circuit, memory slot is damaged Like a light, bright, should check whether the signal and power supply circuit
Note:
1. DDR4 test card in the test, the motherboard must plug in CPU, test the LEDs will turn on, because the memory part of the signal is connected to the CPU.
2. After using several times, test the lights dimmed, the reason was that the test lamp battery voltage is not enough, please users to replace the battery
3. The signal of the tester, because each motherboard design of producers and chipset is different, some signals may show different, please use the same motherboard for troubleshooting

Specifications:
Application: Desktop
Quantity: 1 PC (1 pc of DDR4 Test Card only, other accessories in the picture are not included!)

Package includes:
1 x DDR4 Desktop PC Testing Card
