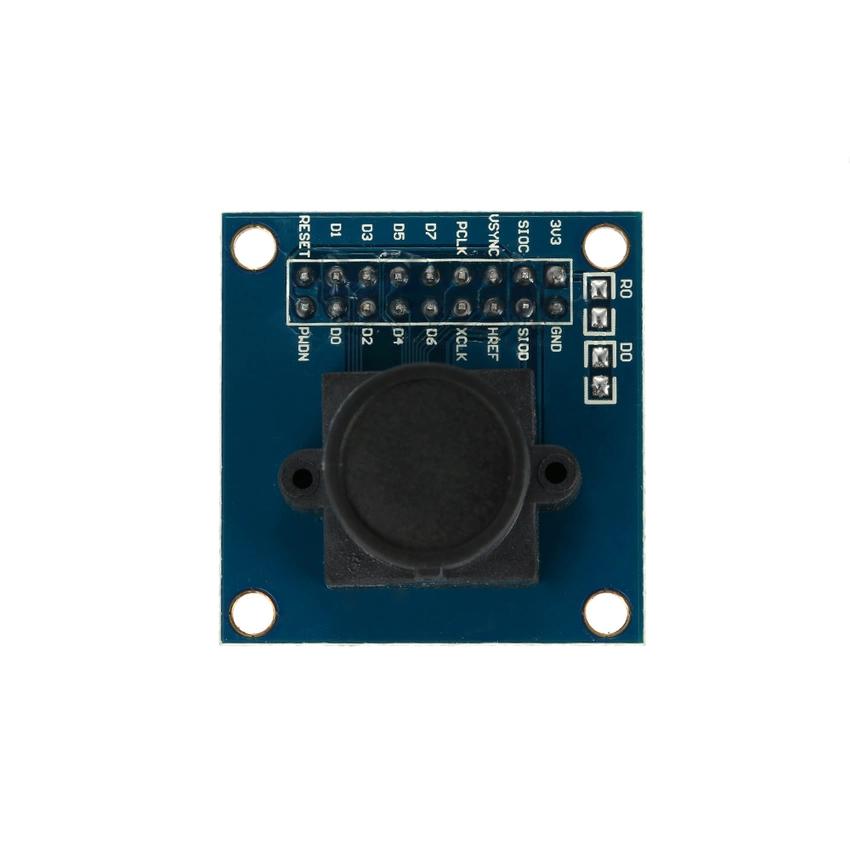

VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino
WT

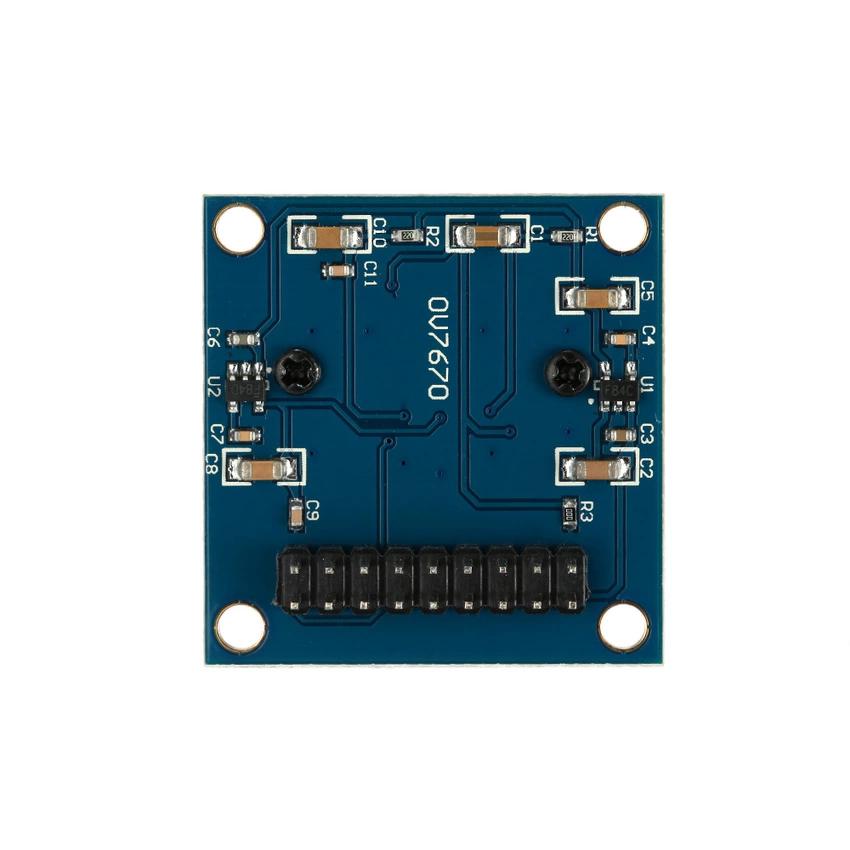

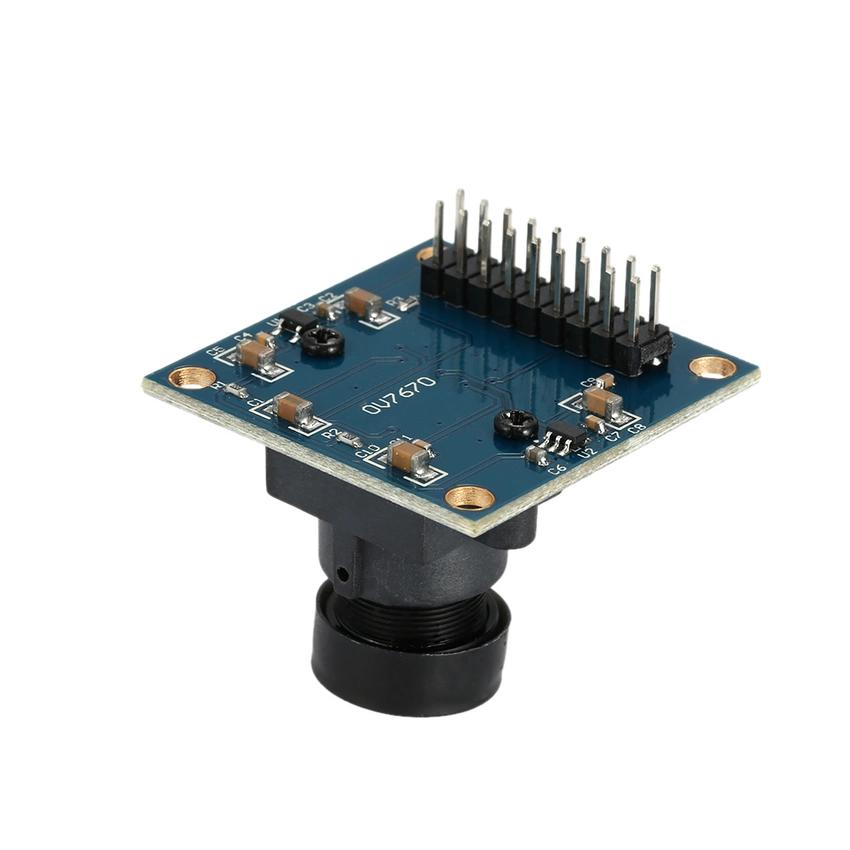

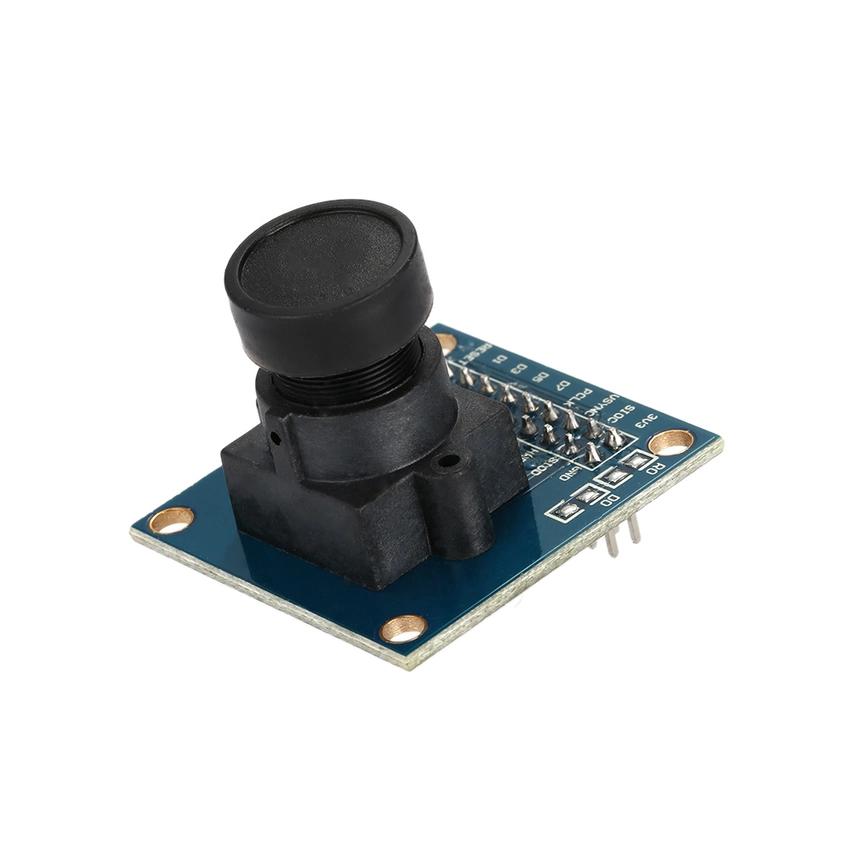

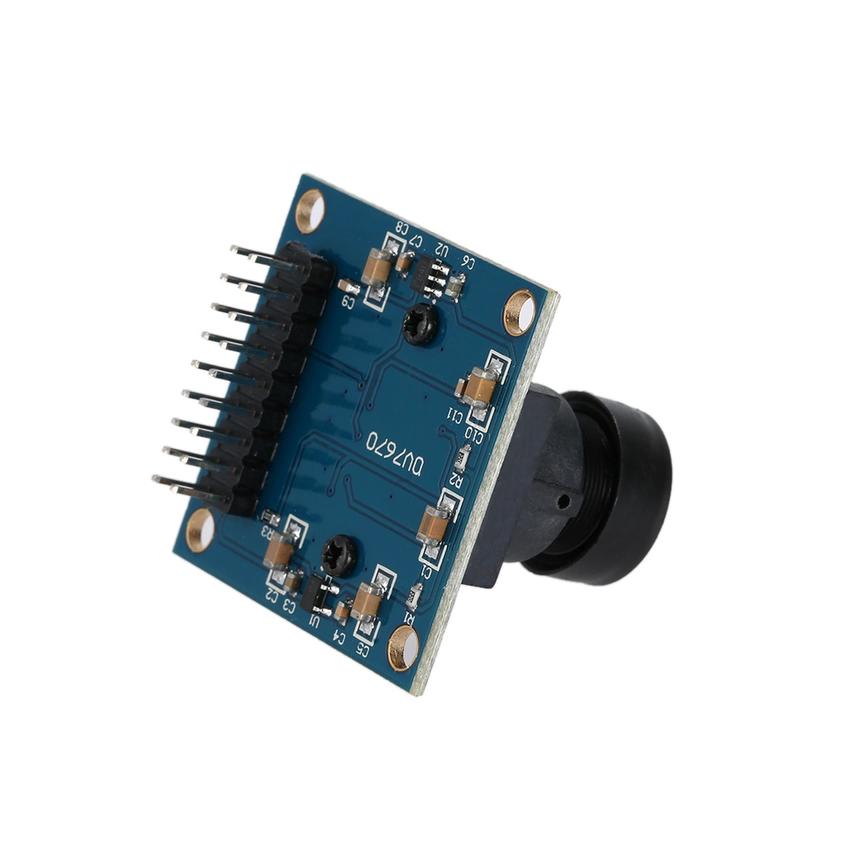

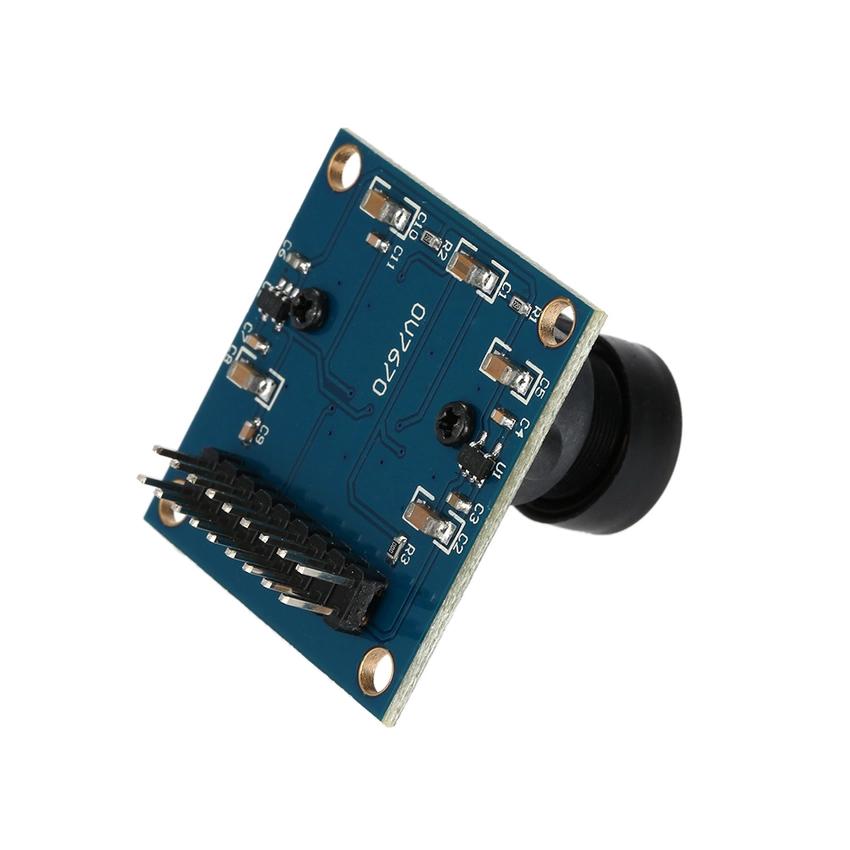

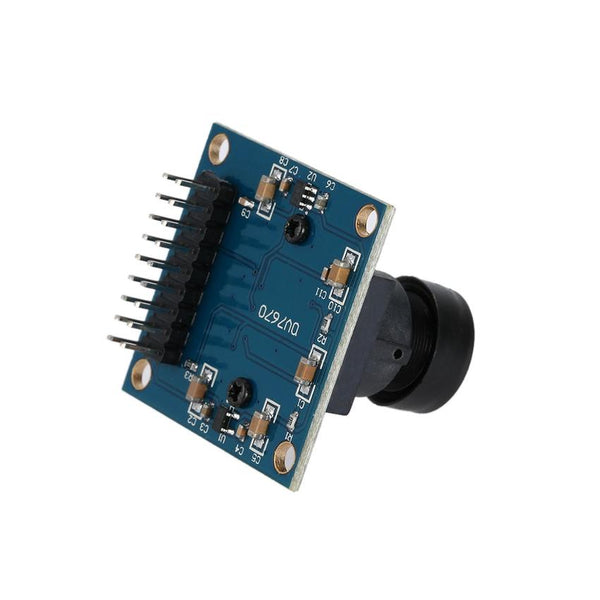

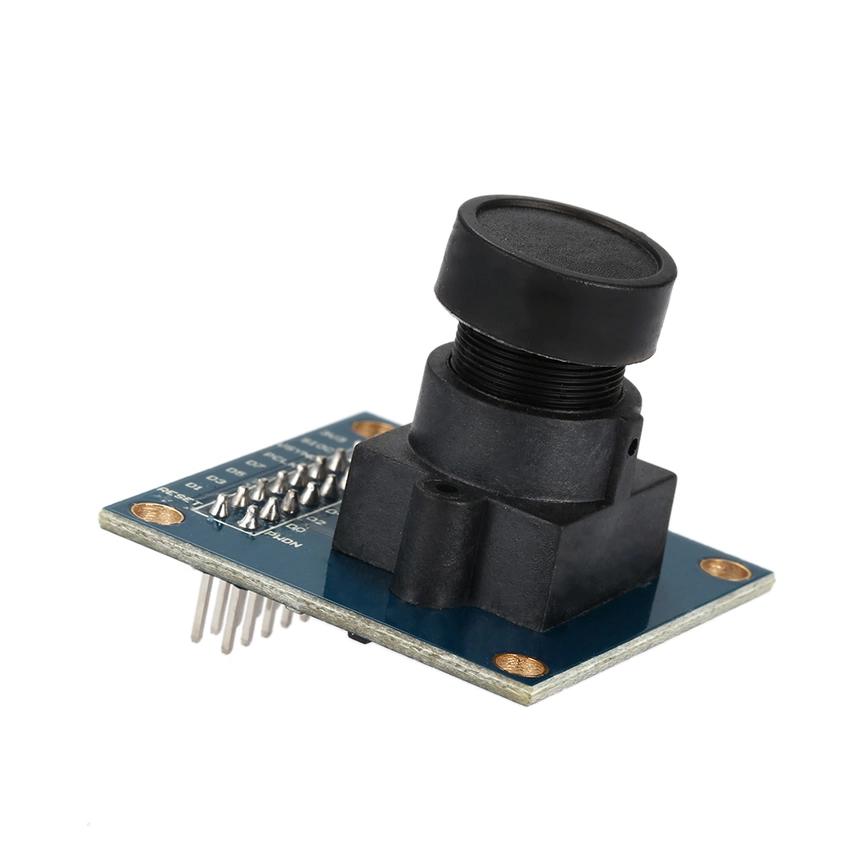

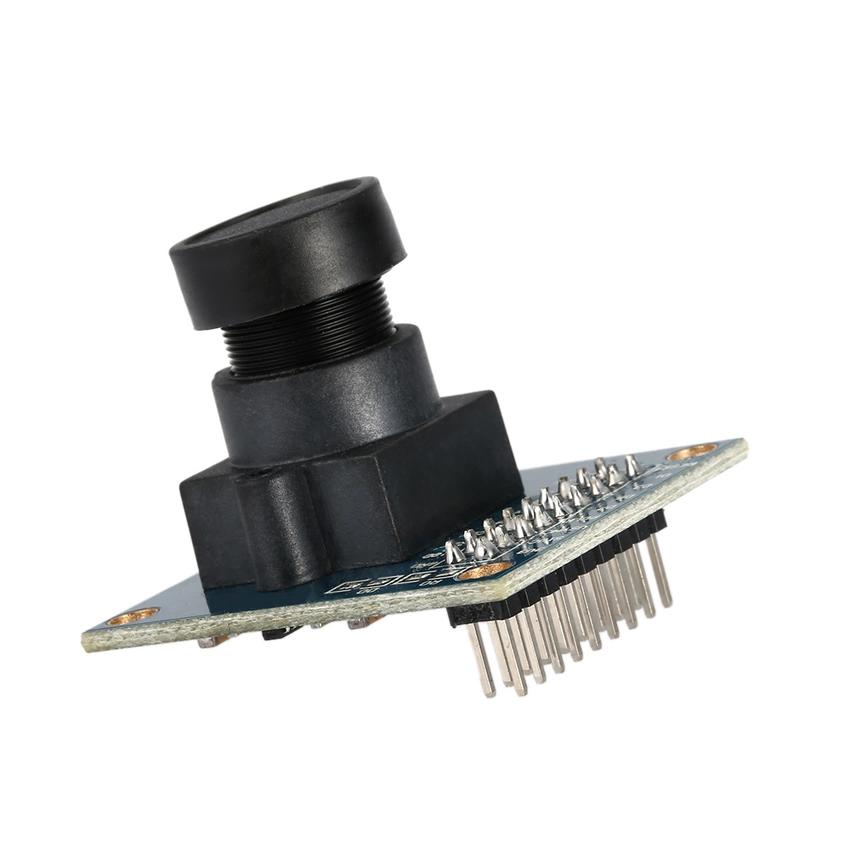

VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB with I2C for Arduino

$9.00 $0.00
Envio calculado na finalização da compra.

High sensitivity for low-light operation
Low operating voltage for embedded application
Standard SCCB interface compatible with I2C interface
Product details of VGA OV7670 CMOS Camera Module Lens CMOS 640x480 SCCB W/I2C for Arduino
Application:
High sensitivity for low-light operation
Low operating voltage for embedded application
Standard SCCB interface compatible with I2C interface
Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr(4:2:2)output format.
Support VGA, CIF and from CIF to 40 x 30 format
Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction.
Flicker 50/60Hz auto detection
Color saturation level auto adjust.
Edge enhancement level auto adjust.
De-noise level auto adjust.
Specification:
Material: PCB + plastic + metal
Photosensitive Array: 640 x 480; IO
Voltage: 2.5V to 3.0V
Operating Power: 60mW/15fpsVGAYUV
Sleeping Mode: <20 uA
Operating Temperature: -30 to 70 deg C.
Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
Lens Size: 1/6"; Vision Angle: 25 degree
Max. Frame Rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to Noise Ratio: 46 dB
DynamicRange: 52 Db
Browse Mode: By row
Electronic Exposure: 1 to 510 row
Pixel Coverage: 3.6um x 3.6um
Duck Current: 12 mV/s at 6'C
Package size: Approx.4 x 4 x 3.5cm / 1.6 x 1.6 x 1.4in
Package List:
1 x Camera Module
