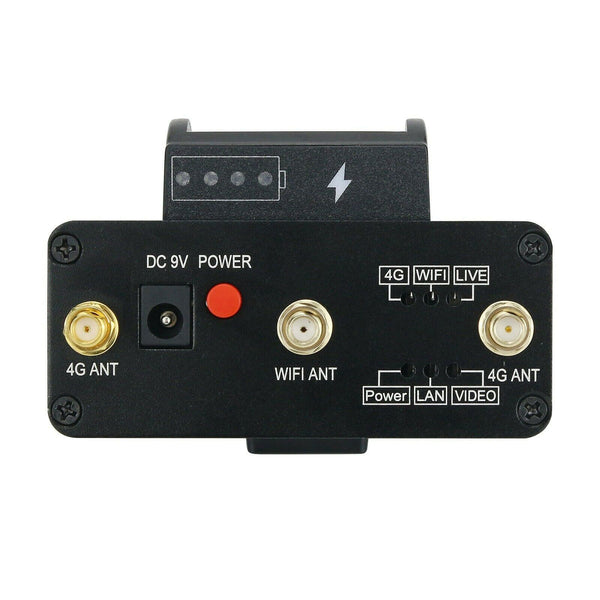

Wifi Video Live Broadcast Encoder HD Video H.264 Stream

Video:
Input:1x SDI
Output Stream: 4streamˆ2x1080P+2x720
Resolution:1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576 /720x480
Encoding:H265 HEVC Main H.264/AVC Baseline/Main/High Profile Level 4.2
Encoding Output FPS:1080P60 (when input 1080P60)
Data Rate:0.16Mbps~32Mbps
Rate Control: CBR/VBR
GOP Structure: IBBP
Advanced Pretreatment:De-interlacing,Image Enhancement,Noise Reduction,Sharpening
Latency Time:200ms
Audio:
Input:3.5mm/HDMI
Encoding:AAC/AAC+/MP3
Sampling rate:44100/48000 Hz
Bit-rate:32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision:24 bit
System:
Ethernet:1000M Ethernet/WIFI 2.4G (802.11n/11g/11b)/3G/4G/LTE
Protocol:HTTP RTSP RTMP HLS FLV UDP unicast/multicast
Control interface: Website Manager
General:
Dimension(WxLxH):88x123x58mm
Weight:0.8kg
Temperature:0-45(work),-20-80(storage)
Power:9V DC 1A/ F550/F750/F970
Consumption: 5W
FDD LTE:B1,B3,B8
TDD LTE: B39,B40,B41(38)
DC-HSPA+/HSPA+/HSPA/UMTS:B1,B9,B5,B8
TD-SCDMA: B34,B39
GSM/GPRS/EDGE: 1800MHz,900MHz

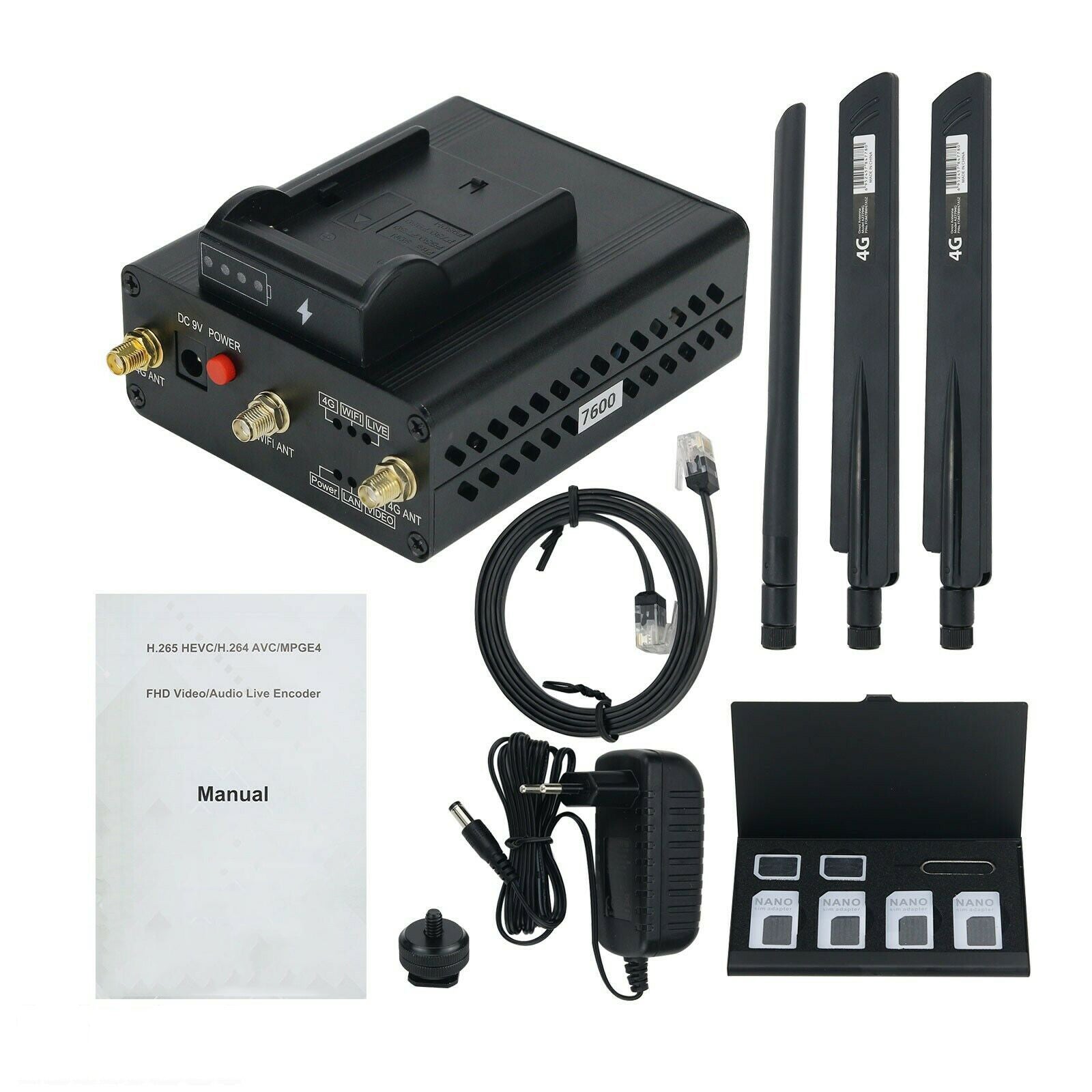

Package:
Video Live Broadcast Encoder x 1 pc
Remark: Power Plug Type Depends on your country.
