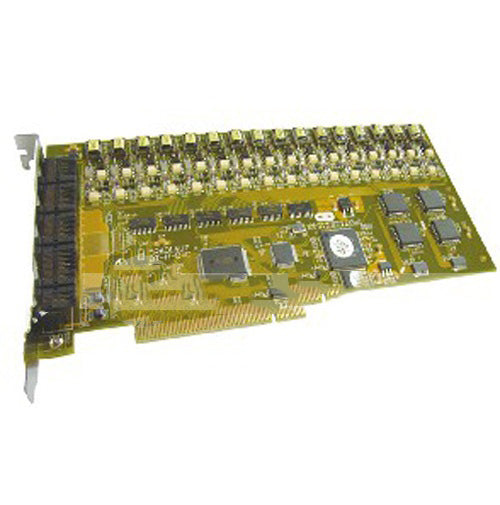

16 Channel Port PC PCI Telephone Call Calls Voice Recorder Phone Recording Card

Specification:
Multi-channel Recording: One computer can insert 8 pieces of recording card (128 channels at most)
Data Management: Recording system can print out, statistic and analysis for dialing in, dialing out and incoming call data. Also can transfer GSM recording data to MP3 and WAV format
Digital Recording: Recording system uses digital mode for recording and hi-fi original sound for playing. 1G hard disk space can contain recording data for 175 hours
Automatic Recording: Audio control (A) voltage control (V) and key control (K) are available. Dialing in and dialing out phone can be recorded automatically
Number Showing: Telephone number of "DTMF" and "FSK" mode can be showed and recorded correctly
Client Management: Recording system can input and modify customer information through server. Pop up client information through local computer and network automatically according to incoming call number
Quick Search: Recording can be searched and printed quickly according to channel number, call date and company name. Data can be played through audio card or recording card
Monitor: Any channel telephone can be monitored in real time through local computer and network
Safe and Reliable: Password management and classified customer right make recording data safer and more reliable. Any recording won't be missed
Time Setting: Set starting and stopping record time as you wish during 24 hours
Performance Characteristics:
SMT technique, guarantee the high quality
The world's most advanced software exchange technology, no wire required among recording cards; more quickly and reliably to transmit data
800 x 600 figure resolution display provided. Detailed display of working mode, operation indication and query result record
Audio, voltage and key control are supported when recording start modes, the host calling receive mode DTMF and FSK is supported automatically
Caller company alarm alert to achieve real-time monitor

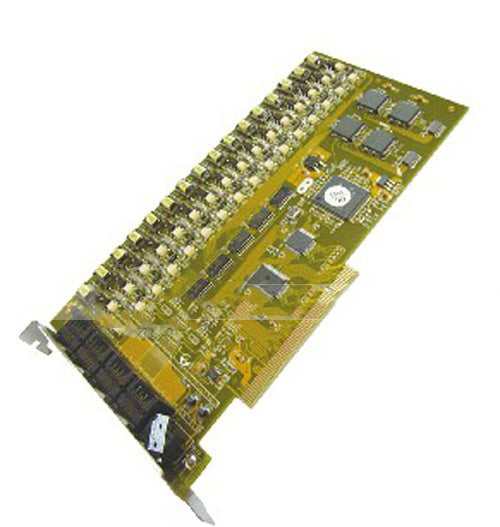

This PCI telephone voice recorder card comes with 16 channels. And one computer can insert 8 pieces of recording card
The best telephone voice recorder card uses digital mode for recording and hi-fi original sound for playing
Quick search and print of complicated call record; search and print functions of channel number, call date, phone number, company name
Print the query result by local or network printer
Cycling record according to designated record space and automatic deletion of the earliest record in batches
Time record, able to pre-set record time
Any computer connected by the internet can monitor the talk over the server and also can check the talking information any time
Record, call record, search and playback in the same time
Key operation, machine and fault with alert and warning
Management of the equipment and search and playback of record through network sa Internet or LAN
Safe and reliable, classified password right management and high confidence of call record
Details:
One computer can insert 8 pieces of recording card (128 channels at most)
Recording system can print out, statistic and analysis for dialing in, dialing out and incoming call data
Convenient Connecting Finger Design
The phone voice recorder card has different slots for various use
Record Mode:
Voltage Control: Record according to voltage change, ie, start when telephone is picked up while finish when telephone is hung up
Audio Voice Control: Record based on whether there is sound signal in the line check, such as interphone and so on
Key Phone Keystroke Control: Start and finish the record according to the content of the call by the caller through keystroke
There are three record modes of the system for you to choose from: Vlt voltage control: Record according to voltage change, ie, start when telephone is picked up while finish when telephone is hung up
Audio voice control: Record based on whether there is sound signal in the line check, such as interphone and so on
Kyp Phone keystroke control: Start and finish the record according to the content of the call by the caller through keystroke
Hardware Requirements:
Input: 1 to 128 channels increase by 16 channels
Impedance: >100K ohm
S/N Ratio: 50dB
Frequency Response: 300Hz ~ 3400Hz
Digital Mode: GSM
Capture Speed: 12.5Kbit/s, compression ratio is 5
Average Seek: 39MS
Power Consumption: 200W Max
Temperature: +5DegC~ +40DegC
Humidity: 5% to 85%
Technical Parameters:
Operate System: Windows98/ME/2000/XP/2003/Vista/8/10
CPU: No less than C800
HDD: No less than 20G
Memory Capacity: No less than 128M
Monitor: VGA 800X600
Package Included:
Telephone Voice Recorder Card x 1 pc
Phone Adaptor x 8 pcs
