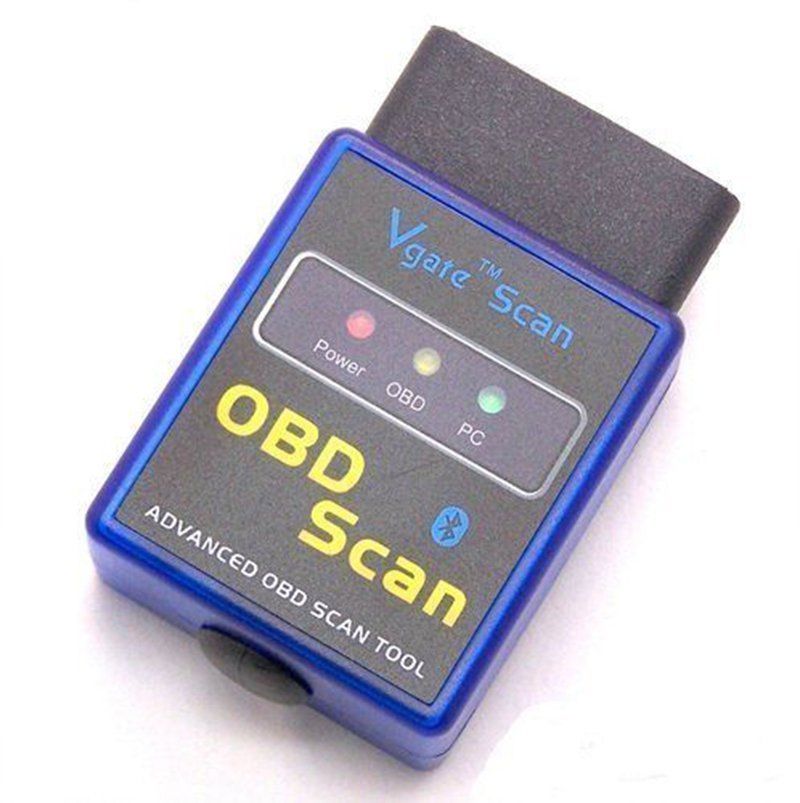

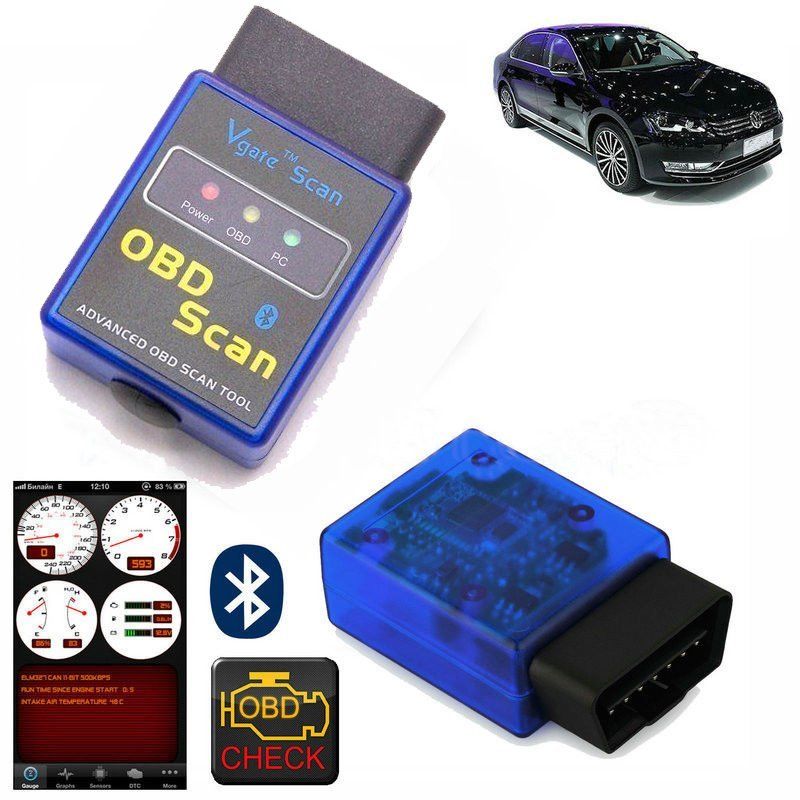

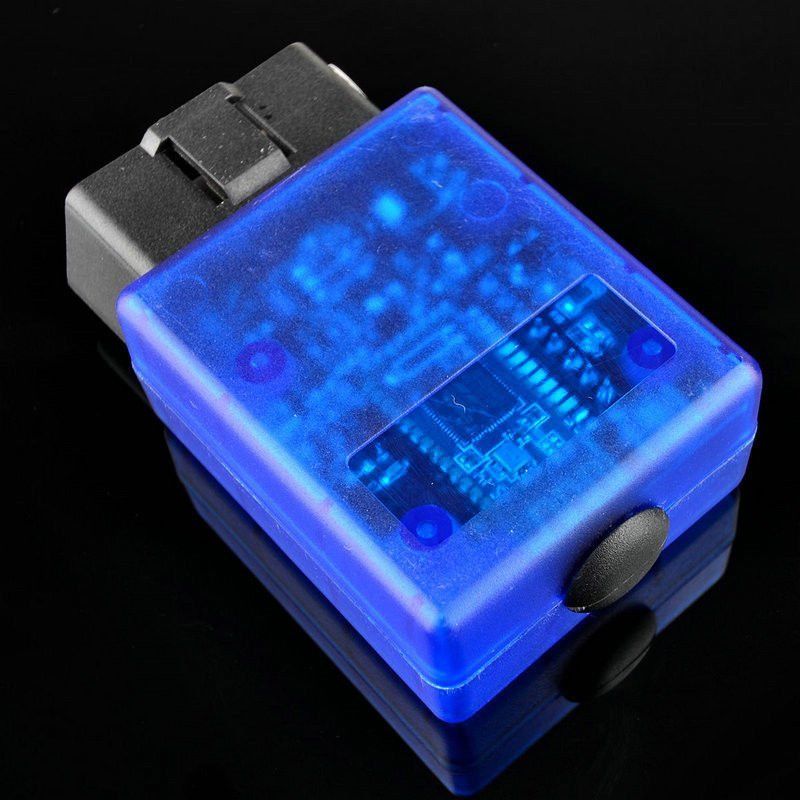

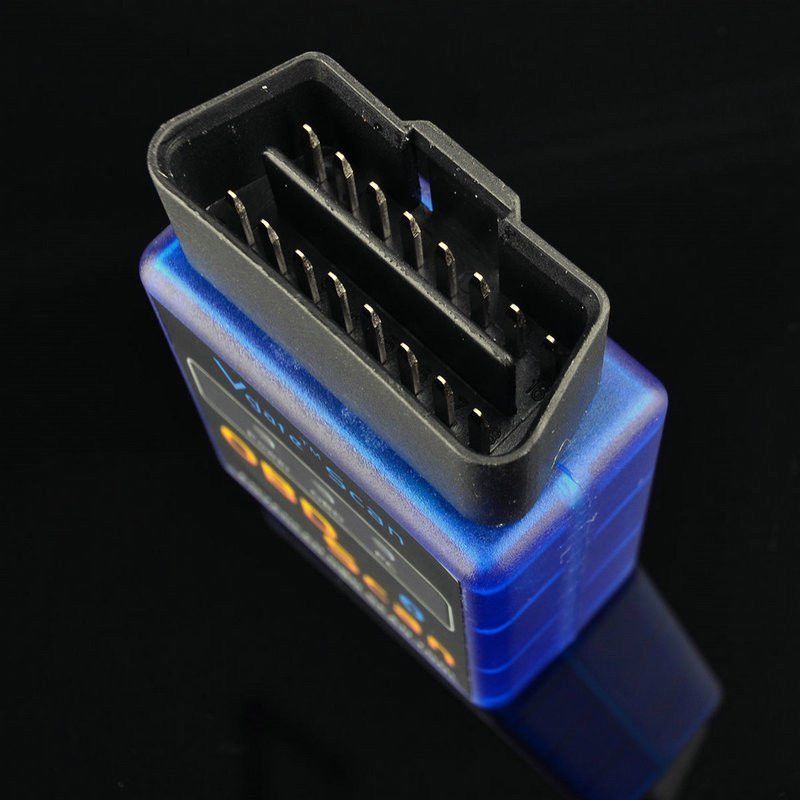

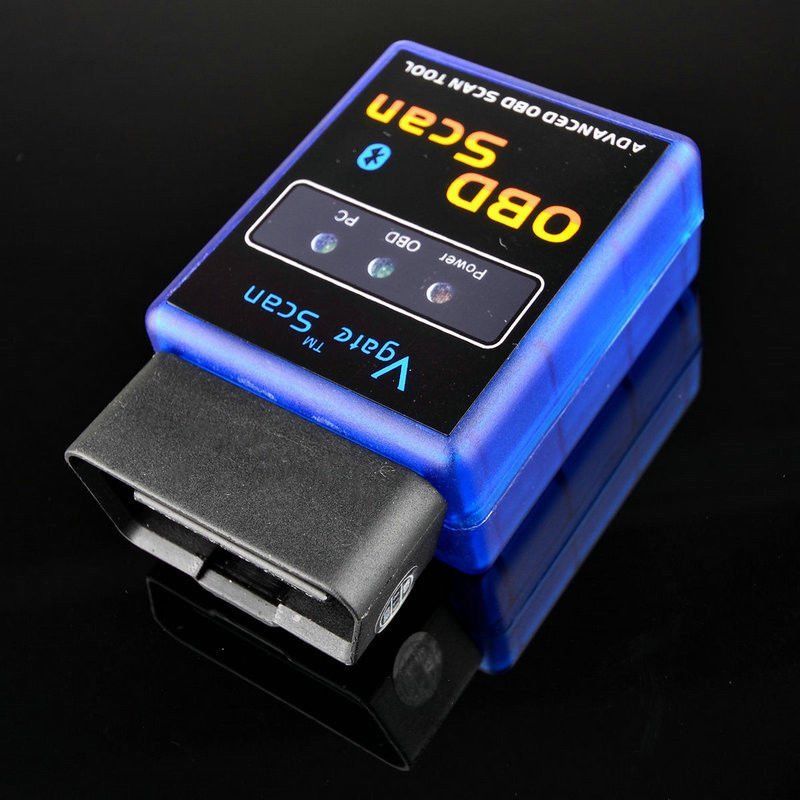

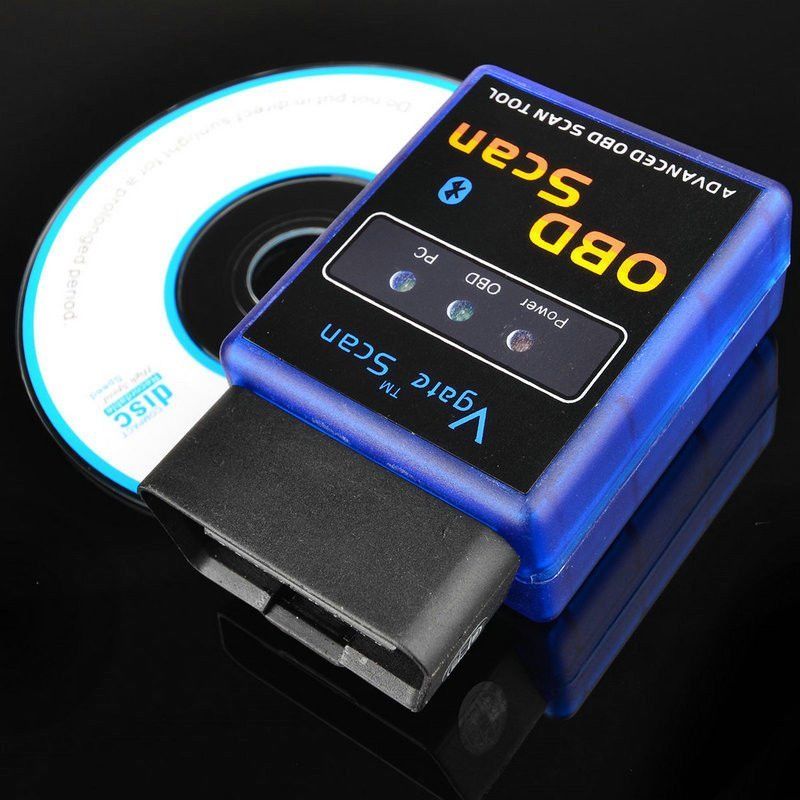

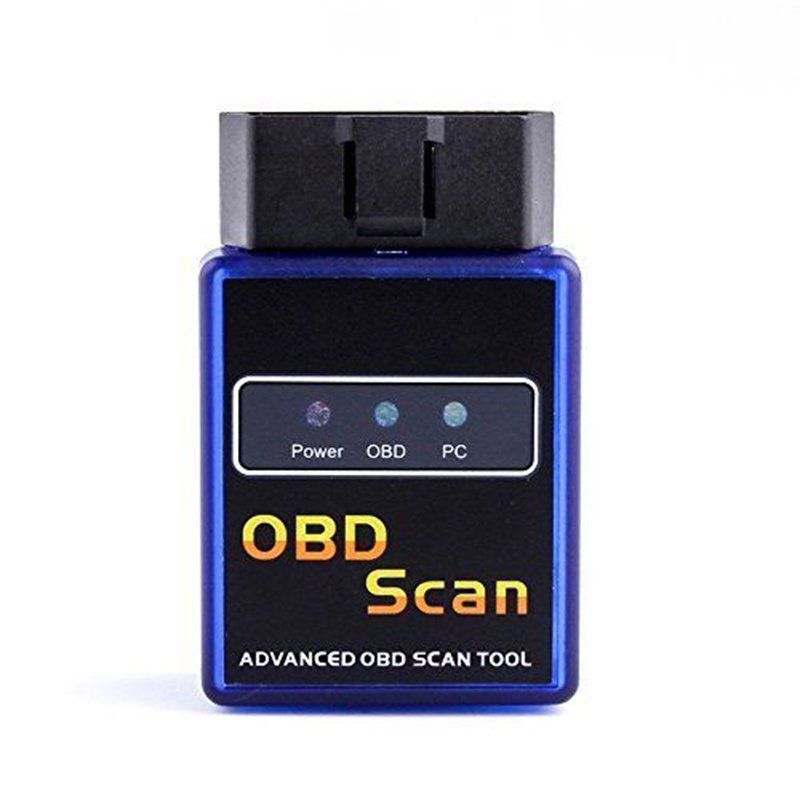

Mini VGate Scan ELM327 Bluetooth V2.1 OBD2 OBD II car Auto Torque Scanner tool

Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).

Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Specifications:
Support OBD-II protocols as follows:
ISO15765-4 (CAN)
ISO14230-4 (KWP2000)
ISO9141-2
J1850 VPW
J1850 PWM
Compatibility:
Works on all OBD2 Vehicles ( from 1996 in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
Compatible with Android Torque and Windows Smartphone, Windows PC.

Package included:
1 * ELM327 unit (Bluetooth version)
1 * CD software

Note:
1. Your car must support ECU protocol
2. When connect with the software, car must be started
3. When use laptop, need to match the Bluetooth adapter, the effective distance is 10 meters.

Installation(FYI):
1. Insert the Bluetooth scanner into the CAN-BUS slot on the left side of the string wheel.
2. Open the handheld devices
3. Open the Setting Up
4. Open the Bluetooth
5. Click to search the Bluetooth
6. Search for the Bluetooth devices
7. Click ¡§OBDII¡¨
8. Enter the password, ¡§1234¡¨, and then notes been paired.
Then the OBD device and your handheld device have been connected, then back to your phone or tablet, open the ¡§Torgue¡¨ software.

Note:
Your car must support ECU protocol
When connect with the software, car must be started
When use laptop, need to match the Bluetooth adapter, the effective distance is 10 meters.
If your device can not be connected with the Bluetooth, pls be sure that the Bluetooth 2.1 can only used with Andriod system, Thus iphone, ipad cannot be connected.
If can be connected with the Bluetooth, but the software cannot be connected with ECU, that is because you haven¡¦t set the software.
Pls make sure that you have closed the detection software which is running in the background, and delete the former Bluetooth address, pull up the ELM327 product, connect Bluetooth again, when Bluetooth been connected, then open the detection software.
