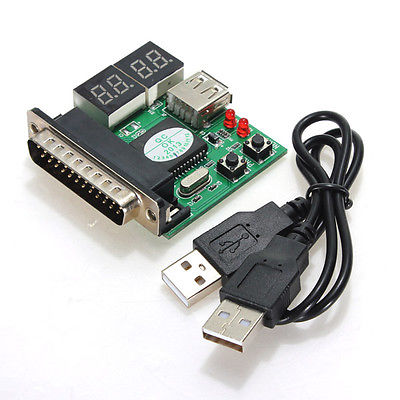

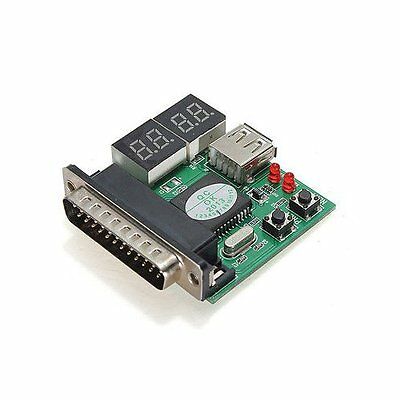

PC LAPTOP Notebook Diagnostic Analyzer 4 Digit Card Motherboard Post CODE Tester

Features:
100% Brand New and high quality
Size ( about ): 6 x 5.5 x 1.5cm
M/M USB cable Length: 51cm
Interface Type: 25 pin male printer connector
No need to install ANY software.
2 keys for codes PREV /NEXT
Let you know the error of your computer without opening your Laptop and desktop with 25 pin printer port.
Intercept and hex the code of your booting computer.
5 LED indicator: +12, -12 +3V3, CLK, FRAME.
Hexadecimal character display.
Detailed & precise Code Indication Table, convenient for you consulting.
Come with USB A-Type male cable, directly powered via USB port.
Compliant to the PHOENIX BIOS4.01~6.01 laptop and desktop.
Compliant to the AMIBIOS 6.24, AWARD BIOS 4.51 laptop and desktop.
Concrete computer type: IBM, T20, T21, T22, T23, A20, A21, A22, DELL640,
TOSHIBA 4030, etc.
Compatible with the following BIOS Chip Manufacturers:
ACER - AMI - AST - AT&T - Award - Chips & Tech - Compaq - Dell - DTK -
EuroSoft - Mylex - Faraday - HP - IBM - Landmark - Mr. BIOS - NCR -
Olivetti - Phillips - Phoenix - Quadtel
Package Included:
1 x USB PCI PC & LAPTOP Diagnostic Analyzer 4 Digit Card Motherboard Post Tester
1 x USB Charging Cable
Note: PCB color may vary.
