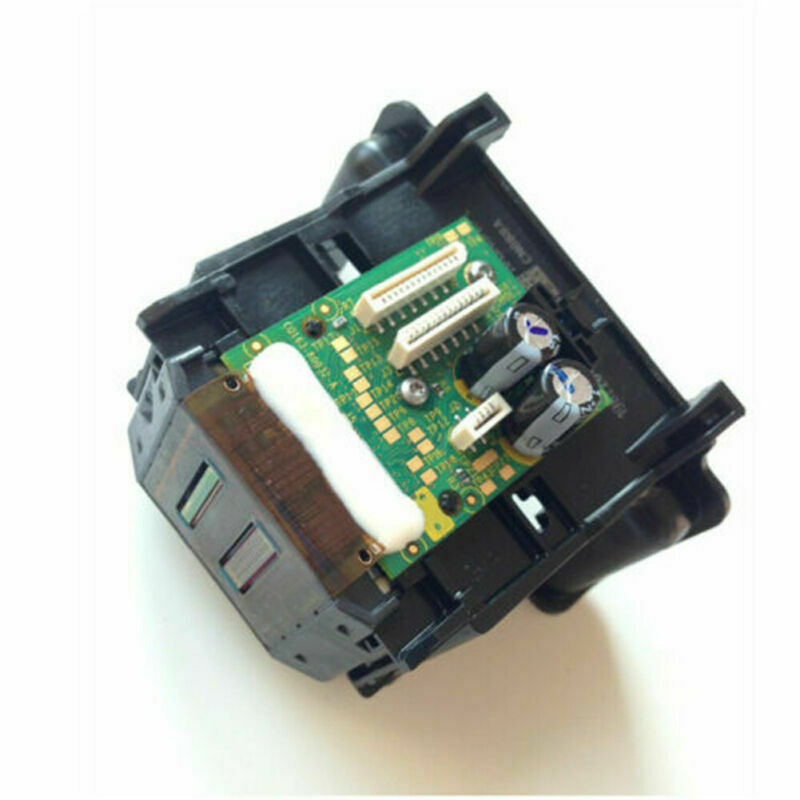

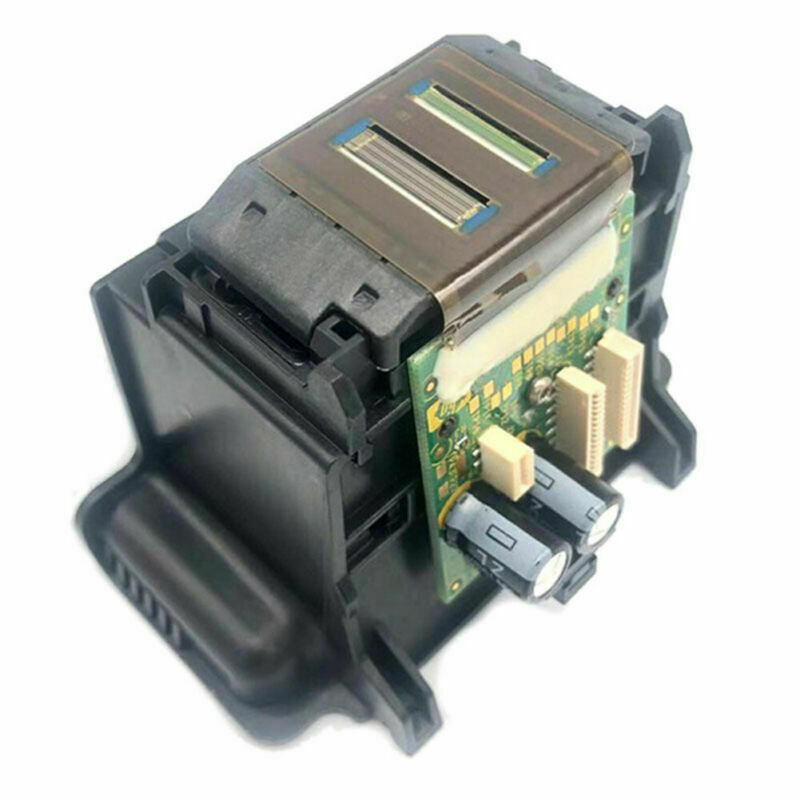

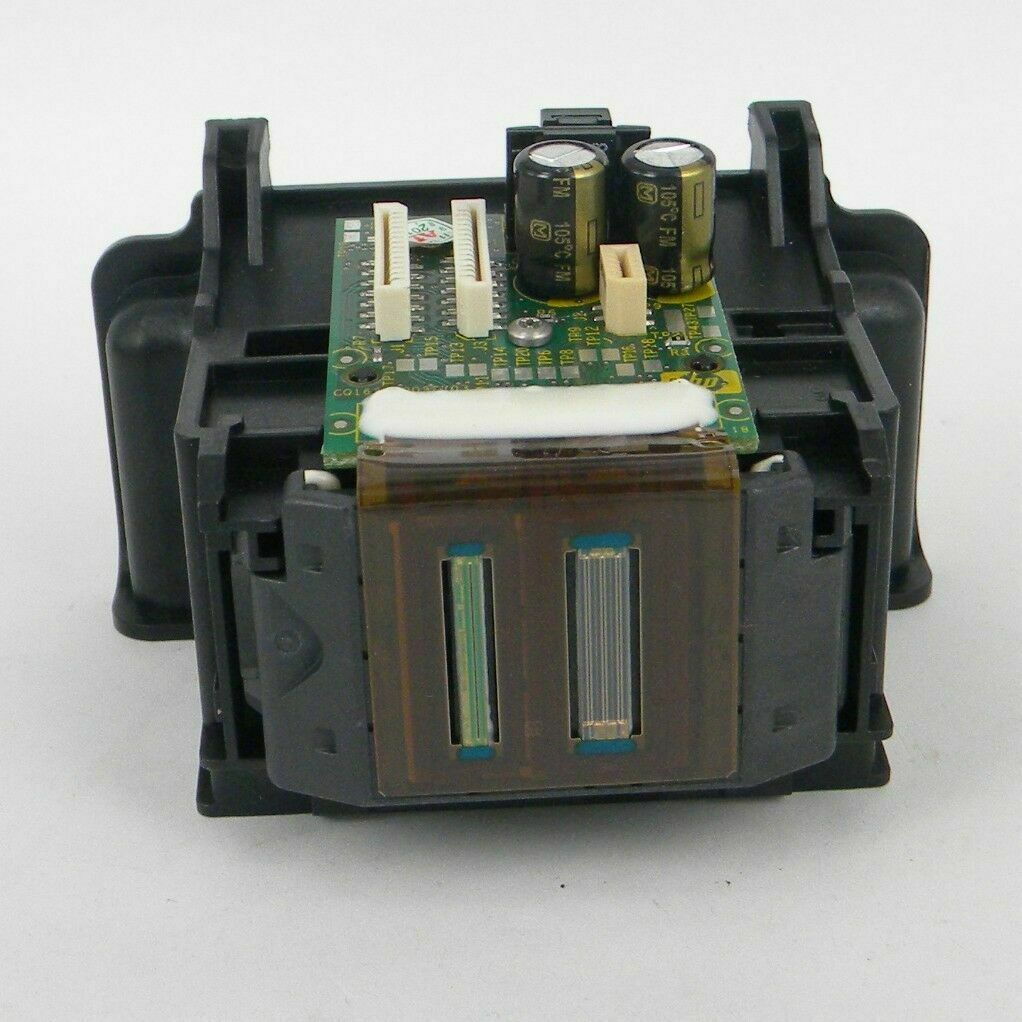

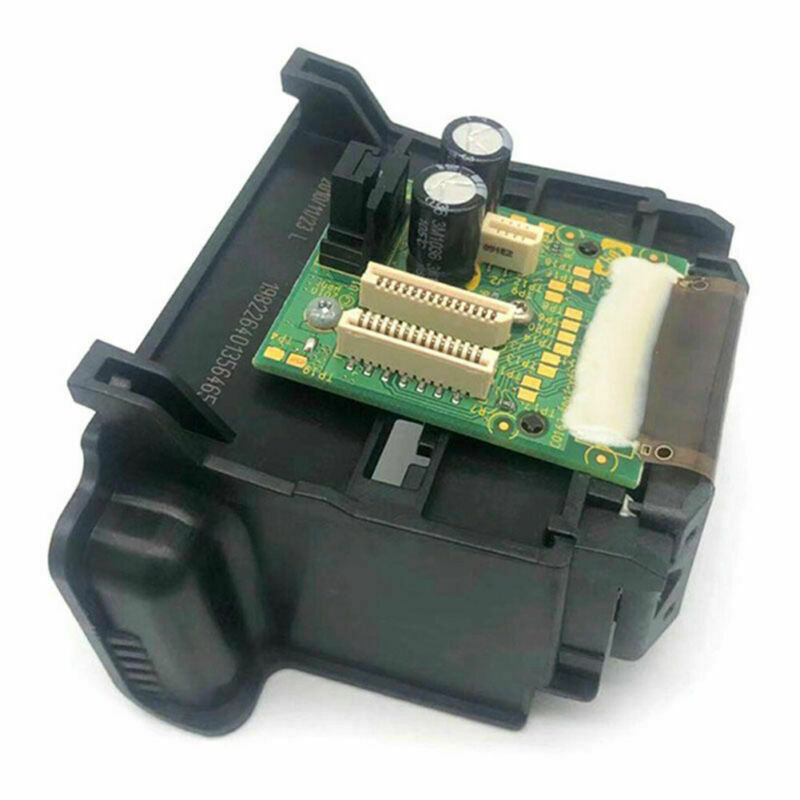

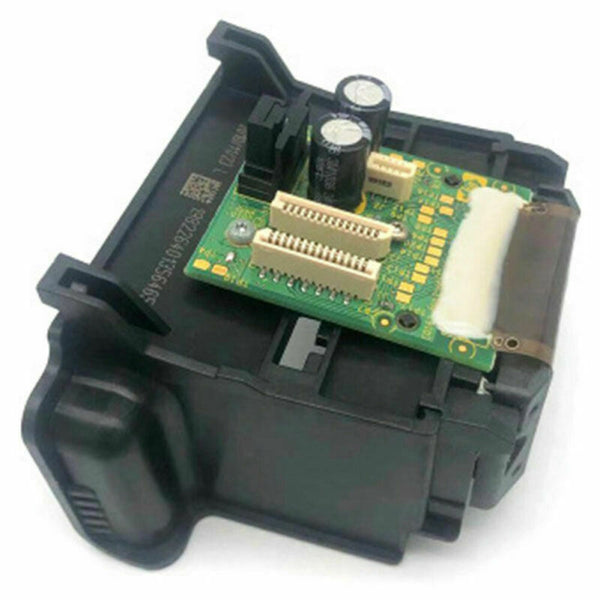

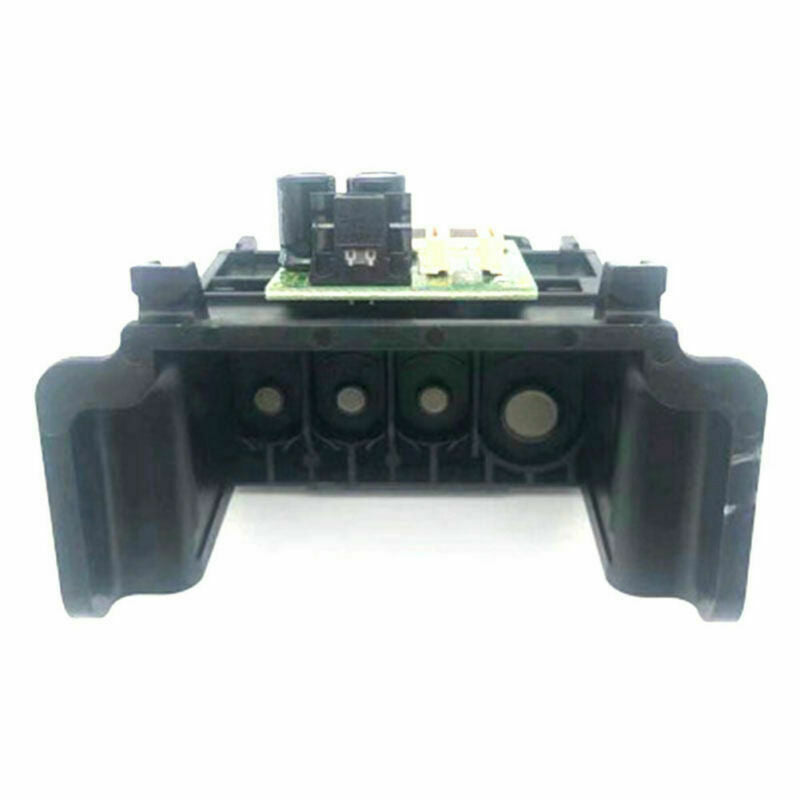

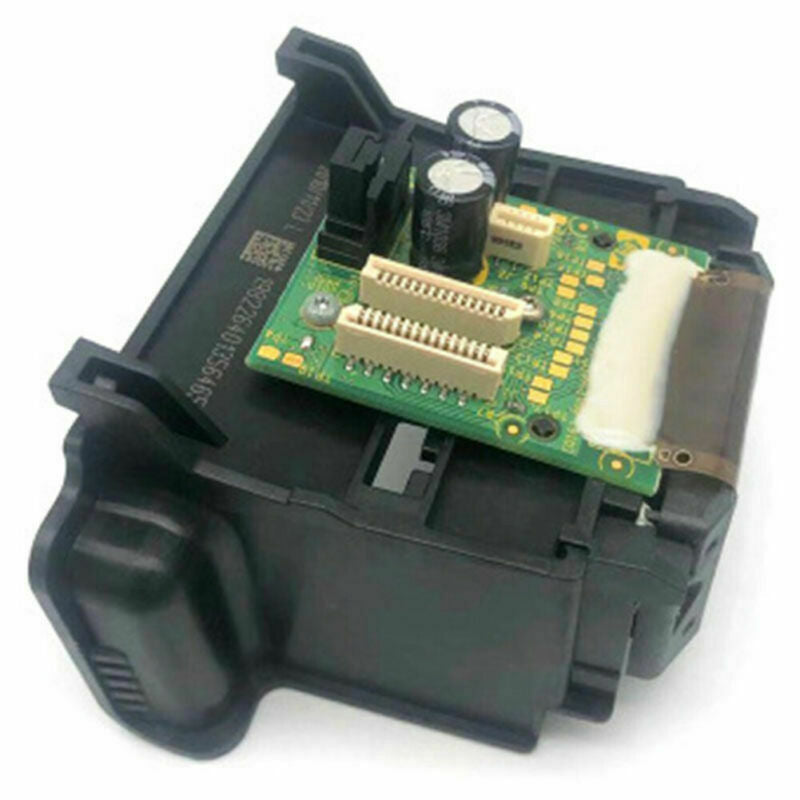

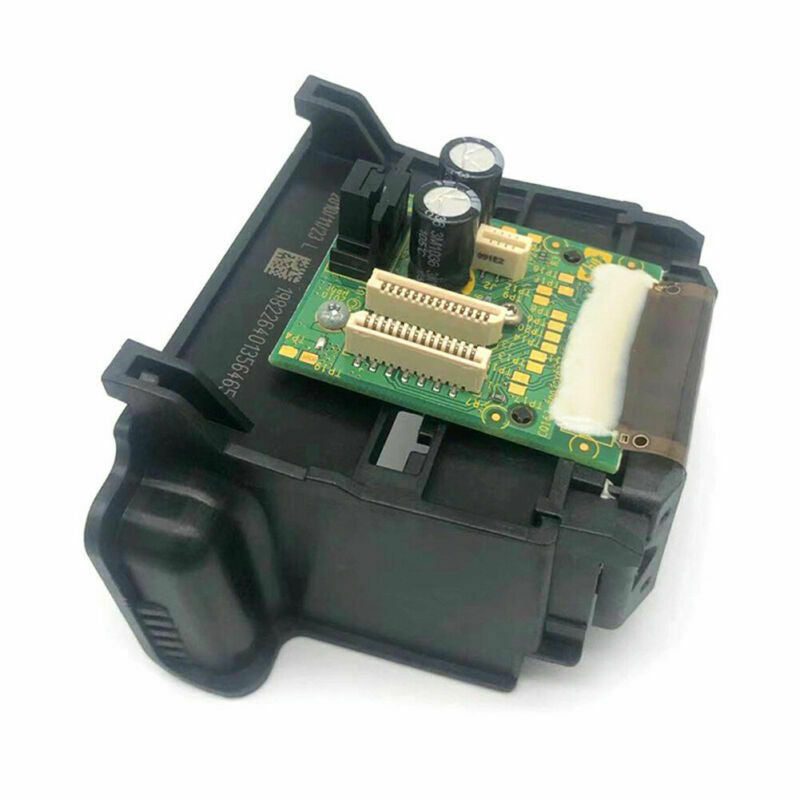

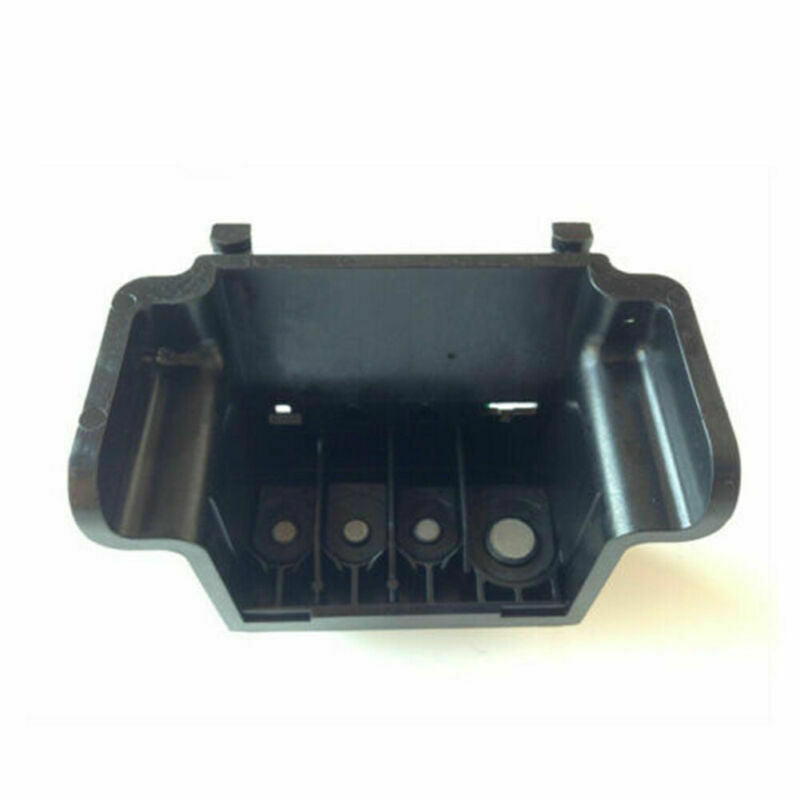

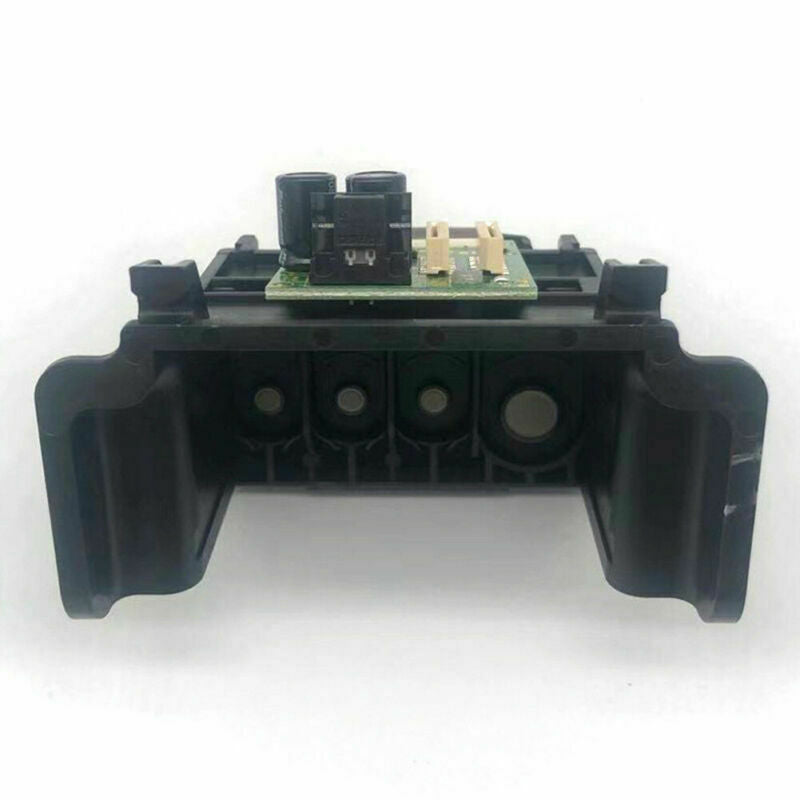

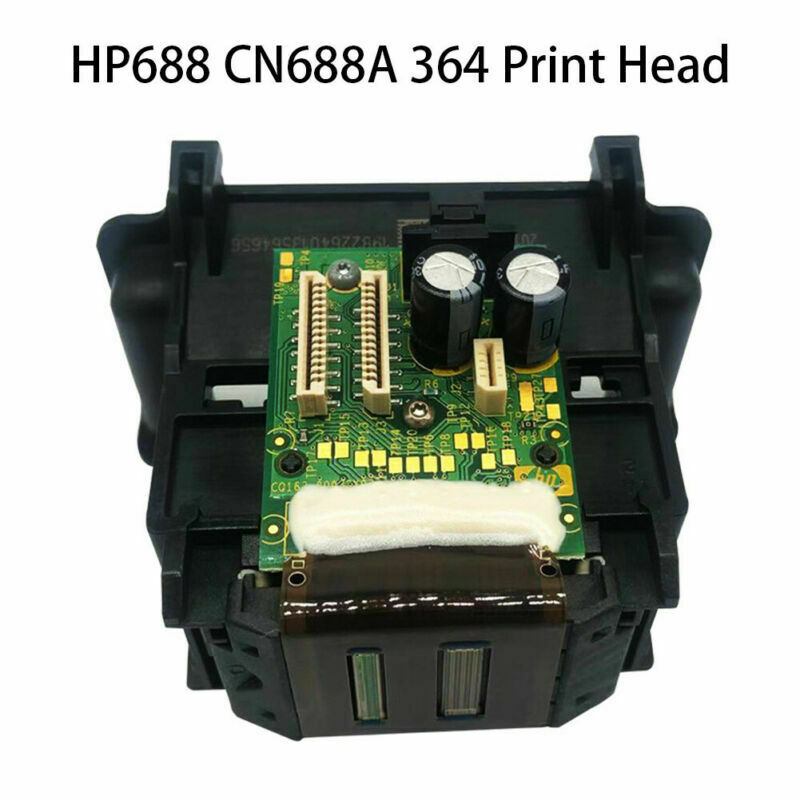

PrintHead CN688A for HP 564 3070 3520 5525 4615 4620 4625 5514 5520 5510 3525

Made of high-quality materials, durable and perfectly matched with the original version
Other features: stable characteristics, high reliability, according to the original factory specifications. Easy and simple installation

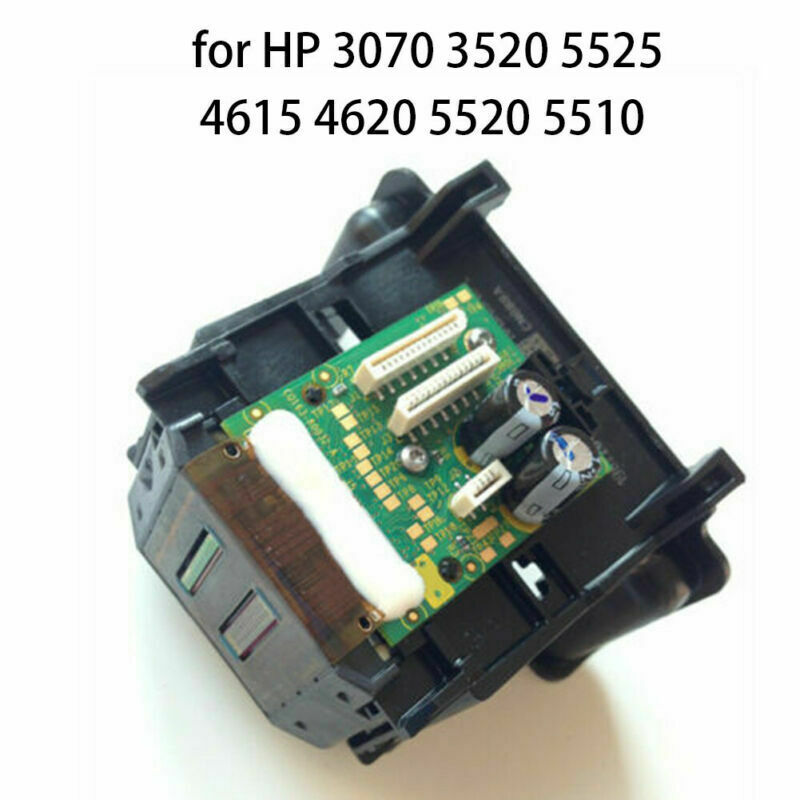

Applicable model: for HP 3070 3520 5525 4615 4620 5520 5510
Use scene: printer nozzle
Specifications:
Material: ABS
Color: (as shown) full color printing

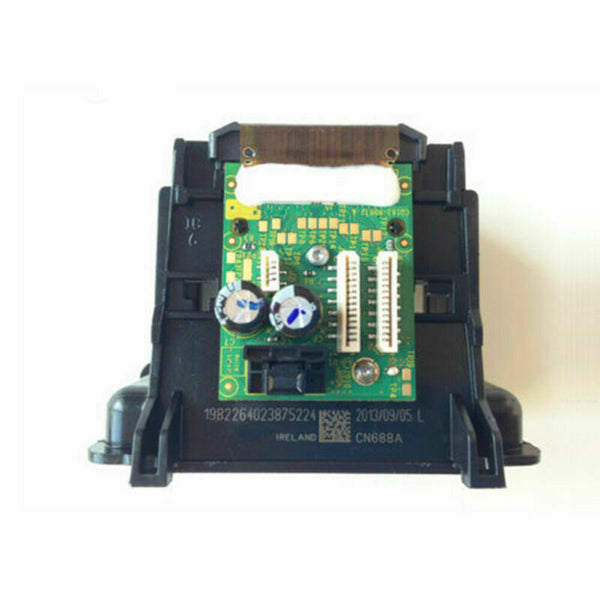

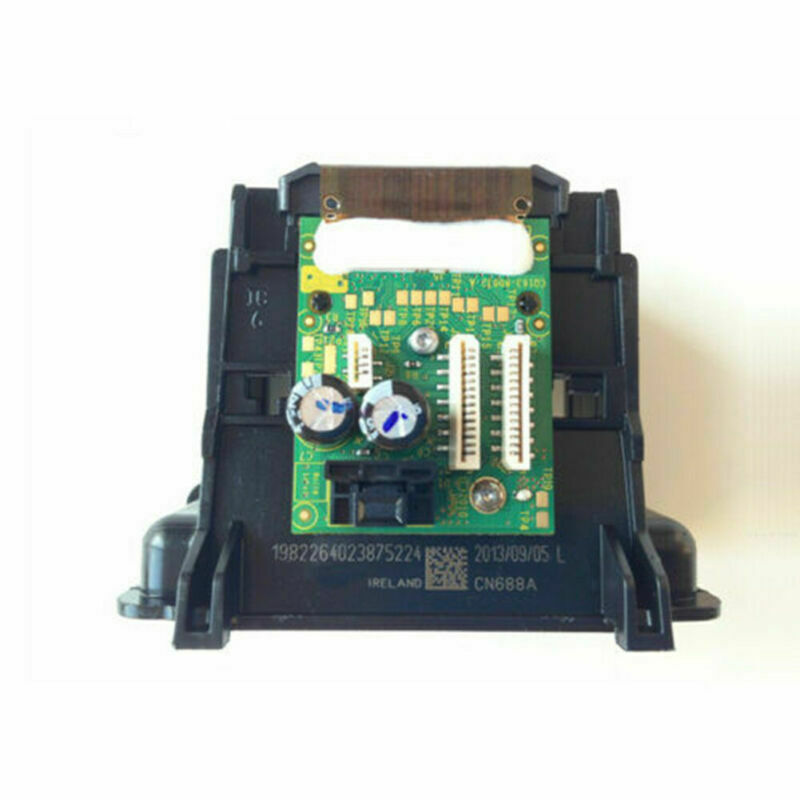

Model: (as shown in the picture) HP688 CN688A
Size: (approx) 9x5x7Cm
Weight: (approximately) 57 grams
Quantity: 1
Print color: full color
Precautions:
The head surface of the nozzle is very fragile and must not be bumped. It must be protected. Its surface is an aluminum sheet, and the inner layer is coated with a crystal oscillator and a very small ink tube. It will be concave and deformed when touched. Even if it breaks, the nozzle will be scrapped;
Before installation, please make sure that the other parts of the printer are normal, especially the motherboard to ensure that they are normal, otherwise the new print head may be burned out.
When connecting the plug and cable, do not bring ink, and make sure that it is in good contact with the socket and does not touch the feet, otherwise, it will cause the nozzle to short-circuit and burn;
The steel shaft should also be clean and smooth. You can wipe it with a paper towel with some lubricating oil. Do not directly add oil to the shaft. The excess oil will flow to the nozzle and cause damage;
After the machinery and circuit are all correct, check the ink circuit. First, check that the amount of ink in the ink cartridge is insufficient; second, check whether the small cleaning blade and the ink suction pump are dirty;
There may be air in the newly installed print head, so it will not print normally immediately. Only after the air in the head is completely exhausted can the lines appear normally; first, intermittent cleaning can be used (only two cleanings at a time, then stop 30 Wash 2 times after 2 minutes) Repeatedly over-cleaning will cause ink accumulation in the cleaning pump, which will not only cause color mixing and ink leakage, but also waste ink; secondly, you can print more pictures to let the nozzle exhaust air during work ; Again, if the machine has led out the waste ink tube, you can cut off the power first, and then use a rubber tube to draw the waste ink tube until 3-5ml of ink is drawn out, then turn it on and clean it once with the machine normally. It is equivalent to artificially extracting the air from the head, and the side effect is that it is easy to cause the cleaning pump to pile up ink.
Please install the print head on the machine without ink cartridges, Directly install the print head on the machine with ink , the ink system will cause error problems.
Note when changing the nozzle:
Proposed professionals in the printer failure to determine the problem is the print head or the motherboard cartridge problem and then processed.
Package:
Print Head For HP CN688A x 1 pc
