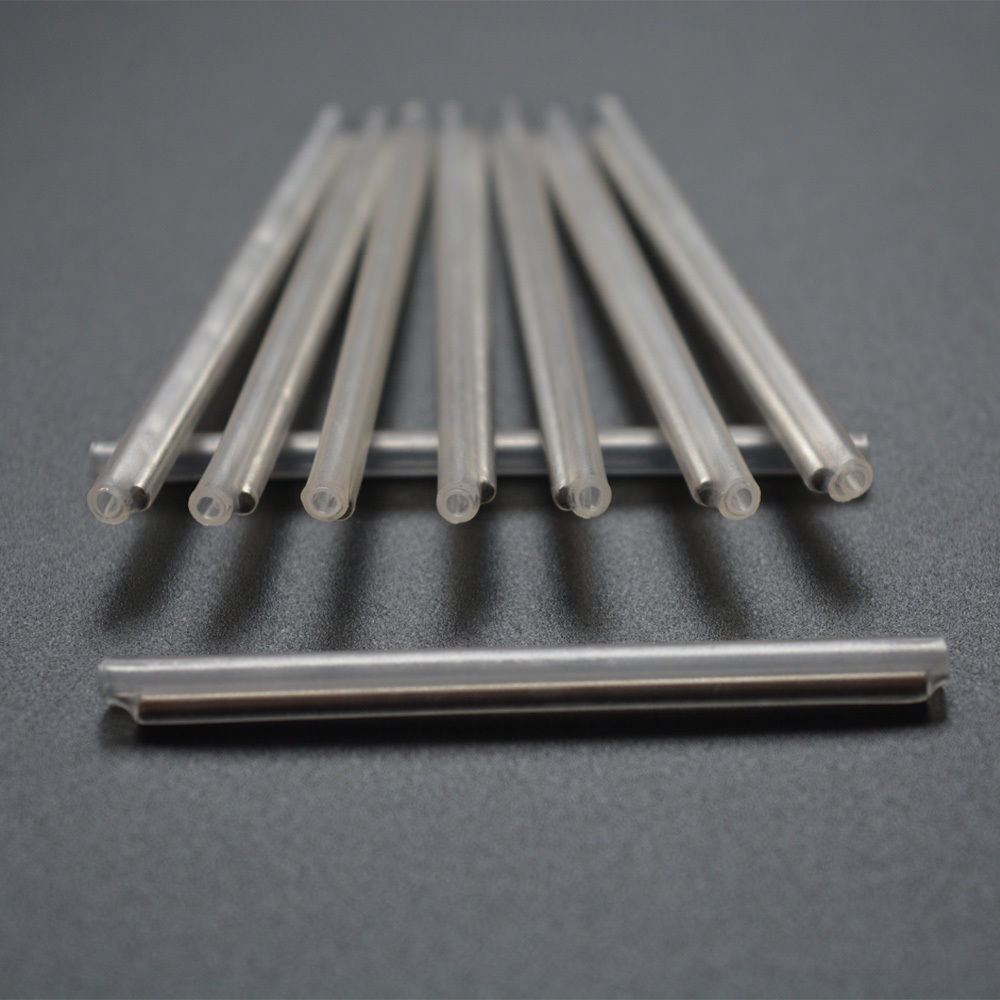

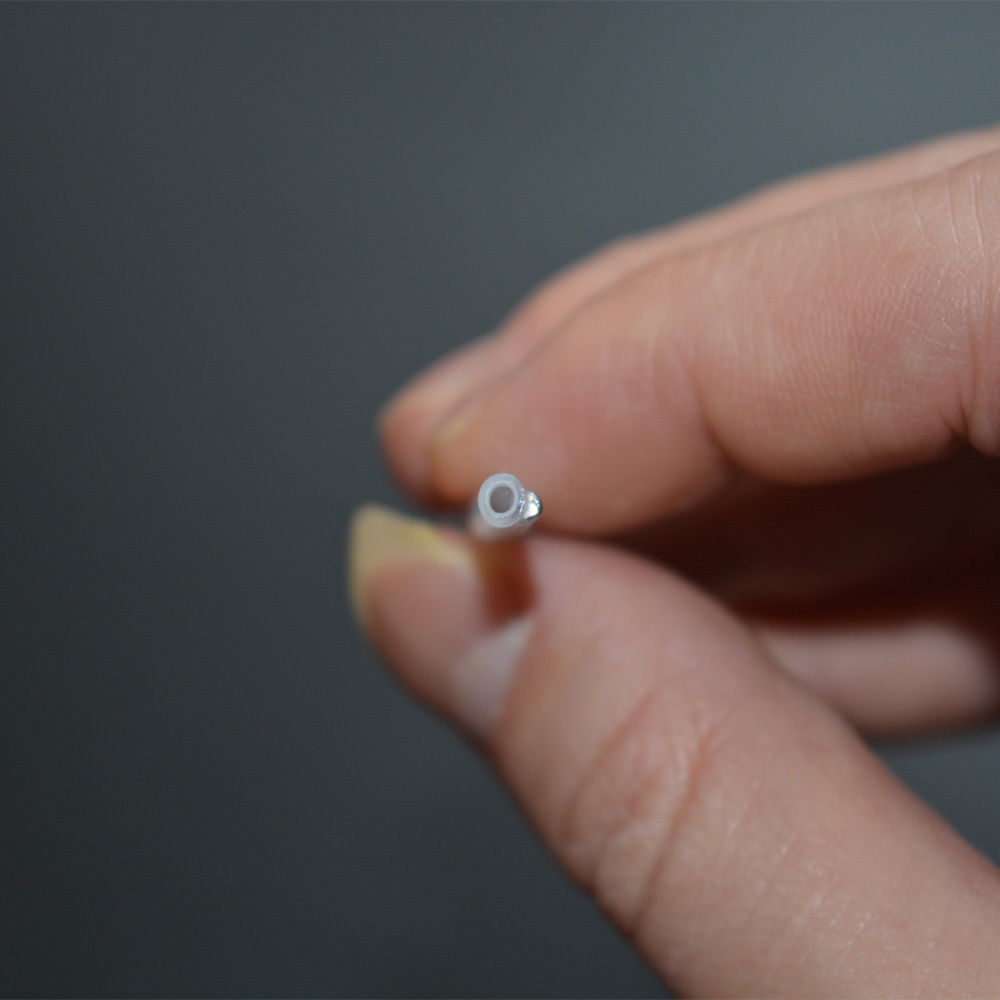

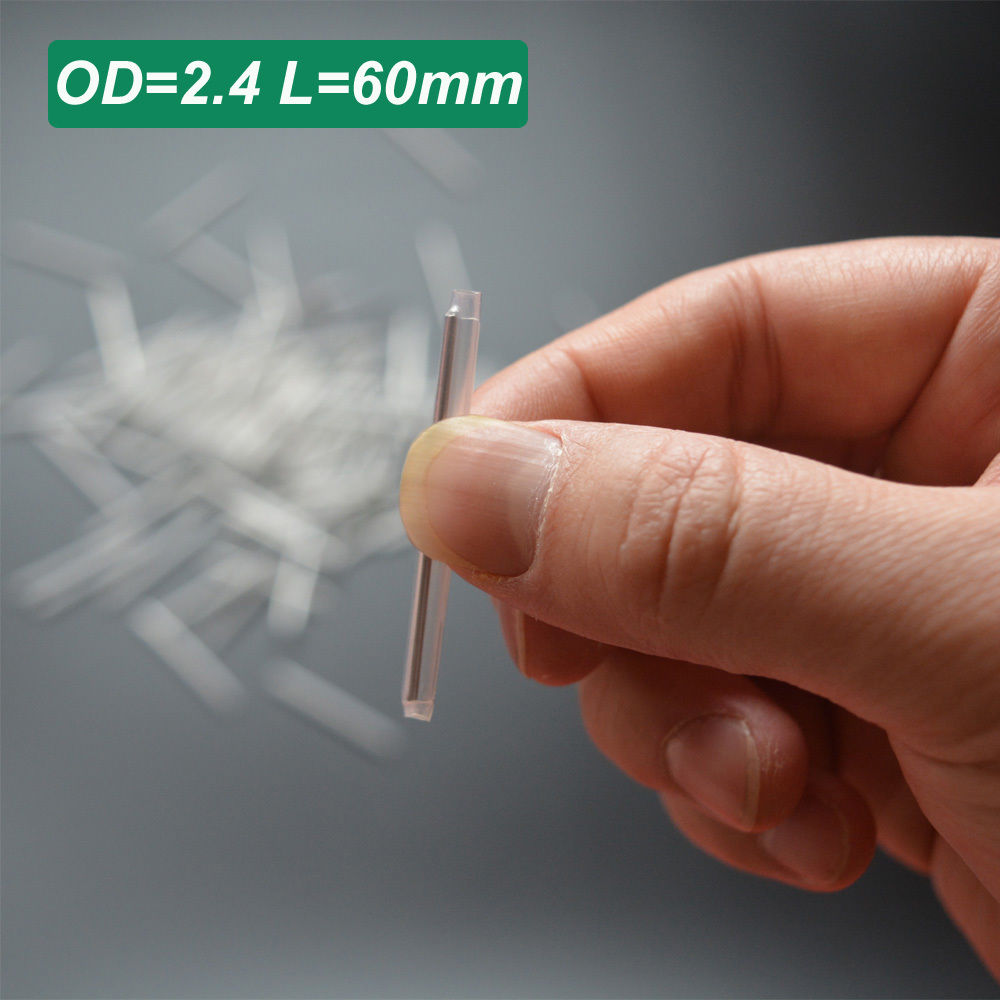

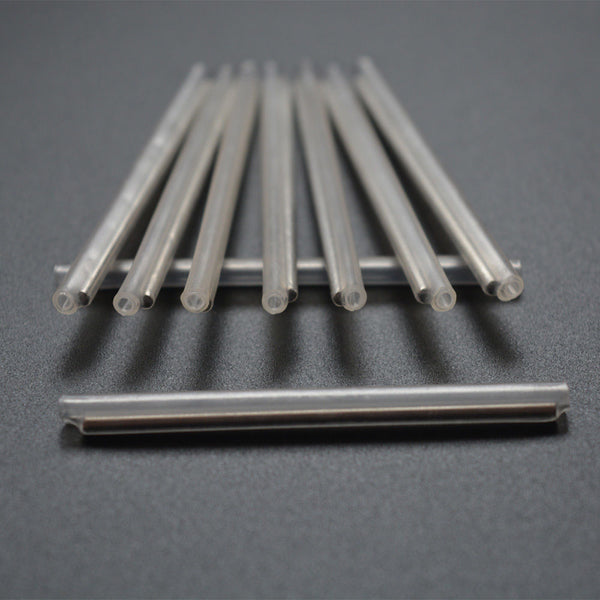

1000pcs Diameter 2.4mm Long 60mm Fiber Optic Fusion Splice Protector Protection Sleeves Clear

Product specifications
Outer diameter after recovery: OD2.4 mm +/- 0,1mm
Hole diameter before recovery: OD1,5 mm
Pin diameter: OD 1.0 mm
Minimum installation temperature: 110 DegC
Max installation time: 60 seconds
Standard color: Clear
Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
RoHS compliant
Packing: 100 pcs per bag (Others for special order)

Product features
Keep optical transmission performance of optical fiber
Provide safe protection to optical fiber splicing
Airproof configuration keeping the splice point's good resistance of humidity and temperature
Clear sleeve make it easy to detect splice before shrinkage
Easily use and avoid any damages to the optical fiber during installation
Operating temperature ranging from -45 DegC to 100 DegC
Minimum fully recovery temperature : 120 DegC
Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
Hot melt adhesive tube made from polyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tube to effectively encapsulate fusion splice.
Long term proven performance, exceeds industry standards with satisfied customer

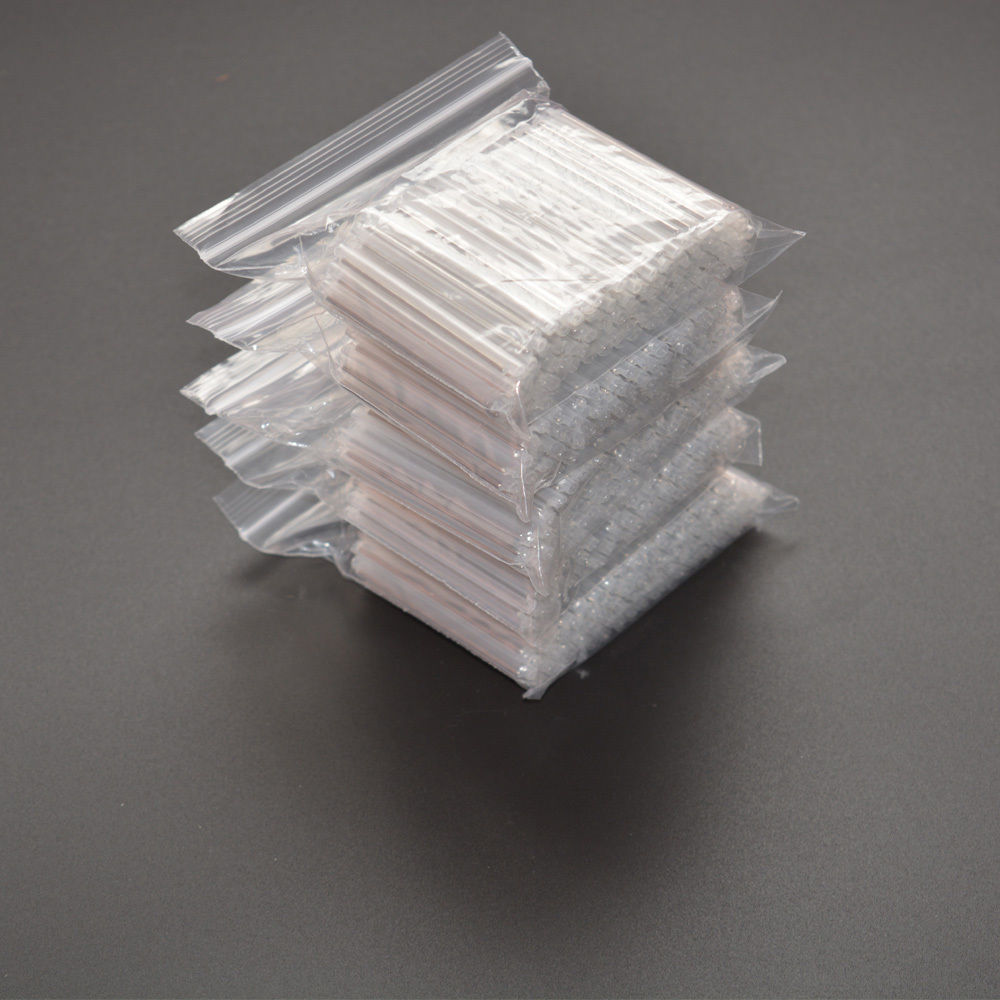

Packing:
1000pcs x Fiber optic fusion splice protector
