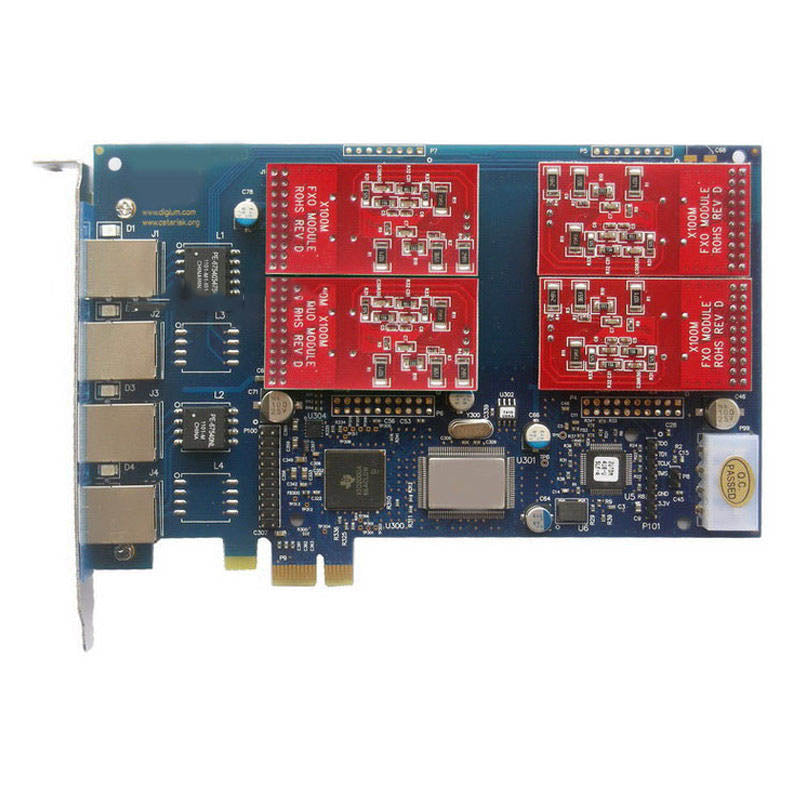

AEX410 4FXO Asterisk PCI Express PCIE Card for Elastix Trixbox VoIP PBX System
AEX410 is a PCI-Express compliant analog card with 4 ports FXO/FXS, It can be used to build a SOHO telephony solution or SMB telephony environments capable for satisfying with the needs of business applications that can supports Voicemail/Conference system based on Asterisk Open Source platform.
This AEX410 card bound with 4FXO modules onboard
Key benefits
--Application for Small Office Home Office (SOHO) applications
-- Application for Small and medium business(SMB) telephony solution
-- Application for Gateway Termination to Analog Telephones/Lines
-- Add Inexpensive Analog Phones to Existing PBXs
--Application for channel Bank Replacement/Alternative
Key features
--Support Asterisk/ Elastix /Trixbox / Freepbx
--Support Zaptel / Dahdi driver
--Support Industry Standard: PCI Express slot
--Support up to 4 fxo/fxs analog ports
--Suitable for SOHO PBX / VoiceMail / IVR/ Conference
--Caller ID and Call waiting Caller ID
--Loopstart signaling support
--RJ11 Connector
Specification:
1)Configuration
--Motherboard: AEX410
--Single FXO module FXO_100: 4 pieces
--Single FXS module FXS_100 : 0 pieces
2)Interface
--PCI-express 1.0 compliant slot
--RJ11 Connector
3)Hardware and Software Requirements:
--CPU 800+ MHZ
--RAM >=128MB
--Linux kernel 2.4.X or 2.6.X
4)Dimensions
--Size(mm) 165*106*172
Use guide
FXO modules are used to plug existing analog telephone lines into your phone system and FXS modules are used to plug existing analog telephone.
Elastix Hardware Detector
# Dahdi_genfonf
#Dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
dahdi show channels
Chan Extension Context Language MOH Interpret Blocked State
pseudo default en default In Service
1 from-pstn en default In Service
2 from-pstn en default In Service
3 from-pstn en default In Service
4 from-pstn en default In Service
Package:
AEX410 4FXO Asterisk PCI Express PCI-e PCIE Card x 1 pc
