DC 400W CNC Spindle Motor ER11 Mach3 Pwm Speed controller Mount Engraving Set

Good Quality
100% Brand New
Durable
DC 12-48 400W Cnc Spindle Motor Er11 With Mach3 Pwm Speedcontroller And Mount Engraving Set
Description
This item is a 0.4KW spindle motor with Mach3 PWM speed controller and Mount bracket / screws. It applies to DC12-60V low voltage permanent magnet brushed DC motorSpindle Motor:
Work voltage: 12-48VDC
Rotation speed: 3000-12000r/min
Power: 400W
Torque: 500mN.m
Insulation resistance: >2Megohm
Dielectric strength: 400V
Motor Length: 186mm.
Diameter: 52mm
Axis collet Length: 48mm
Diameter of Axis collect holder: 16mm
Repeat accuracy: 0.01-0.03mm
ER11 collect: 3.175mm.
Wide voltage PWM DC brush motor speed controller ( support mach3)
Applies to DC12-60V low voltage permanent magnet brushed DC motor
Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)Control mode
A: Default potentiometer control (5K-100K),defaults 10K
B: MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control.
Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift)
Soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable
Control power: 12V 120W, 24V 240W, 36V 360W, 48V 480W, 60V 600W
Dimensions: Length 75mm * Width 75mm * high 42mm
Pulse width modulation range: 0% -100%
Note: When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode)
What's in the box:

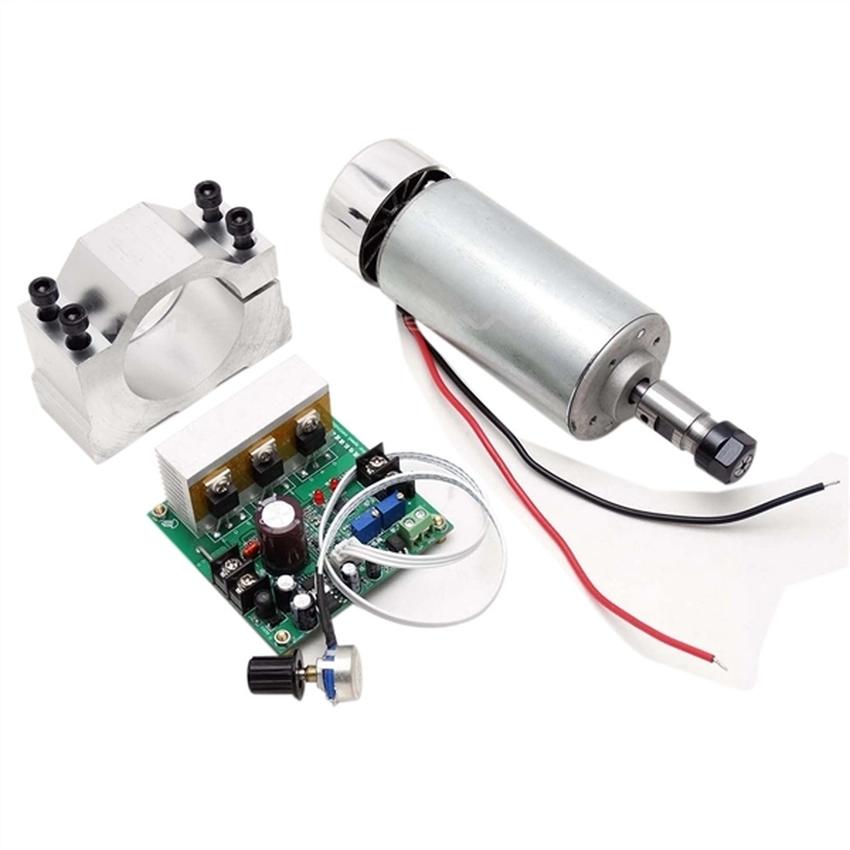

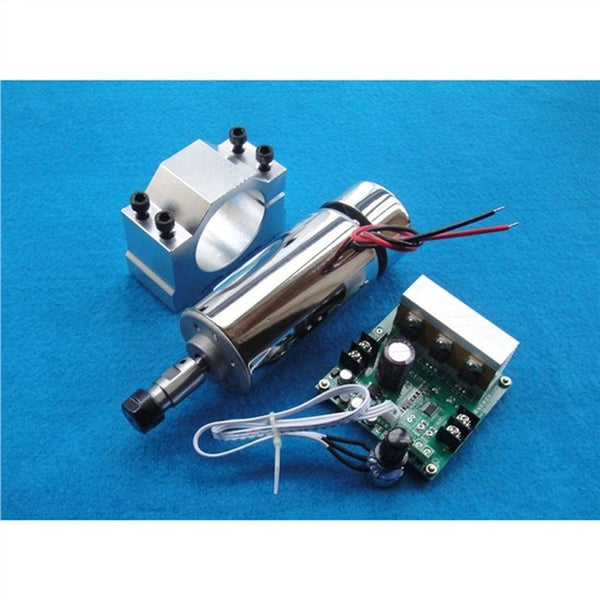

1 x 0.4KW spindle motor with with ER11 3.175 collet 1 * Mach3 PWM speed controller 1 Mount bracket with screws
