DIY Mechanical Control Robot Arm Claw Clamp Holder Gripper Grip Servo Controller

Robot Claw Clamp Holder Gripper Aluminum Alloy Arm with Servo & Servo Tester for Arduino DIY Assembled
Specification:

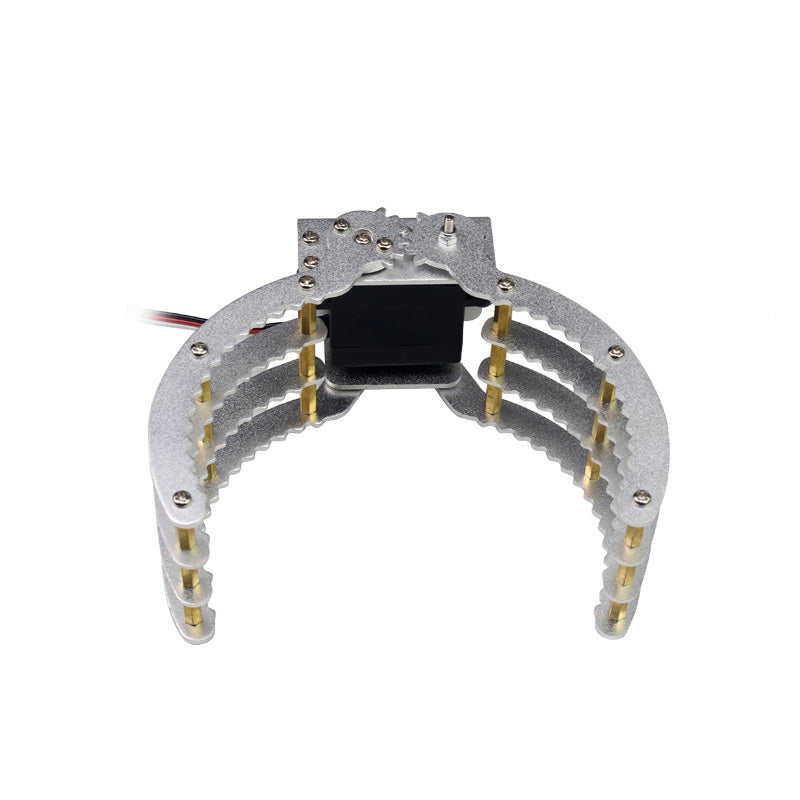

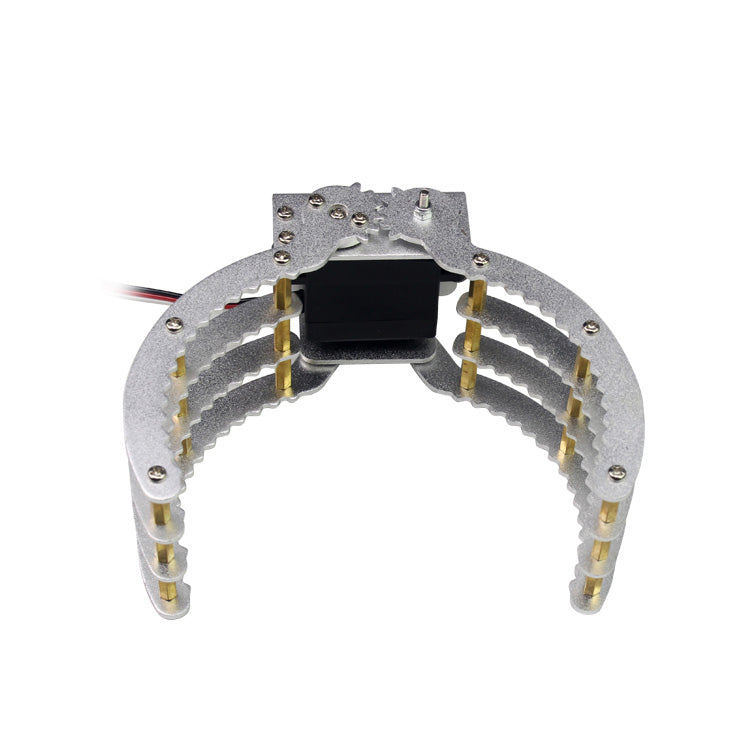

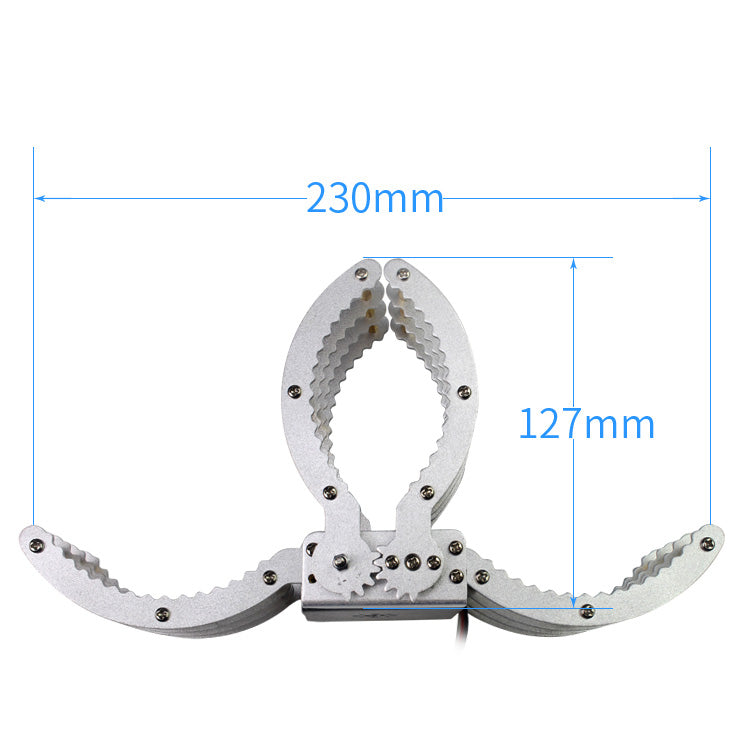

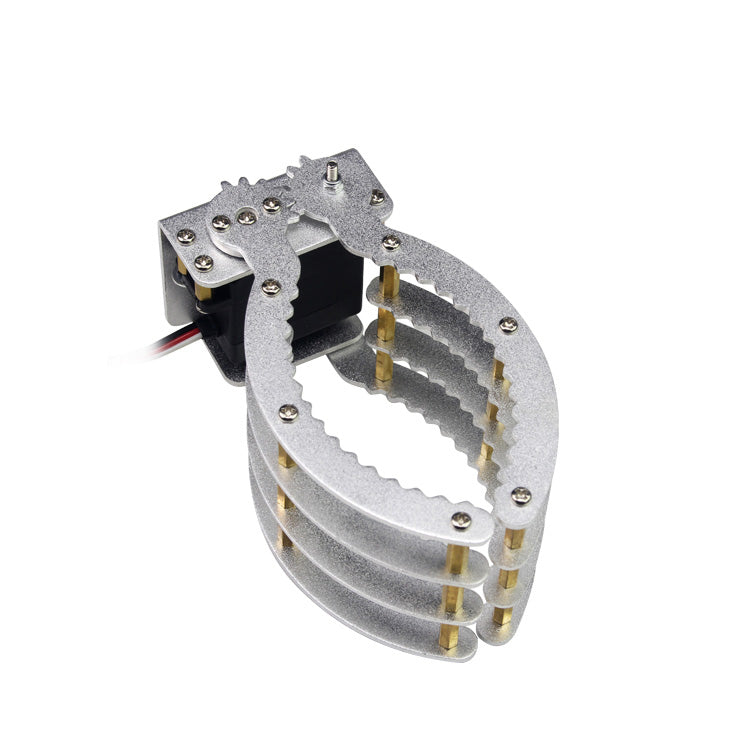

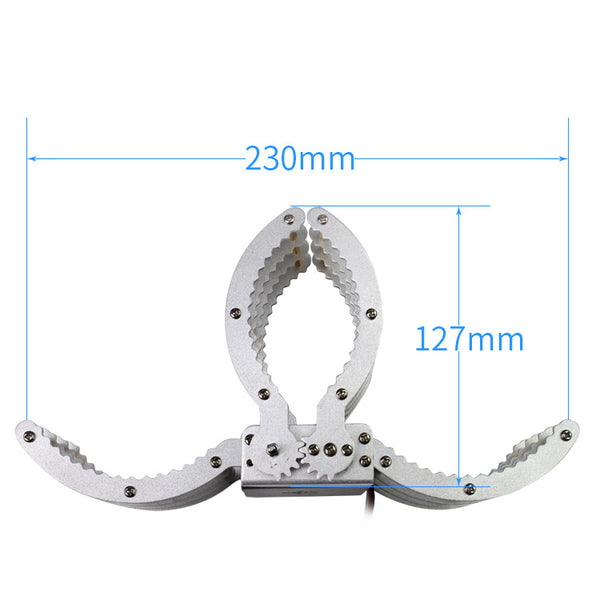

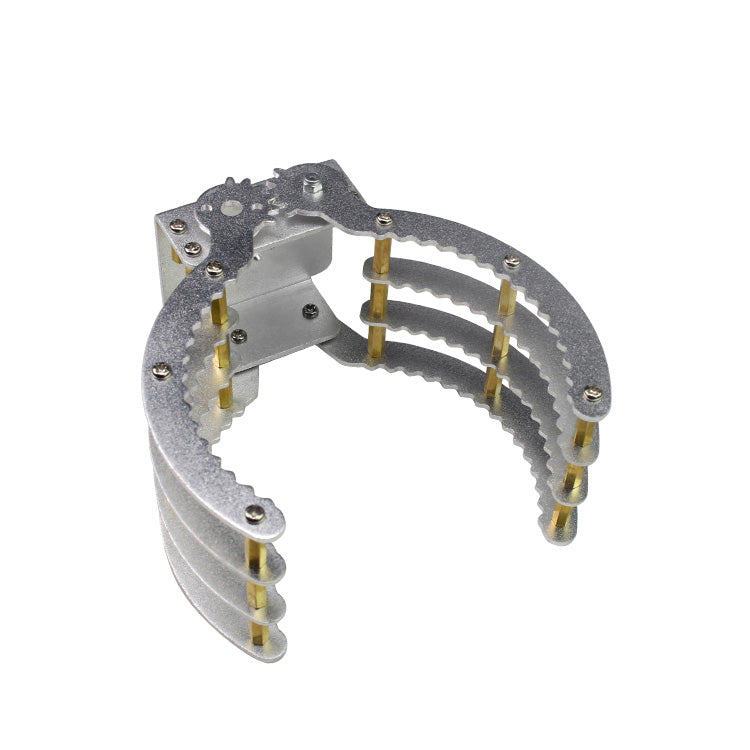

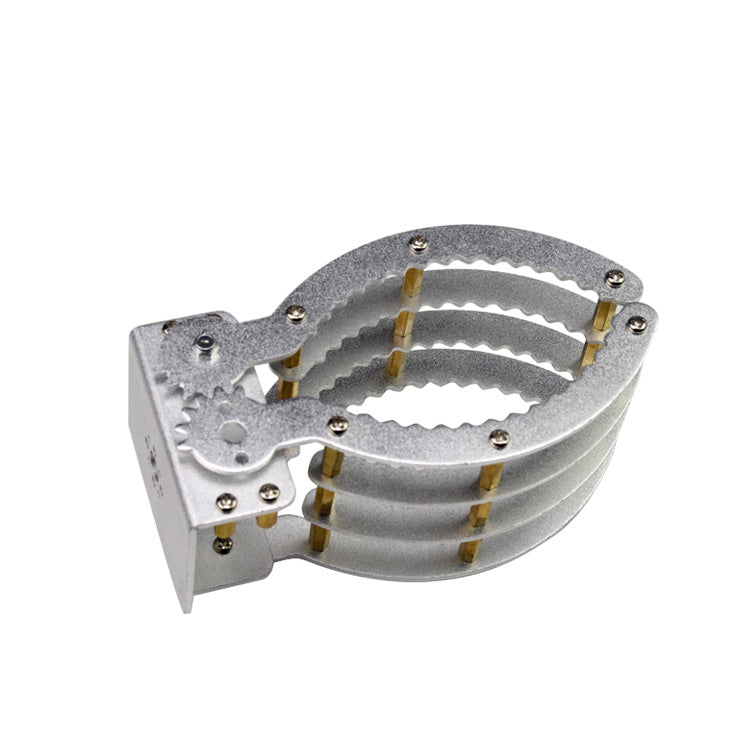

- Robot Claw/ Clamp Holder / Gripper
- Material: Hard aluminum alloy + copper pillar
- Weight: 123g
- Servo: LDX-335MG
- Servo torque: 19KG.cm
- Already assembled
Features:
- The inner edge of the claw like wave, more stable when clamping
- Symmetric clamping, convenient to determine the location
- M2 and M3 hole position at the end of the claw
- For DIY

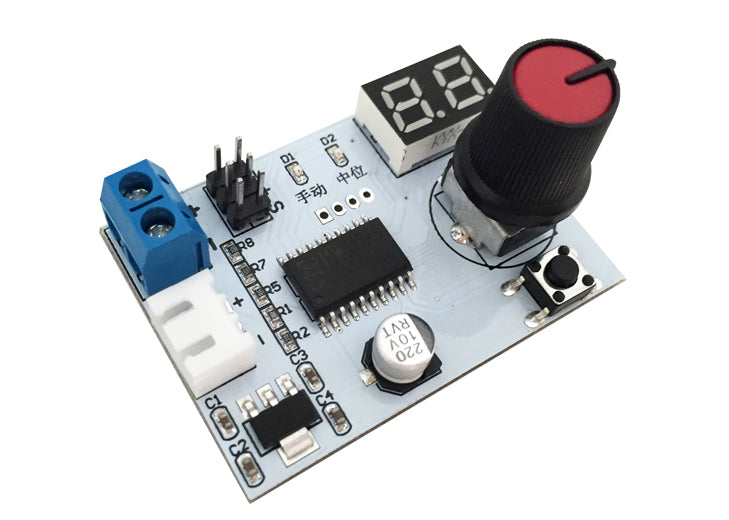

Servo tester Parameter:
- Width*Length: 35*50mm
- Weight: 13.8g
Wiring method: (Either of the following way is ok)
- 7.4V lithium battery charging terminal can be directly inserted in the white terminal;
- Connect the power supply to the blue terminal , the positive voltage can be 5~8.4V .
Usage method:
- Connect the power supply to the board;
- Connect the servo to the servo interface. "+"is positive, "-" is negative, "S" is the signal terminal;
- Turning the knob, the servo will rotate synchronously;
- There is an elastic button under the knob which can switch mode;
Package List:
- 1 x Robot Claw
