Remote Control Portable -OXYGEN-Concentrator Generator Health Care 220V

Feature:

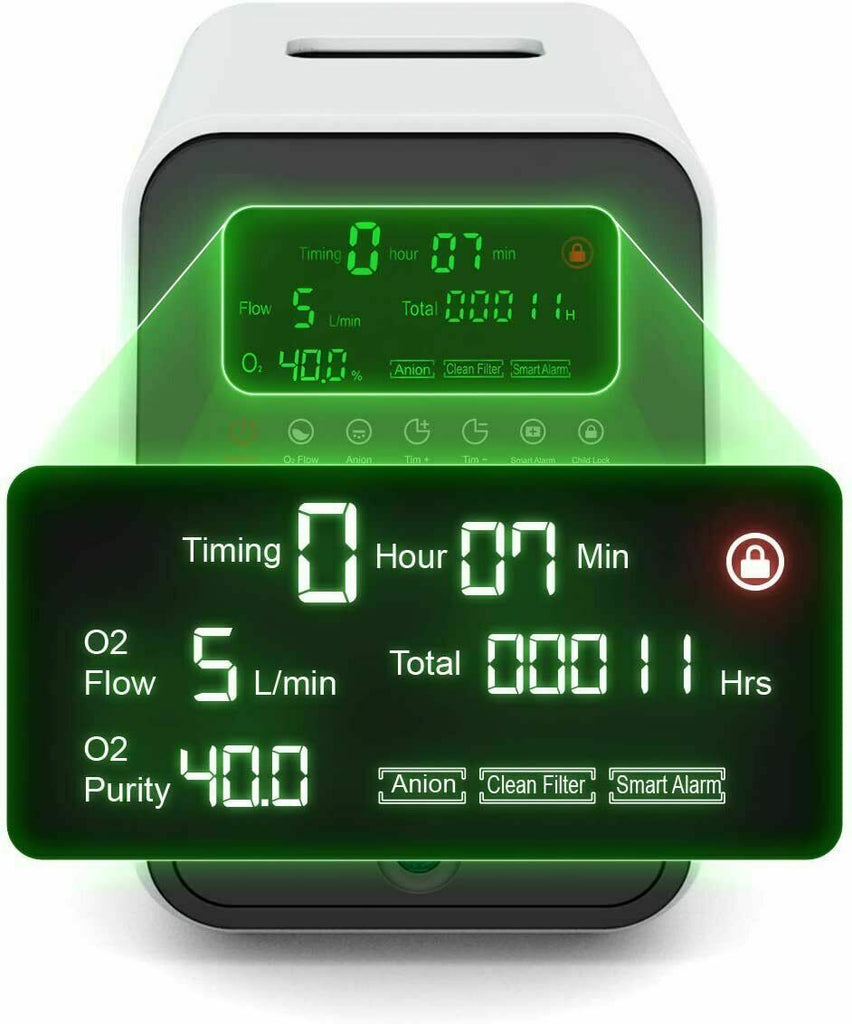

Portable, Digital Display, Remote Control, Smart Sensor

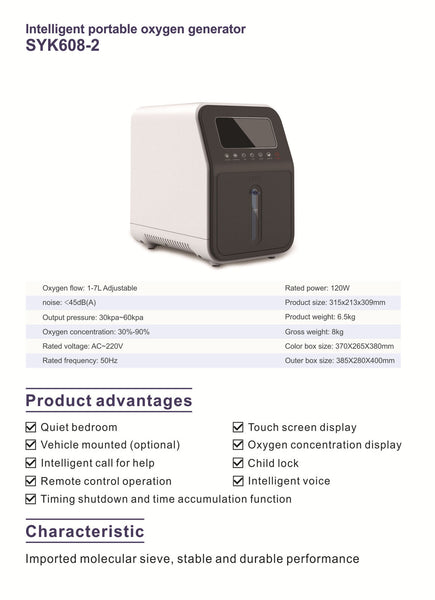

Specifications:
Normal Operating Condition:

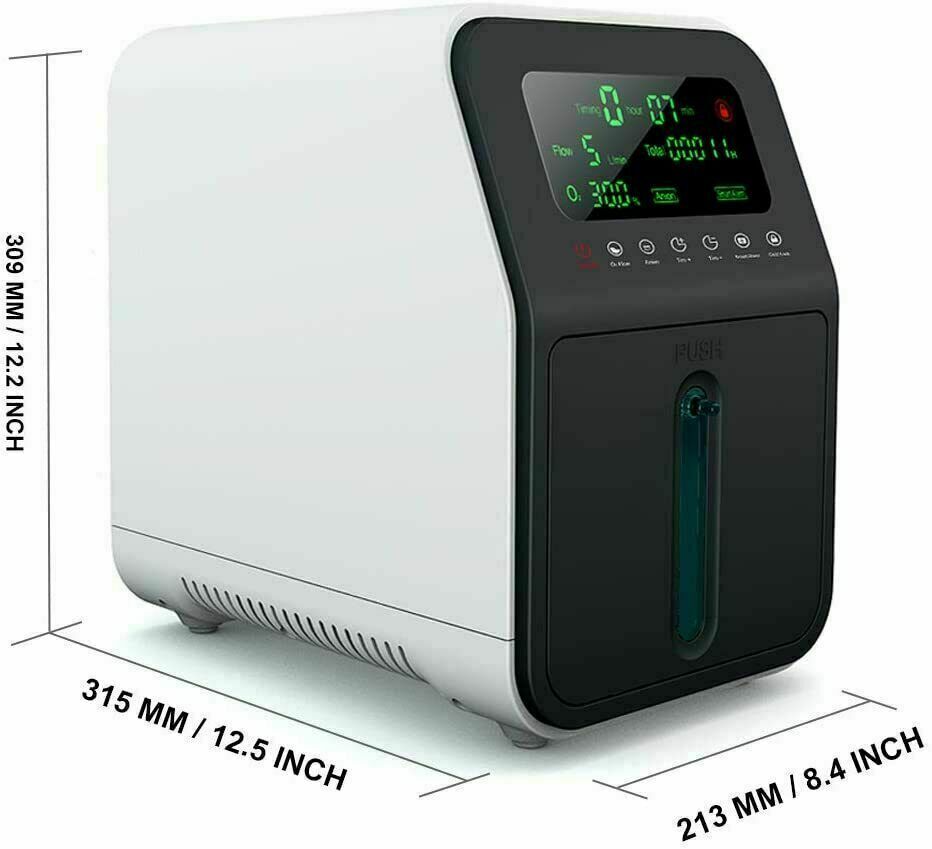

Dimension:12.5X8.4X12.2 (in)
Environment temperature: 0-40 DegC
Atmospheric pressure range: 96-106kpa
Air Volume:51-150 cube meter /h
Concentration(%): 1-7L/min / 40%~90% (+/-5%)
Working Noise: < 45dB
Working Environment : No Corrosive Gas
Product Net weight: 6.5kg
Size: 39*28.5*40.5CM/15.35*11.22*15.9 Inch
Rated Power(W): 120W
Applied Voltage: AC220V / 110V
Daily Maintenance:
Remove the humidification cup, the water is poured out of the cup, and dry it and put it back.
Turn on the Oxygen Concentrator and let it run for 25 minutes, then wait for it to cool naturally.
Turn off the power, Put the family oxygen bar in the box.
Please note that the battery cannot be installed in the remote control during storage.

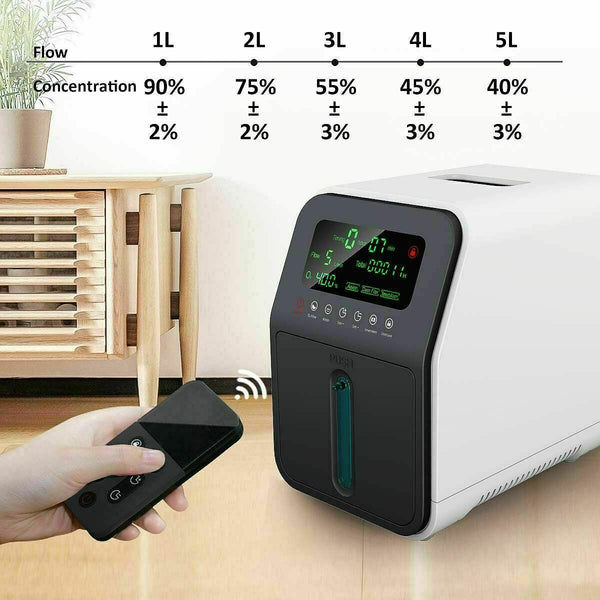

1-7L/min Adjustable Continuous Flow
L ~ 90% +/- 5 Concentration
2L ~ 75% +/-5 Concentration
3L ~ 55% +/-5 Concentration
4L ~ 45% +/-5 Concentration
5L ~ 40% +/-5 Concentration
Potential Users
The elderly
White-collar
Pregnant women
Students
Plateau tourism lovers
Q&A Session
Q1: What kind of water does the household oxygen generator use?
A1: The water added to the water tank should preferably be pure water without minerals or distilled water.
Q2: How much water should be added?
A2: The water volume cannot exceed the Max scale line.
Q3: How often do I change the water?
A2: If you set a large flow rate, the water in the water tank will be used very quickly. It is recommended to change the water every two hours.
Q4: Can I set the timing? Can it be used continuously for more than 8 hours? How to set it up?

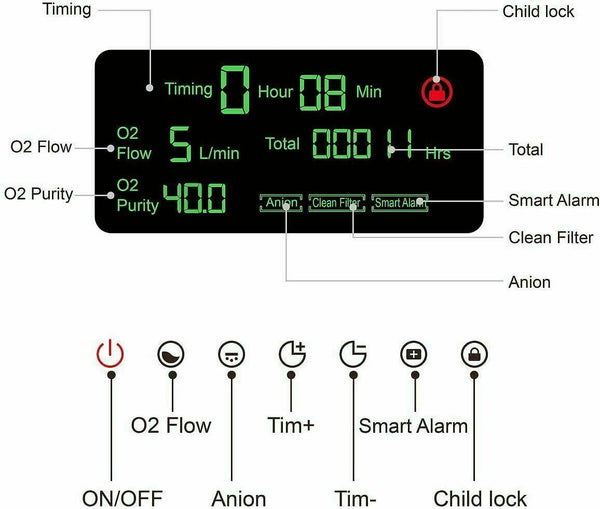

A4: It can be timed for 2 hours. If you don't want to set the time, you can press "Tim-" to subtract the set time or restart the oxygen generator for continuous use.
Q5: How often does the white filter plug on the back of the oxygen generator need to be replaced?
A5: After washing and drying, it can be reused.
Q6: How to clean the nasal oxygen inhaler?
A6: Every time you use the nasal oxygen inhaler, you should clean, clean and disinfect the nasal inhaler. It can be immersed in a 5% potassium permanganate solution for 5 minutes, and then washed with water or wiped with alcohol.
Q7: How often should the oxygen tube be replaced?
A7: It is recommended to replace the oxygen tube once a year (the inside of the oxygen tube should be kept dry)
Q8: If I need to replace an accessory or one of my accessories is broken, where can I buy it?
A8: Nasal oxygen inhaler/oxygen tube can be purchased on Amazon, or you can let me know, we will send you a new set.
Q9: Can this oxygen concentrator treat some symptoms?
Q9: This is an auxiliary household equipment, non-hospital type oxygen generator, only suitable for daily health care. It is not recommended for people with serious illnesses or people who rely on medical oxygen to sustain their lives.

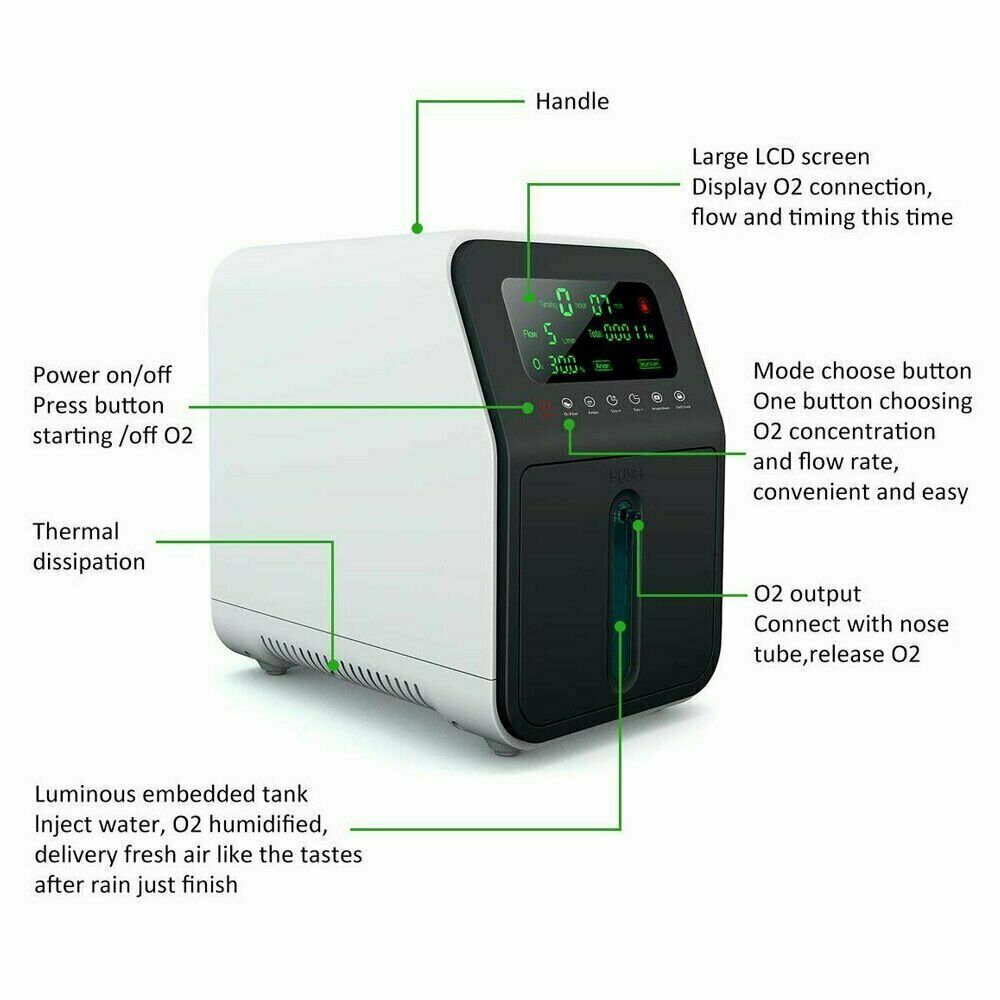

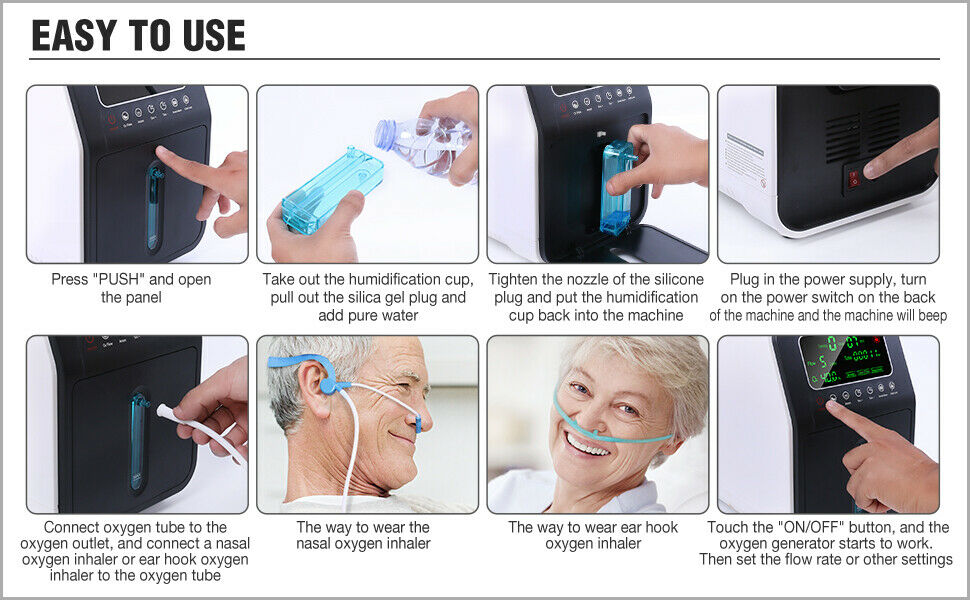

How to use it?

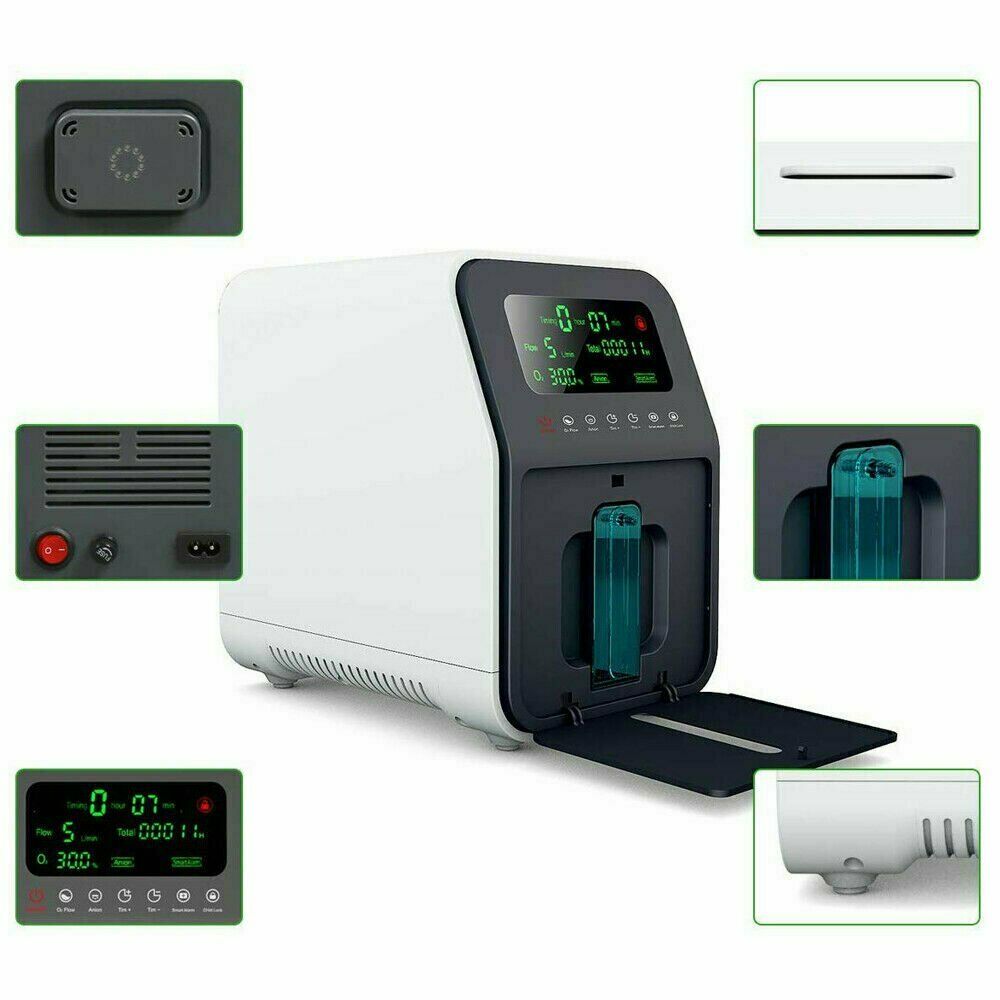

1. Press "PUSH" and open the panel
2. Take out the humidification cup, pull out the silica gel plug and add pure water. The water cannot exceed the maximum water level.
3. Tighten the silicone plug on the nozzle, put the humidification cup back in the machine, and press to cover the panel.
4. Plug in the power supply, turn on the power switch on the back of the machine and the machine will "beep".
5. Connect an oxygen tube to the oxygen outlet, and connect a nasal oxygen inhaler or ear hook oxygen inhaler to the oxygen tube
6. How to wear the nasal oxygen inhaler
7. How to wear ear hook oxygen inhaler
8. Touch the "on/off" button, the oxygen generator starts to work.
9. Then set the flow rate or other settings.

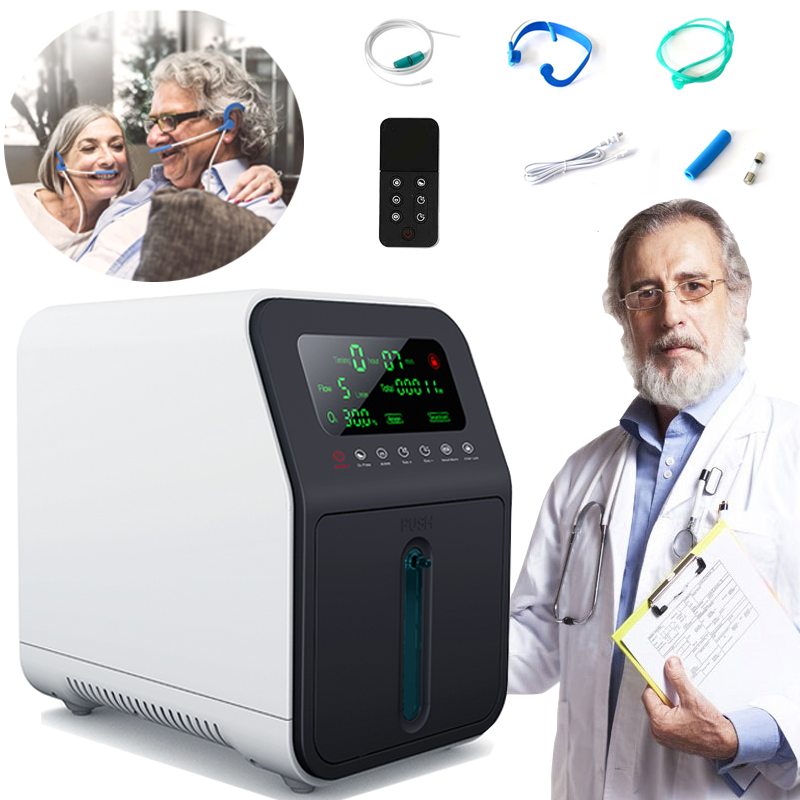

Package:
OXYGEN Generator x 1 pc
The Power plug depends on the delivery country.
